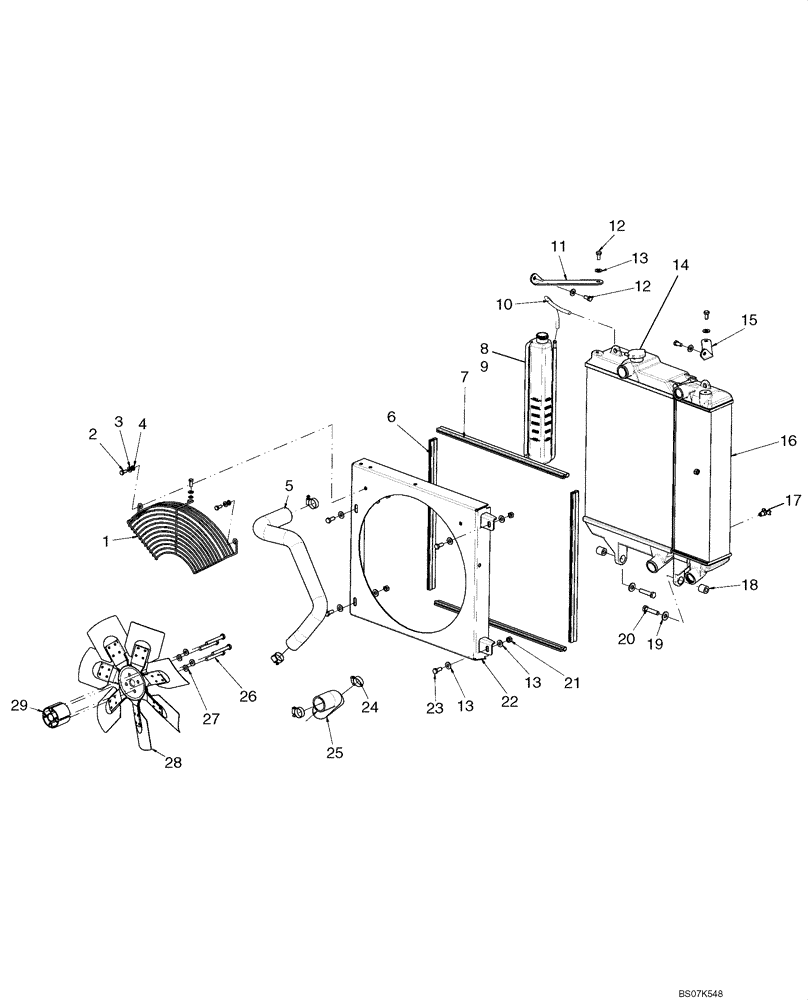

Запчасти Case IH 445CT (02-01) - FAN, RADIATOR/OIL COOLER - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

87594970

GUARD

Fan Guard

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

5

87661381

RADIATOR HOSE,38.10 mm ID, 45.00 mm ID x 370.00 mm

Upper

1шт.

6

87648128

RUBBER SEAL,562mm L

Bulb Seal, 562mm (22 1/8 in.)

2шт.

7

87578980

RUBBER SEAL,590mm L

Bulb Seal, 590mm (23 1/4 in.)

2шт.

8

87020980

BOTTLE,2L

Coolant Bottle; Incl 9

1шт.

9

257884A1

CAP

Cap

1шт.

10

87534725

HOSE,7.9mm ID x 400mm L, SAE 20R3

Coolant Recovery

1шт.

11

87706223

BRACKET

Upper Radiator Mount, RH; Replaces 87651802

1шт.

12

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

13

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

12шт.

14

87687375

RADIATOR CAP

Radiator Cap

1шт.

15

87706238

BRACKET

Upper Radiator Mount, LH; Replaces 87651805

1шт.

16

87660842

RADIATOR

Radiator And Oil Cooler Module; See Fig 02-02

1шт.

17

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

18

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

2шт.

19

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

Washer, 13.5 X 30 X 2.5mm; No Longer Used, Order 86625254

2шт.

19

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

2шт.

20

87021825

BOLT,Hex, M12 x 55mm, Cl 10.9

2шт.

21

100016

NUT,M10 x 1.5, Cl 8

4шт.

22

87715902

SHROUD

Fan Shroud; Use With 480mm (18 7/8 in.) Dia Fan; Replaces 87660830

1шт.

22

87720222

SHROUD

Fan Shroud; Use With 518mm (20 3/8 in.) Dia Fan; Models With High Flow

1шт.

23

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

24

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

25

87661382

RADIATOR HOSE,46.00 mm ID x 263.30 mm, SAE 20R4 Class D1 Or D2

Lower

1шт.

26

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

Used With 87565746 Fan Spacer

4шт.

26

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

Used With 87708428 Fan Spacer, Europe

4шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

28

87025470

FAN

480 mm (18 29/32 in.) Dia.; If Used

1шт.

28

87737293

FAN,7 Blades, 480mm OD

480 mm (18 29/32 in.) Dia.; If Used

1шт.

28

87680032

FAN,6 Blades, 517.9mm OD

518 mm (20 3/8 in.) Dia.; 24 Degree; Models With High Flow

1шт.

29

87565746

SPACER

Fan Spacer, 60mm (2 3/8 in.)

1шт.

29

87708428

SPACER

Fan Spacer, Europe, 80mm (3 5/32 in.)

1шт.
