(03-01A) - FUEL LINES WITH HOSE CLAMPS AT FUEL FILTER; IF USED

Запчасти Case IH 445CT (03-01A) - FUEL LINES WITH HOSE CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM

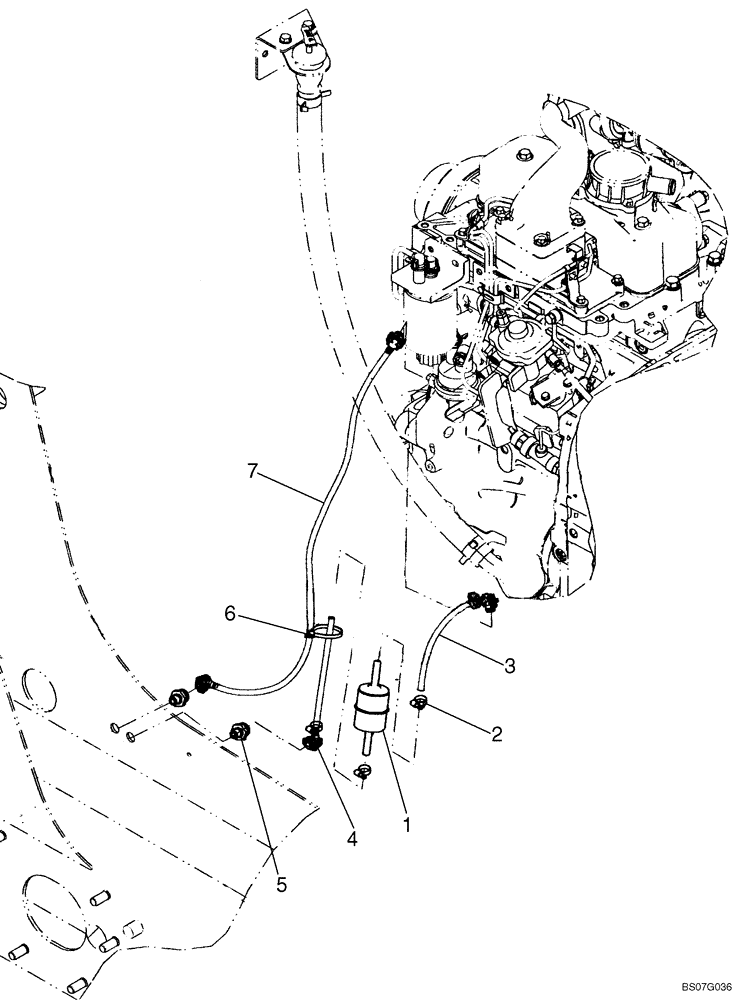

Схема запчастей Case IH 445CT - (03-01A) - FUEL LINES WITH HOSE CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM
1
6
4
7
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D139225

FILTER, FUEL

Inline

1шт.

2

86625041

HOSE CLAMP,11.2mm - 19.8mm

4шт.

3

86516356

FUEL HOSE,0.38" ID, SAE 30R7

2 ft. Required

1шт.

4

87414560

90 ELBOW

2шт.

5

87431323

ADAPTER

1шт.

6

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

7

87018092

FUEL TUBE,8mm ID x 675mm L

1шт.
