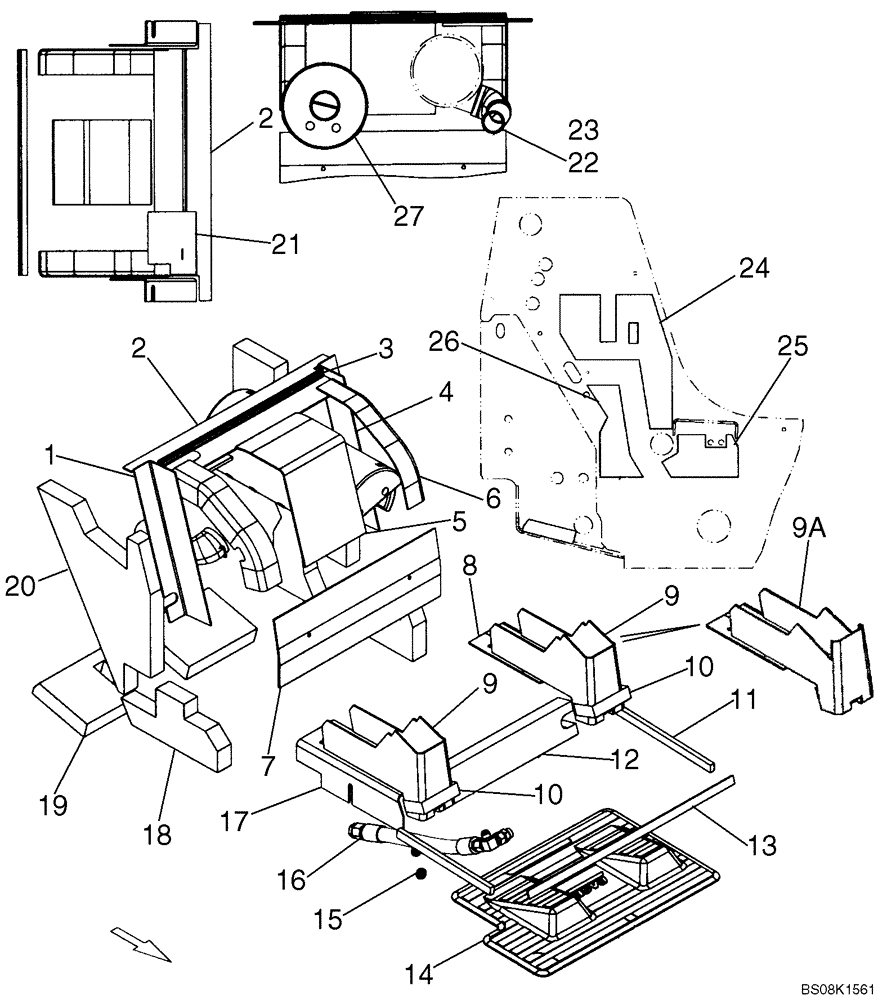

Запчасти Case IH 445CT (09-16) - NOISE CONTROL, NORTH AMERICAN; IF USED (09) - CHASSIS

1

309702A1

SHEET

Right Hand Extension

1шт.

2

309701A1

SHEET

Hood Extension; If Used

1шт.

3

315083A1

SEALING STRIP

Rear Window Frame

1шт.

4

309703A1

SHEET

Left Hand Extension

1шт.

5

318165A1

INSULATOR

Sound Dampening, Upper

1шт.

6

309011A1

SHEET

Upper Corner

2шт.

7

318166A1

INSULATOR

Sound Dampening, Lower

1шт.

8

308877A1

PAD

Left Hand Console Barrier

1шт.

9

308917A1

PAD

Console; If Used

2шт.

9a

87723375

CONSOLE

Console; If Used

2шт.

10

295007A1

SEAL

Console

2шт.

11

313149A1

SEAL

Side Screen; If Used

2шт.

11

87036371

SEAL

Side Screen; If Used

2шт.

12

87444364

PAD

Sound

1шт.

13

313150A1

SEAL

ROPS Toe Guard; If Used

1шт.

13

87036372

SEALING STRIP

ROPS Toe Guard; If Used

1шт.

14

87461562

FLOOR MAT

1шт.

15

313231A1

BAND

Cable Seal; If Used

2шт.

16

REF

INSTRUCTION

See Figure 06-01A

1шт.

17

308877A1

PAD

Right Hand Console Barrier

1шт.

18

87444366

PAD

Sound

1шт.

19

87458621

PAD

Sound

1шт.

20

87444365

PAD

Sound

1шт.

21

311222A1

LARGE PLATE

PLATE, LARGE Loader Lock Barrier

1шт.

22

86633353

HOSE CLAMP,70mm - 92mm

1шт.

24

87444361

PAD

Sound; If Used

1шт.

25

87444363

PAD

Sound

1шт.

26

87444362

PAD

Sound

1шт.

27

87369267

GUARD

Muffler Wrap

1шт.

27

87541360

MUFFLER

Muffler Wrap; Replaces 87369267; If Used

1шт.

27

87588078

FOAM

Muffler Wrap; Secure With (9) 87393399 Twist Ties; If Used

1шт.

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push-In

20шт.

87393399

SPRING

Twist Ties

9шт.

87541413

SERVICE KIT

Incl. 1 - 10, 12, 14 - 27, 787393399 And 06- 01A Ref 3 - 7 And Instructions

1шт.

87541414

SERVICE KIT

Incl. 1 - 27, 348452A1, 87393399 And 06- 01A Ref 3 - 7 And Instructions

1шт.
