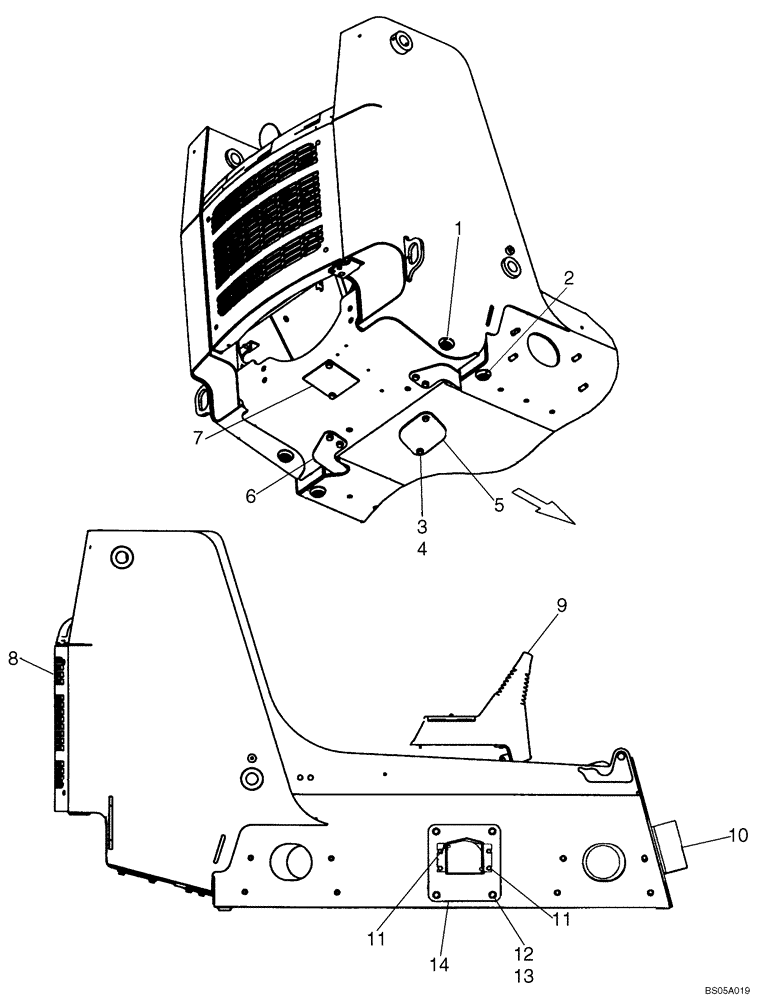

Запчасти Case IH 445CT (09-09A) - CHASSIS (445CT) (09) - CHASSIS

1

87432221

PLUG

2шт.

2

86625135

PLUG,1" - 11-1/2 NPT

2шт.

3

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

10шт.

4

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

12шт.

5

247609A1

COVER

2шт.

6

189422A1

COVER

Plate

2шт.

7

H436914

LARGE PLATE

PLATE, LARGE

1шт.

8

REF

INSTRUCTION

Rear Door; See Figure 09-15

1шт.

9

192654A2

BELLOWS

2шт.

9

87577502

RUBBER PAD

Used With Handles On 04-15B, 04-16B

2шт.

10

REF

INSTRUCTION

Frame; See Figure 09-08A, Ref 1

1шт.

11

9840344

BOLT,Hex, 5/16" - 18 x 11/16"

Sealing Screw

12шт.

12

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

M12 x 30

8шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

14

87459921

COVER PLATE

Center Cover Plate

2шт.

15

254799A1

STUD

M16 x 45; Axle Studs

16шт.
