Запчасти Case IH 440CT (02-38) - THERMOSTAT - ENGINE COOLING SYSTEM (02) - ENGINE

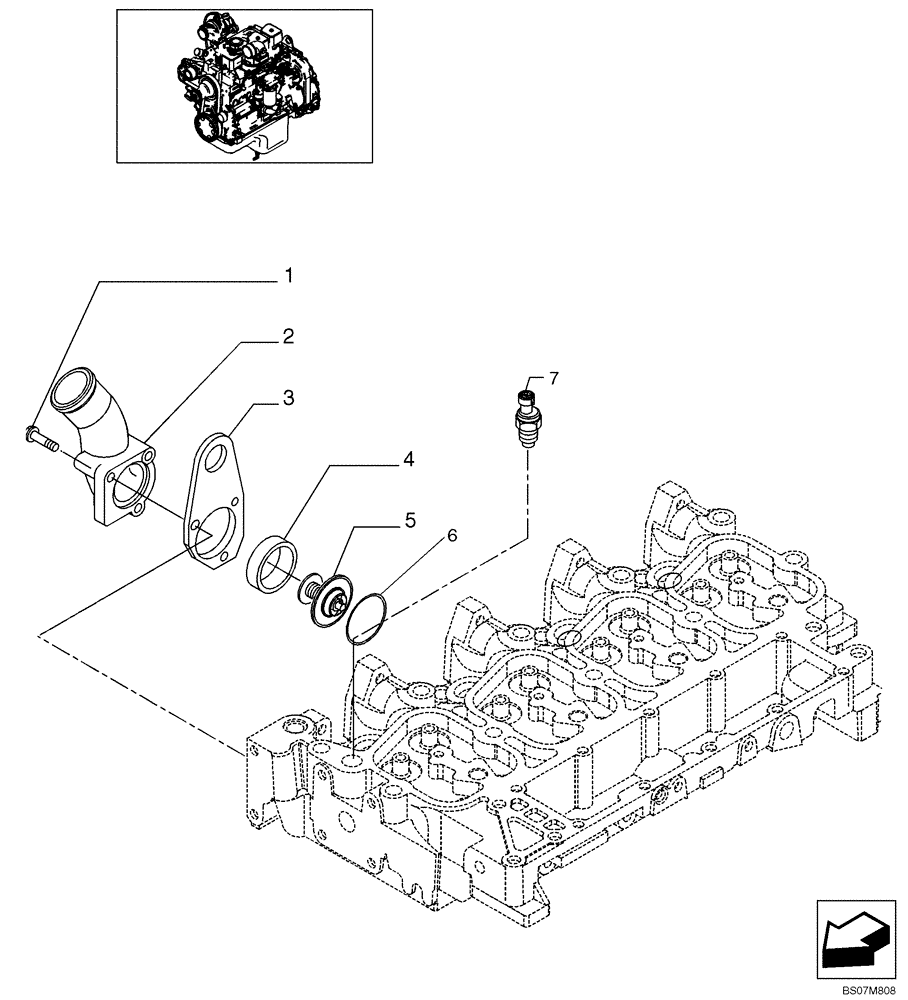

Схема запчастей Case IH 440CT - (02-38) - THERMOSTAT - ENGINE COOLING SYSTEM (02) - ENGINE
1
6
5
3
7
4
2

Артикул

Название

Примечание

Количество

1

2852155

BOLT,Flng, M8 x 1.25 x 80mm

3шт.

2

2856455

MANIFOLD

1шт.

3

2853132

LIFTING EYE

1шт.

4

2853133

GASKET,51.5mm ID x 61.5mm OD x 16.5mm Thk

1шт.

5

2856541

THERMOSTAT

Includes: Ref. 6

1шт.

6

2852473

GASKET,53.62mm ID x 59.72mm OD x 4.01mm Thk

1шт.

7

2856350

SENSOR

Water

1шт.

8

4895078

PIPE PLUG,1/2"-14

1шт.

Not Illustrated

1шт.

Выбрано товаров: 9
