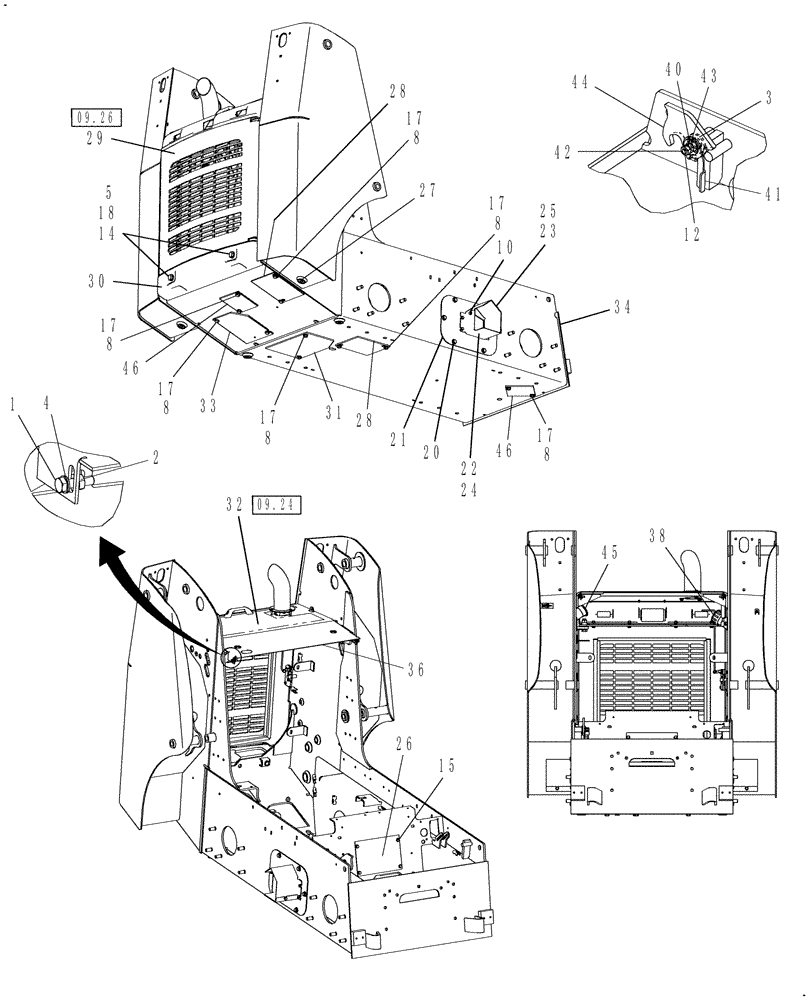

Запчасти Case IH 440CT (09-18) - CHASSIS (440CT) (09) - CHASSIS

1

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

2

43362

NUT,M8 x 1.25, Cl 10

2шт.

3

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

4

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

4шт.

5

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

2шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

7

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

1шт.

8

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

12шт.

9

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

1шт.

10

9840344

BOLT,Hex, 5/16" - 18 x 11/16"

12шт.

11

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

3шт.

12

86500689

NUT,M10 x 1.5, Cl 10

2шт.

13

86512555

NUT,M16 x 2, Cl 10

1шт.

14

86536985

NUT,M20 x 2.5, Cl 10

2шт.

15

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

4шт.

16

86625135

PLUG,1" - 11-1/2 NPT

2шт.

17

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

18

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

2шт.

19

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

20

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

21

87368774

COVER

2шт.

22

87368775

GUARD

Hose, Lower RH

1шт.

23

87368776

GUARD

Hose, Upper RH

1шт.

24

87368777

GUARD

Hose, Lower LH

1шт.

25

87368778

GUARD

Hose, Upper LH

1шт.

26

87430679

PLATE

1шт.

27

87432221

PLUG

Magnetic

2шт.

28

87458642

PLATE

Plumbing Access

2шт.

29

0C

ORDER COMPONENTS

Rear Door

1шт.

30

87626717

COUNTERWEIGHT

Bumper

1шт.

31

87648094

PLATE

Oil Drain

1шт.

32

0C

ORDER COMPONENTS

Hood

1шт.

33

87666074

COVER PLATE

Plumbing

1шт.

34

87617092

SERVICE KIT

Chassis

1шт.

35

87705430

FLOOR MAT

1шт.

36

87743317

HEAT SHIELD

Heat Shield

1шт.

37

248461A1

BUSHING,16.5mm ID x 24mm OD x 22mm L

Door Hinge

1шт.

38

257448A1

CAP

Hydraulic Fill

1шт.

39

248988A1

THRUST WASHER

Rear Door

1шт.

40

278332A1

SPRING WASHER

1шт.

41

294911A2

HOOK

Latch Return

1шт.

42

294943A1

STUD

1шт.

43

294967A1

WASHER

1шт.

44

390516A3

LATCH

ROPS

1шт.

45

H436887

CAP

Fuel

1шт.

46

H436914

LARGE PLATE

PLATE, LARGE

2шт.
