Запчасти Case IH 440CT (08-04) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

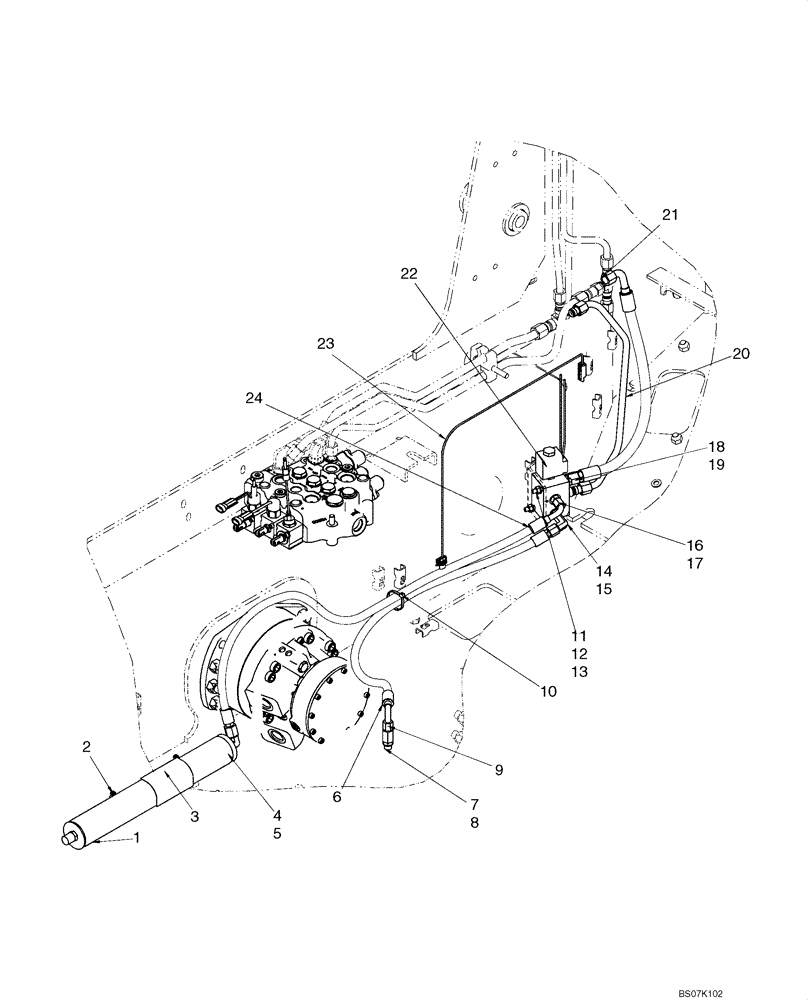

Схема запчастей Case IH 440CT - (08-04) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS
3
24
11
15
21
17
18
12
1
2
14
6
8
20
5
19
10
23
13
7
16
9
4
22

Артикул

Название

Примечание

Количество

87638304

SERVICE KIT

Kit, Ride Control; Incl 1 - 26

1шт.

1

87403797

ACCUMULATOR,275 Bar, 0.75L

Hydraulic Accumulator

1шт.

2

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

3

384260A1

WARNING DECAL,168mm x 88mm H

Pressurized System

1шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 5

1шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

87456974

HOSE ASSY.

970mm (38 3/16 in.)

1шт.

7

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 8

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

574342

CAP,9/16" - 18 JIC

1шт.

10

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

11

9706690

NUT,M8 x 1.25, Cl 8

2шт.

12

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

4шт.

13

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

14

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 15

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 17

1шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 19

2шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

20

87588929

HYD TUBE,9.4 mm ID x 12.7 mm OD

Valve To Cylinder Base

1шт.

21

87588930

HOSE,12.7mm ID x 550mm L

550mm (21 5/8 in.)

1шт.

22

87428444

VALVE

Solenoid Valve, Ride Control

1шт.

23

310838A1

HARNESS

Ride Control Harness

1шт.

24

87588928

HYDRAULIC HOSE,9.52 mm ID x 1200.00 mm

Valve to Accumulator

1шт.

25

304083A1

DECAL

Ride Control; Not Illustrated

2шт.

26

255927A1

WARNING DECAL

Warning, Ride Control; Not Illustrated

1шт.

Выбрано товаров: 27
