/ / / / / / / / (06-62[04]) - MOTOR ASSY - REXROTH 2 SPEED CTL DRIVE MOTOR PRIOR TO N8M483727 (440CT)

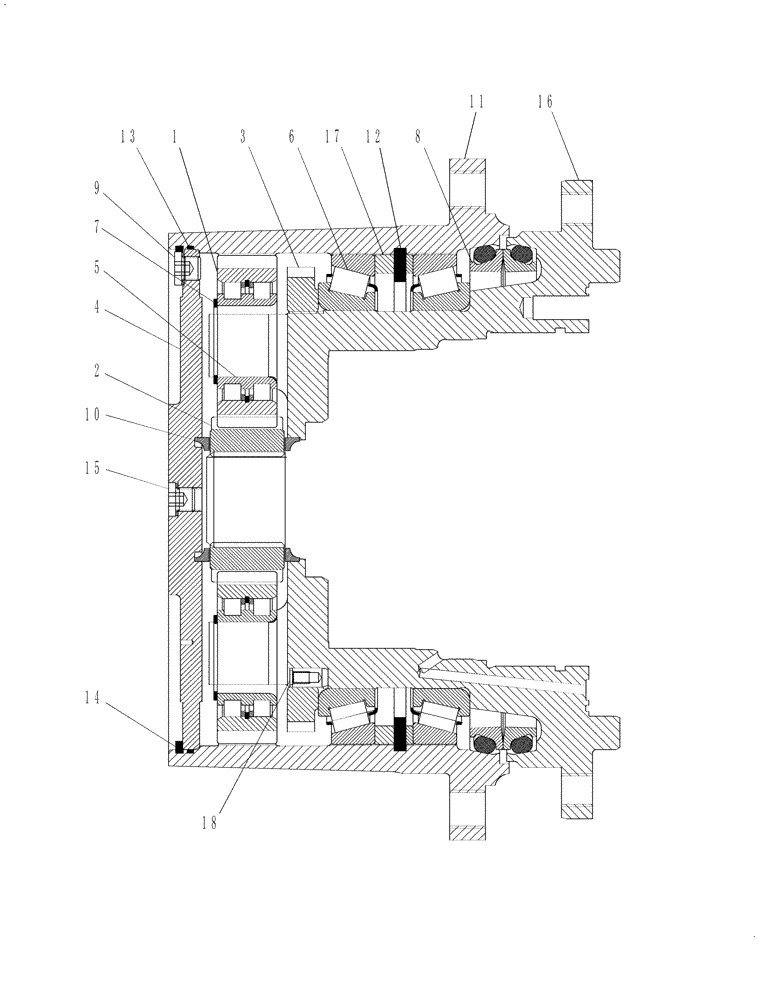

Запчасти Case IH 440CT (06-62[04]) - MOTOR ASSY - REXROTH 2 SPEED CTL DRIVE MOTOR PRIOR TO N8M483727 (440CT) (06) - POWER TRAIN
![Схема запчастей Case IH 440CT - (06-62[04]) - MOTOR ASSY - REXROTH 2 SPEED CTL DRIVE MOTOR PRIOR TO N8M483727 (440CT) (06) - POWER TRAIN](https://partsell.ru/storage/images/caseih/1334737.png)
17
2
12
13
8
4
3
7
6
16
15
1
5
18
11
14
9
10
1
84305307
PLANETARY GEAR
4шт.
2
84305308
SUN GEAR
1шт.
3
84305309
Bearing Adjust
NUT
1шт.
4
87612445
COVER
Track Motor
1шт.
5
84305310
DIN 5412
BEARING, ROLLER, CYL
4шт.
6
84305311
Planetary
TAPERED BEARING
2шт.
7
84305313
RING
Retaining Ext 30x1
4шт.
8
NSS
NOT SOLD SEPARAT
Face Seal
1шт.
9
87575213
PLUG
Drain, M10x1
2шт.
10
84305314
Sun Gear
THRUST WASHER
2шт.
11
84305315
Ring Gear
HOUSING
1шт.
12
84305316
RING
Retaining Int 205x5
1шт.
13
87612446
O-RING
O-Ring 210x3.00 Viton
1шт.
14
87575214
SNAP RING
Cover
1шт.
15
87579238
PLUG
M16x1.5
1шт.
16
84305500
Spindle, Planetary
HOUSING
1шт.
17
84305501
Bearing
SPACER
2шт.
18
84305502
STRAIGHT PIN
M8x16
2шт.
