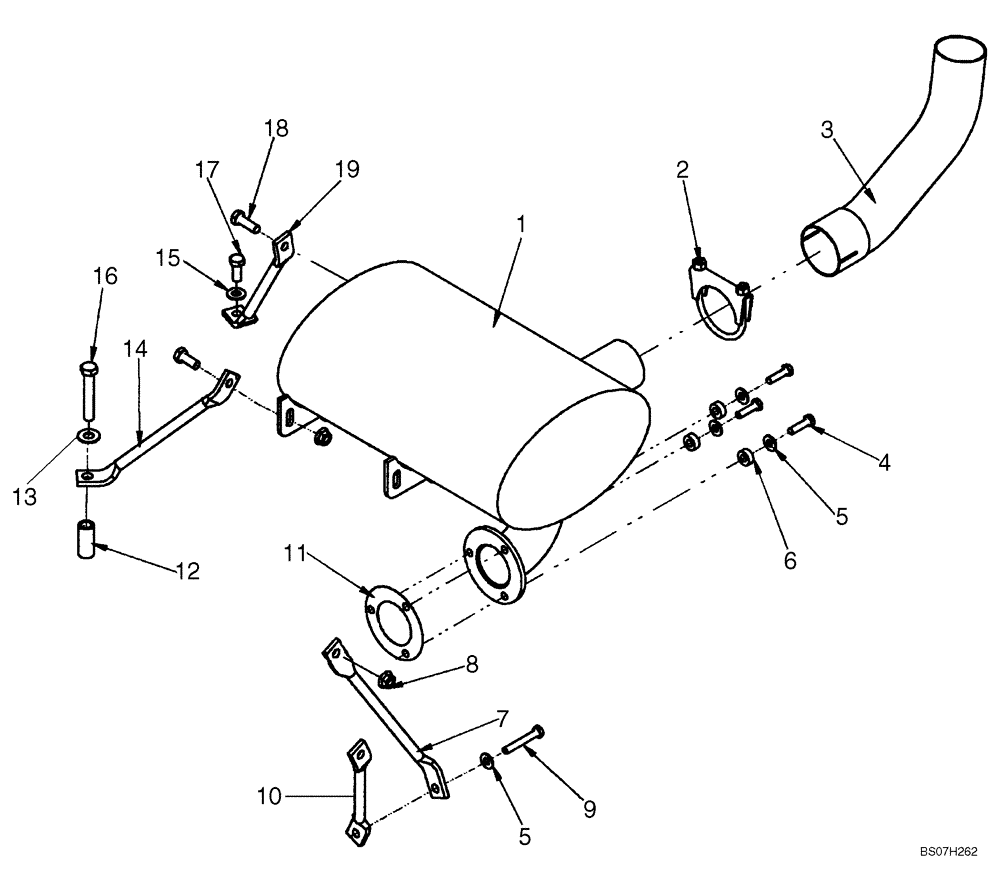

Запчасти Case IH 440CT (02-03) - EXHAUST SYSTEM (02) - ENGINE

1

87035578

MUFFLER

Muffler; Replaces 87572831

1шт.

1

87490249

MUFFLER

Muffler; Replaces 87035578

1шт.

2

87461995

CLAMP,68mm ID, Muffler

1шт.

3

87654919

EXHAUST SYSTEM PIPE

Tube, Exhaust

1шт.

4

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

6

86633393

SPACER

11/32 ID X 3/4 OD X 5/16 Thk; If Used

3шт.

7

87033361

ROD

Muffler Support

1шт.

8

411345A1

LOCK NUT

M10

3шт.

9

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

10

87029961

ROD

Muffler Support

1шт.

11

86606073

GASKET,0.4mm Thk

Muffler

1шт.

12

86608204

SPACER

1шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

14

87034631

ROD

Muffler Support

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

16

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

17

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

18

87034630

ROD

Muffler Support

1шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

20

87584781

MUFFLER

Muffler Wrap, Europe; Not Illustrated

1шт.

21

87393399

SPRING

Stainless Steel Tie; Not Illustrated

9шт.
