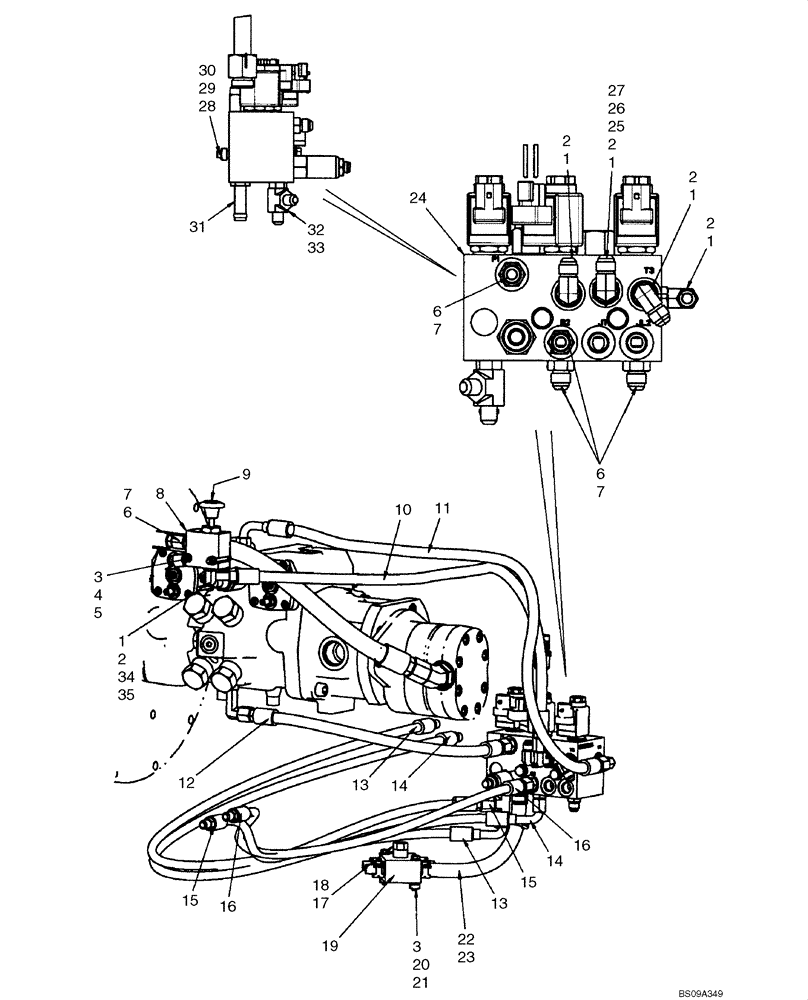

Запчасти Case IH 440CT (06-14) - HYDROSTATICS - MULTI VALVE (440CT) (06) - POWER TRAIN

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 2

4шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

4

86512440

NUT,M6, Cl 10

2шт.

5

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 7

5шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

87604076

VALVE, EXHAUST, OVER

Boom Override

1шт.

9

87568435

DECAL

Boom Override

1шт.

10

87563992

HOSE

820 mm (32.28 in); Dump Valve Drain; If Used

1шт.

10

87707137

HOSE,9.53mm ID x 620mm L

620 mm (24.41in); Dump Valve Drain

1шт.

11

87563991

HOSE

884 mm (34.8 in); DA pressure

1шт.

12

87547032

HOSE,9.65 mm ID x 3050.00 mm

467 mm (18.38 in); Charge pressure

1шт.

13

87364806

HOSE,9.53mm ID x 1200mm L

1200 mm (47.24 in); 2 Speed LH

1шт.

14

87364631

HOSE

1250 mm (49.21 in); Brake LH

1шт.

15

87364803

HOSE

825 mm (32.48 in); 2 Speed RH

1шт.

16

87364629

HOSE

850 mm (33.46 in); Brake RH

1шт.

17

76349

PLUG,9/16" - 18 ORB

Incl. 18

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

87437351

MANIFOLD

Return oil

1шт.

20

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

21

87404992

SQUARE NUT,M6 x 1.0, Cl 8

Square M6-1.0 Class 8 ZND

2шт.

22

87563996

HOSE,12.70 mm ID x 290.00 mm

Multi Valve Drain

1шт.

23

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

24

87577076

PILOT VALVE

Two Speed Track Models; See Figure 06-27

1шт.

24

84167643

VALVE

Valve, Pilot Brake Rel/Two Speed; See Fig 06-27A

1шт.

25

87573371

ADAPTER

Incl 26, 27

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

87030567

SQUARE NUT

Square M8 1.25 Class 8 ZND

2шт.

29

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

30

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

31

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

1шт.

32

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 33

1шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 35

1шт.

35

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
