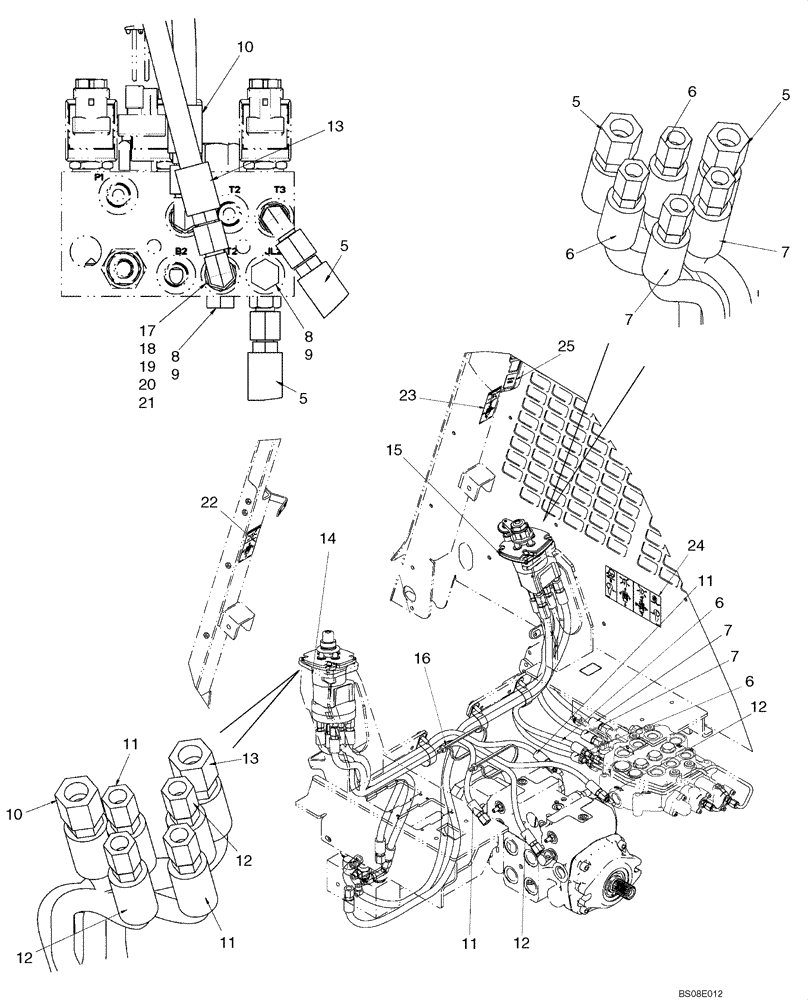

Запчасти Case IH 440CT (06-03) - JOYSTICK CONTROL PLUMBING - ISO PATTERN (440CT) (06) - POWER TRAIN

87703828

SERVICE KIT

Kit, ISO Pattern Control; Incl 1 - 21

1шт.

1

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 3

8шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 4

4шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

5

87684218

HOSE,9.53mm ID x 1300mm L

1300 mm (51.18 in) Joystick Drain Or Supply

2шт.

6

87604062

HOSE,6.35mm ID x 590mm L

590 mm (23.23 in) Pilot

2шт.

7

87604069

HOSE,6.35mm ID x 490mm L

490 mm (19.29 in) Pilot

2шт.

8

76349

PLUG,9/16" - 18 ORB

Incl. 9

3шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

10

87684180

HOSE,9.53mm ID x 620mm L

620 mm (24.40 in) Joystick Drain

1шт.

11

87604072

HOSE

800 mm (31.50 in) Pilot

2шт.

12

87604070

HOSE

920 mm (36.22 in) Pilot

2шт.

13

87604071

HOSE

680 mm (26.77 in) Joystick Supply

1шт.

14

87611854

VALVE

Joystick Valve, ISO Pattern LH; See Figure 06-06

1шт.

15

87600623

VALVE

Joystick Valve, ISO Pattern RH; See Figure 06-07

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

17

87573371

ADAPTER

.38 OD Male x .38 OD Female; Incl 18, 19

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 21

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

87715691

DECAL

Decal, ISO Pattern RH

1шт.

23

87715692

DECAL

Decal, ISO Pattern LH

1шт.

24

87715688

DECAL

Decal, Control ID ISO Pattern

1шт.

25

87746891

DECAL

Decal, ISO Pattern

1шт.
