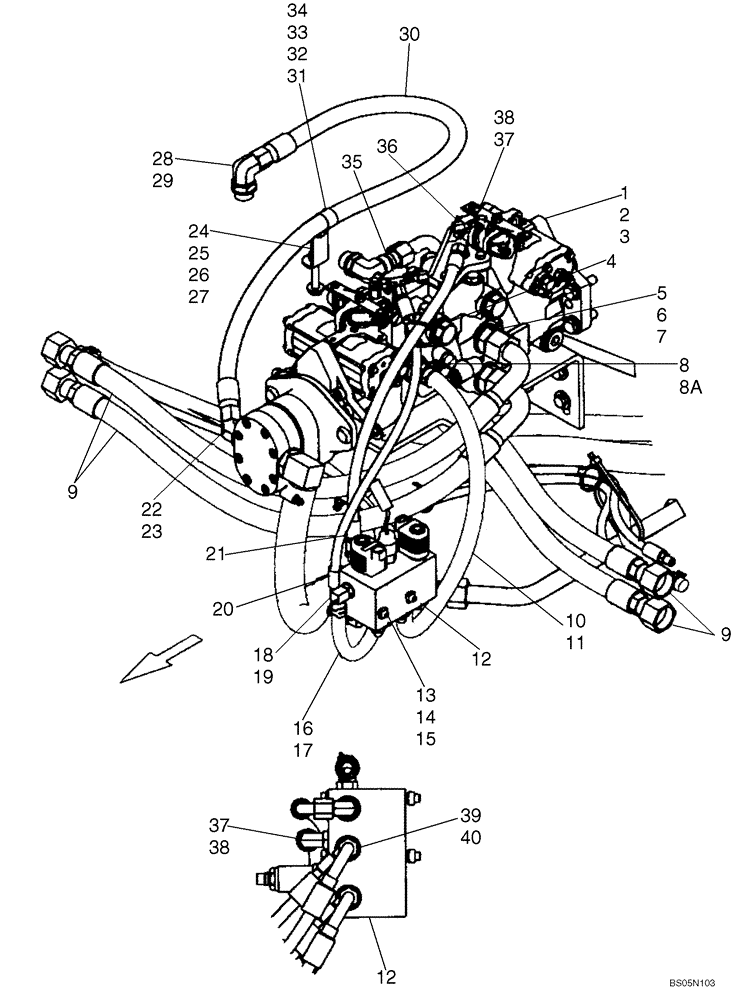

Запчасти Case IH 440CT (06-03C) - HYDROSTATICS - BRAKE VALVE (440CT) (06) - POWER TRAIN

87043501

PUMP

M46 Tandem Pump, 2.2 SG Gear; Incl. 1 - 3

1шт.

1

87043502

PUMP

M46 Tandem; See Figure 06-13 - 06-15A

1шт.

1

87043502R

Remanufactured Hydraulic Pump

REMAN-HYD PUMP

1шт.

1

87043502C

Return Number

CORE-HYDRAULIC PUMP

1шт.

2

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

3

87024695

PUMP,36 CC

2.2 Gear; See Figure 06-16

1шт.

87024695R

440CT BSN N7M483467 (3/06-12/07)

REMAN-HYD PUMP

1шт.

87024695C

Return Number

CORE-HYDRAULIC PUMP

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

5

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

1.0; Incl. 6, 7

4шт.

6

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

8

87311640

HYD CONNECTOR

5/8 Hose x 1-1/16-12 ORB STR Barb; Incl. 8A

1шт.

8a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

87454486

HOSE ASSY.,19.05mm ID x 975mm L

Loop

4шт.

10

87364626

HOSE

Case Drain

1шт.

11

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24 mm

2шт.

12

87352524

BRAKE VALVE

Two Speed Brake Valve; See Figure 06-09A

1шт.

13

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

14

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

15

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

16

87022177

HOSE,12.7mm ID x 340mm L

Case Drain

1шт.

17

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

18

217-374

FITTING,90 Degree Elbow, 1/2" Hose Barb x 9/16" - 8 Male ORB

Incl 19

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

87441276

HOSE ASSY.

NOR

1шт.

21

87459910

HOSE ASSY.

Charge

1шт.

22

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 23

1шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

87458997

BRACKET

Valve

1шт.

25

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

26

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

1шт.

27

86512554

NUT,M10 x 1.5, Cl 10

1шт.

28

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 29

1шт.

29

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1065 mm (41.93 in); Supply; For Noise Control Option See Figure 06-02B

1шт.

30

87547070

HOSE,15.88mm ID x 1000mm L

1000 mm (39.37 in); Valve Supply

1шт.

31

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

32

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

33

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

34

9628098

NUT,M8 x 1.25, Cl 10

1шт.

35

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

36

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

37

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 38

2шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl. 40

2шт.

40

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
