(06-03B) - PUMP, TANDEM - MOUNTING (440CT)

Запчасти Case IH 440CT (06-03B) - PUMP, TANDEM - MOUNTING (440CT) (06) - POWER TRAIN

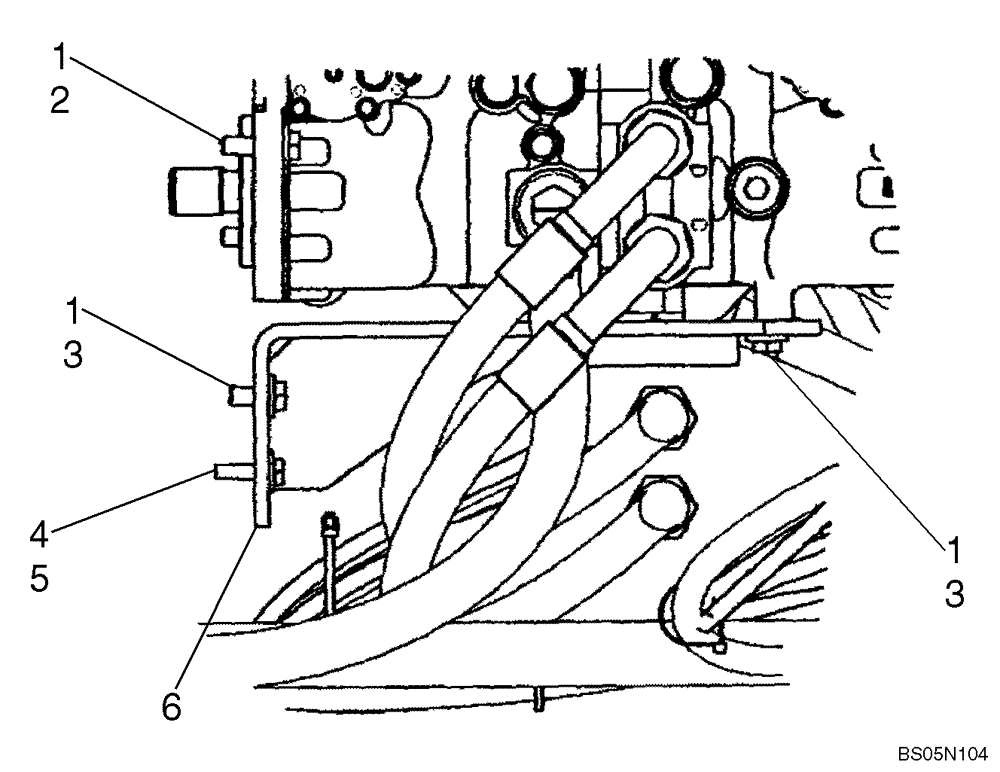

Схема запчастей Case IH 440CT - (06-03B) - PUMP, TANDEM - MOUNTING (440CT) (06) - POWER TRAIN
1
1
3
2
6
4
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

2

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

3

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

4

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

2шт.

5

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

6

87020365

SUPPORT ASSY.

Pump Support

1шт.
