Запчасти Case IH 440CT (06-02A) - PUMP, TANDEM - MOUNTING (440) (06) - POWER TRAIN

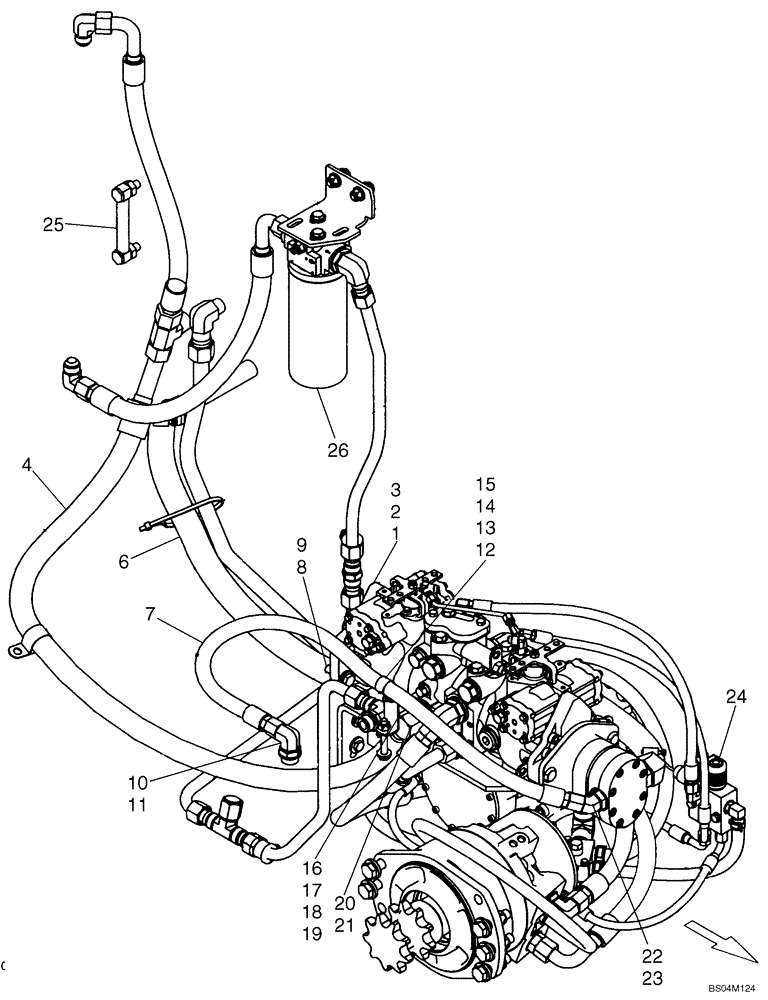

Схема запчастей Case IH 440CT - (06-02A) - PUMP, TANDEM - MOUNTING (440) (06) - POWER TRAIN
26
19
3
11
17
10
13
16
20
9
25
4
12
21
1
2
14
22
7
24
15
6
18
8
23

Артикул

Название

Примечание

Количество

87043498

PUMP

Tandem Pump; Incl. 1, 2, 3

1шт.

87043500R

REMAN-HYD PUMP

Reman for New PN 87043498

1шт.

87043500C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87043500

PUMP,46 CC

Tandem Pump; See Figure 06-10 - 06-10E

1шт.

1

87043500R

REMAN-HYD PUMP

REMANUFACTURED HYDRAULIC PUMP

1шт.

1

87043500C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

87024695

PUMP,36 CC

Gear Pump; See Figure 06-16

1шт.

87024695R

440 NA BSN N8M474469, 440 EU BSN N8M407542 (2/05-), 440CT BSN N7M483467 (3/06-12/07)

REMAN-HYD PUMP

1шт.

87024695C

Return Number

CORE-HYDRAULIC PUMP

1шт.

3

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

4

87458996

HOSE ASSY.

Suction

1шт.

5

86639006

CLAMP,38.1mm, Coat, 13.5mm Bolt Hole, P Type

Used On Ref 4

1шт.

6

87022438

HOSE,12.7mm ID x 1610mm L, SAE 100R4

Suction

1шт.

7

87021838

HOSE ASSY.

1065 mm (41.93 in); Supply; For Noise Control Option See Figure 06-02B

1шт.

7

87547070

HOSE,15.88mm ID x 1000mm L

1000 mm (39.37 in); Valve Supply

1шт.

8

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

1шт.

9

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

10

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 11

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

14

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

15

9628098

NUT,M8 x 1.25, Cl 10

1шт.

16

87458997

BRACKET

Valve

1шт.

16a

P24576

SPACER,3/8" Pipe x 11/16"

If Used Behind Bracket 87458997, Not Illustrated

1шт.

17

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

18

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

1шт.

19

86512554

NUT,M10 x 1.5, Cl 10

1шт.

20

87418259

FITTING

1шт.

21

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

1шт.

22

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 23

1шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

REF

INSTRUCTION

Brakes, See Figure 07-01

1шт.

25

87374752

GAUGE

Replaces 87424266

1шт.

26

REF

INSTRUCTION

Filter Mounting, See Figure 06-08

1шт.

Выбрано товаров: 35
