Запчасти Case IH 440CT (06-01) - OIL COOLER - MOUNTING (06) - POWER TRAIN

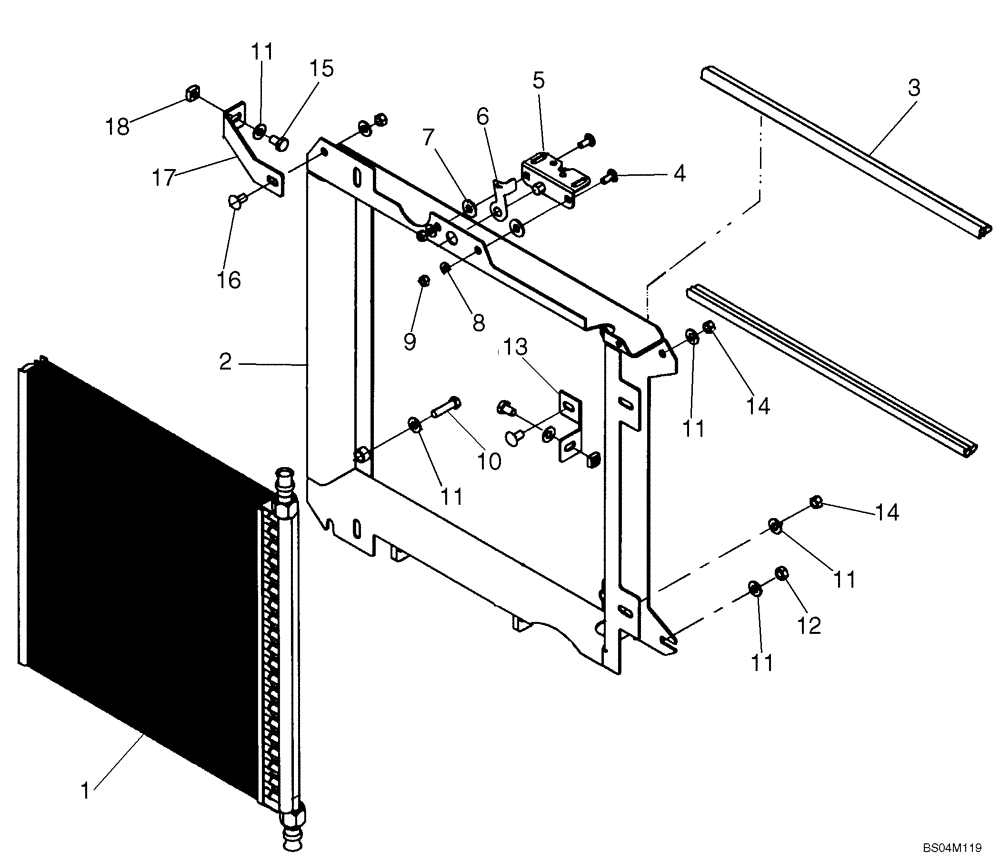

Схема запчастей Case IH 440CT - (06-01) - OIL COOLER - MOUNTING (06) - POWER TRAIN
5
11
11
10
8
14
7
12
11
9
17
6
11
4
14
1
13
15
16
3
18
2
11

Артикул

Название

Примечание

Количество

1

87037766

COOLER, OIL

1шт.

2

87530722

SUPPORT

Oil Cooler Support; Replaces 87436060

1шт.

3

87016847

SEAL

2шт.

4

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

5

84015292

LATCH

1шт.

Both Ref 5 are Identical, the Only Difference is Manufacture

1шт.

5

87705306

LATCH

1шт.

Both Ref 5 are Identical, the Only Difference is Manufacture

1шт.

6

87017116

LEVER

1шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

12

86500689

NUT,M10 x 1.5, Cl 10

2шт.

13

87356893

BRACKET

Oil Cooler Support; Replaces 87021577

1шт.

14

9628503

NUT,3/8"-16, G5

6шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

16

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

17

87021578

BRACKET

1шт.

18

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

2шт.

Выбрано товаров: 21
