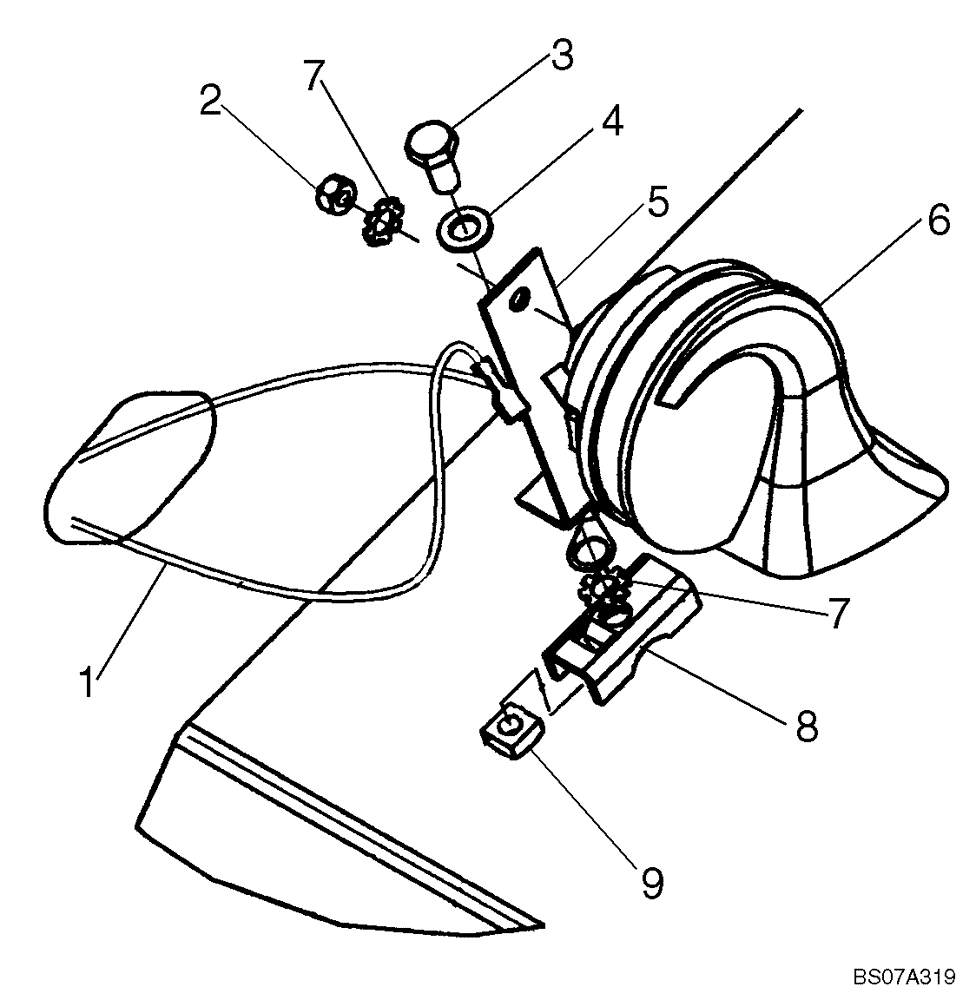

Запчасти Case IH 440CT (04-15A) - KIT, HORN RELOCATION (04) - ELECTRICAL SYSTEMS

87590640

SERVICE KIT

Kit To Relocate Horn From Front Of Cab To Rear Loader Support Tower; Incl. 1 - 10 And Installation Instructions

1шт.

1

87590642

HARNESS

Horn Relocation

1шт.

2

87030561

NUT,M6 x 1, Cl 8

1шт.

3

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

5

406938A2

ANGLE

1шт.

6

254130A1

HORN

1шт.

7

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.

8

D88429

CAGE

1шт.

9

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

7шт.
