Запчасти Case IH 440CT (04-11) - HARNESS, FRONT - AUXILIARY (04) - ELECTRICAL SYSTEMS

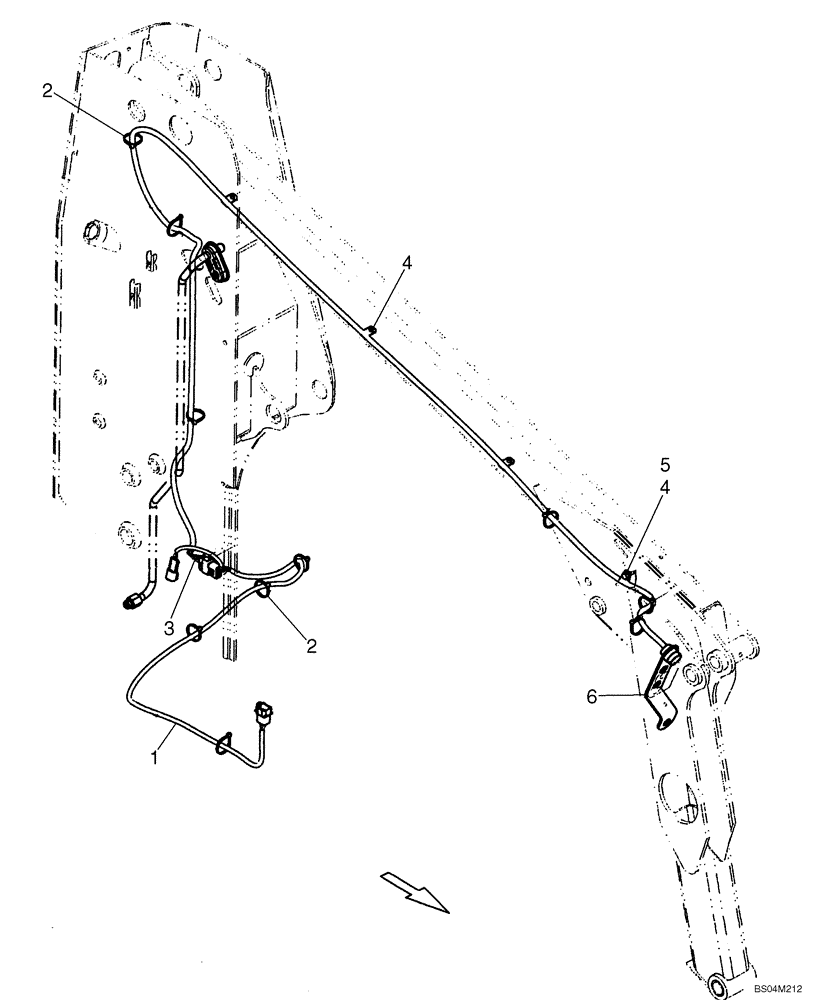

Схема запчастей Case IH 440CT - (04-11) - HARNESS, FRONT - AUXILIARY (04) - ELECTRICAL SYSTEMS
2
2
3
6
4
4
1
5

Артикул

Название

Примечание

Количество

1

87039334

HARNESS

Front Electric, Chassis

1шт.

86994296

DIA KIT, ADD PROD

Kit, Front Auxiliary Electric; Incl 1 - 6

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

10шт.

3

87441574

WIRE HARNESS

Front Auxiliary Electric, Includes Ref. 7 and Ref. 8

1шт.

4

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3-4шт.

5

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

If Used

1шт.

6

87023530

BRACKET

1шт.

7

225233C1

CONNECTOR, ELEC

CONNECTOR Wire Harness Front Aux (Not Shown)

1шт.

8

225053C1

TERMINAL CONNECTOR,Female, 0.8 - 1 mm2

Terminal For Ref. 7 (Not Shown)

1шт.

Выбрано товаров: 9
