Запчасти Case IH 440CT (04-04) - ENGINE, ELECTRICAL (04) - ELECTRICAL SYSTEMS

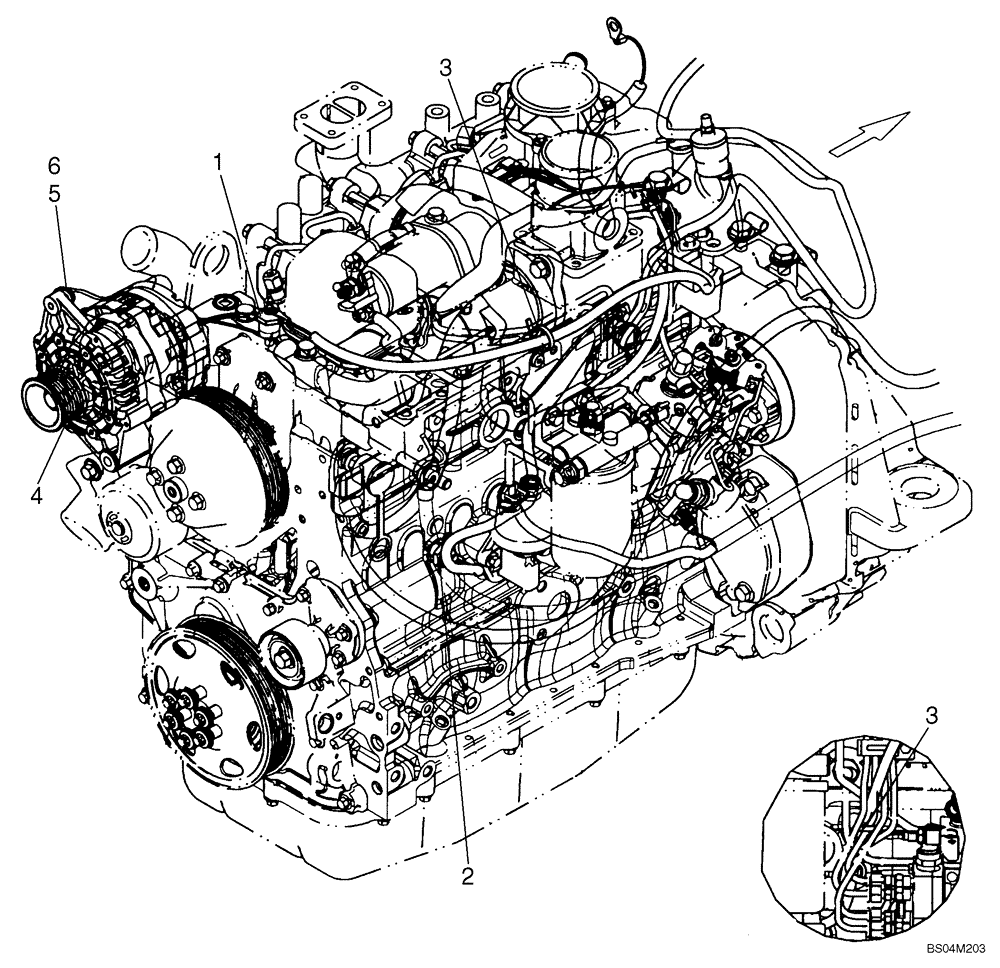

Схема запчастей Case IH 440CT - (04-04) - ENGINE, ELECTRICAL (04) - ELECTRICAL SYSTEMS
1
3
6
2
4
3
5

Артикул

Название

Примечание

Количество

1

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Oil Temperature

1шт.

2

277016A1

PRESSURE SWITCH

Oil, Part # 277016A1 and Four Digit Date Stamped on Rim; B.M. Instruments; Uses Harness 87041590, See Figure 04-05 Ref 15

1шт.

2

2852735

PRESSURE SWITCH,Oil Pressure

Oil Pressure; See Service Breakdown Figure 04-04A; Iveco; Uses Harness 87539896, See Figure 04-05 Ref 15

1шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

3шт.

4

87038475

ALTERNATOR

12V, 95 Amp

1шт.

4

87038475R

REMAN-ALTERNATOR

12V, 95 Amp

1шт.

4

87038475C

CORE-ALTERNATOR

Return Number

1шт.

4

84230294R

REMAN-ALTERNATOR

440 BSN N8M474469, 440CT BSN N7M483467

1шт.

4

84230294C

Return Number

CORE-ALTERNATOR

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

Выбрано товаров: 11
