(03-04) - FUEL INJECTION PUMP

Запчасти Case IH 440CT (03-04) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

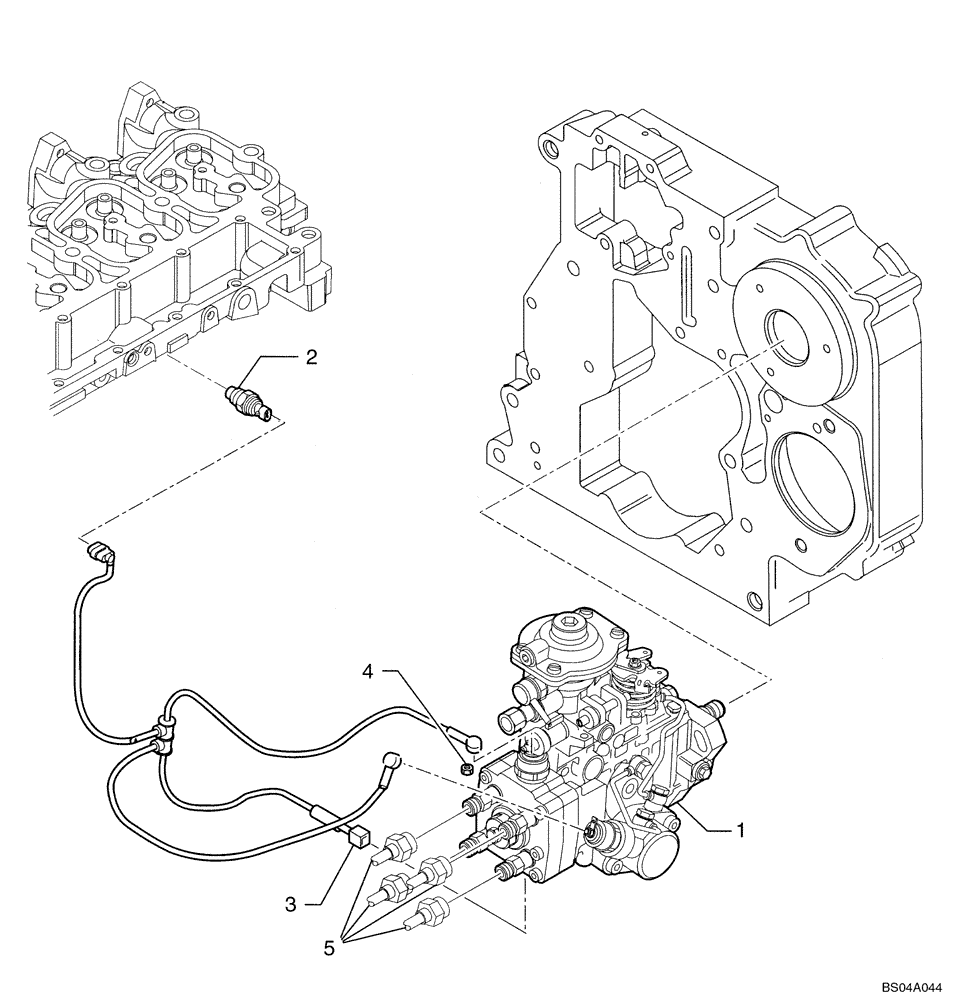

Схема запчастей Case IH 440CT - (03-04) - FUEL INJECTION PUMP (03) - FUEL SYSTEM
4
3
5
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2853079

FUEL INJECTION PUMP

Incl 2852741

1шт.

1

2853079R

REMAN-INJECTION PUMP

Remanufactured

1шт.

1

2853079C

CORE-INJECTION PUMP

Return number

1шт.

2852741

SOLENOID

Fuel Shut Off

1шт.

2

2852087

SENSOR

KSB Sensor, Water Temperature

1шт.

3

2852088

WIRE HARNESS

1шт.

4

2852089

NUT,M5

2шт.

5

REF

INSTRUCTION

TUBE; See Figure 03-07 for Tube Kit

1шт.
