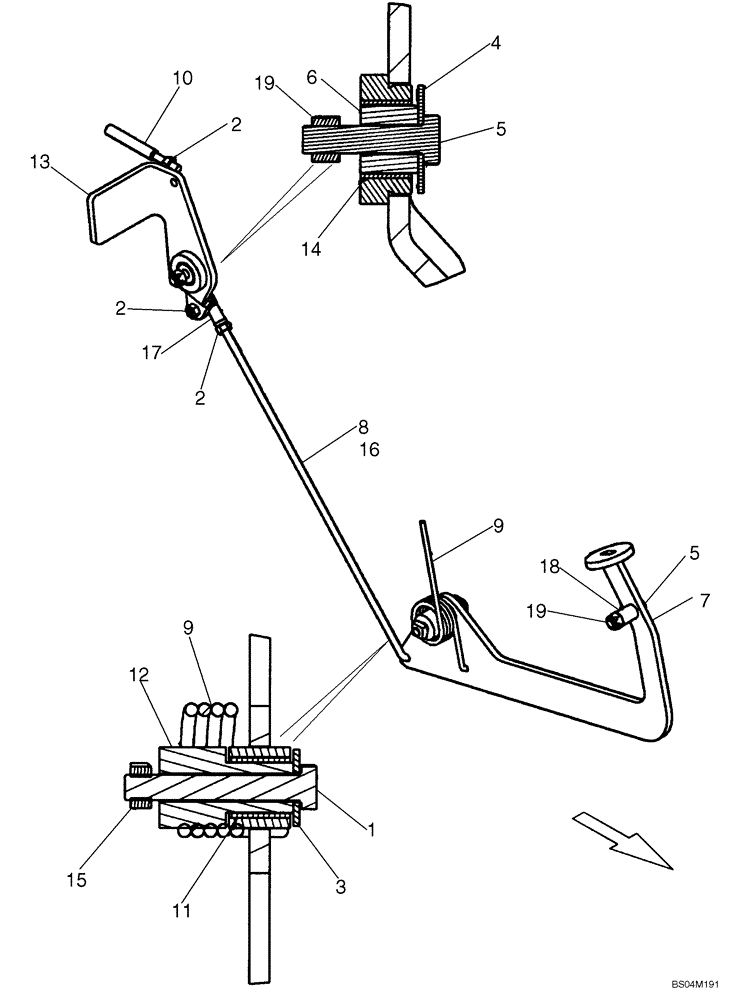

Запчасти Case IH 440CT (03-03) - CONTROLS - THROTTLE, FOOT (03) - FUEL SYSTEM

1

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

2

86509309

NUT,1/4"-28, G5

3шт.

3

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

4

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

11/32 x 1-1/4 x 1/16

1шт.

5

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

6

87416529

SLEEVE

Rocker Arm Pivot

1шт.

7

87460564

PEDAL ASSY.

Foot Throttle

1шт.

7

87356197

PEDAL ASSY.

Foot Throttle; Replaces 87460564

1шт.

8

87416536

ROD

1шт.

9

87416539

TORSION SPRING

1шт.

10

87416541

EXTENSION

Throttle Rod

1шт.

11

87424094

BUSHING,15.93mm ID x 19.13mm OD x 19.05mm L

Bronze

1шт.

12

87424095

SLEEVE

Throttle Pivot

1шт.

13

87431319

HOUSING ASSY.

Rocker Arm

1шт.

13

87461888

HOUSING ASSY.

Rocker Arm; Replaces 87431319

1шт.

14

186905A1

BUSHING

1шт.

15

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square, M8 x 1-1/4

1шт.

16

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

Cotter

1шт.

17

H169920

BALL JOINT

1шт.

18

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

1шт.

19

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.
