(03-01A) - FUEL LINES WITH HOSE CLAMPS AT FUEL FILTER; IF USED

Запчасти Case IH 440CT (03-01A) - FUEL LINES WITH HOSE CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM

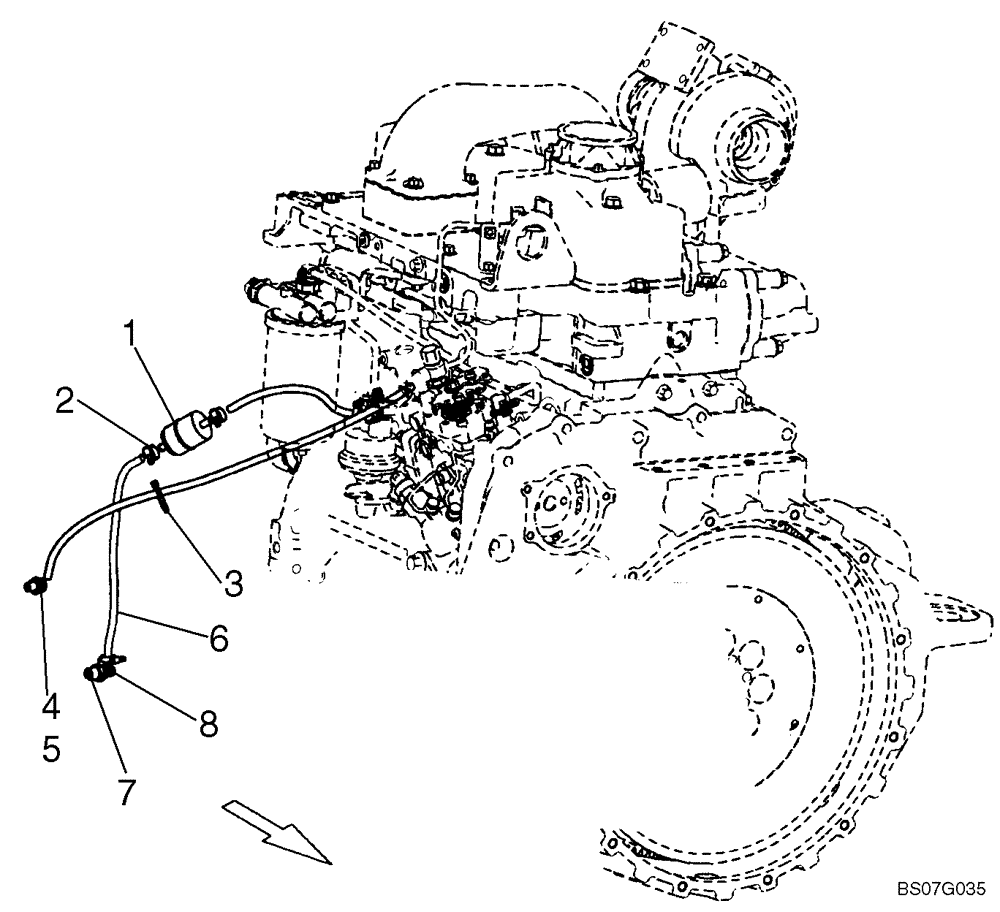

Схема запчастей Case IH 440CT - (03-01A) - FUEL LINES WITH HOSE CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM
2
4
8
1
3
6
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D139225

FILTER, FUEL

Inline

1шт.

2

86625041

HOSE CLAMP,11.2mm - 19.8mm

4шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

4

87435843

FUEL HOSE,6.35 mm ID x 755.00 mm

1шт.

5

86601756

HYD CONNECTOR

1шт.

6

86516356

FUEL HOSE,0.38" ID, SAE 30R7

2 ft. Required

1шт.

7

87436610

ADAPTER

Fuel Line With Flow Stop

1шт.

8

87414560

90 ELBOW

2шт.
