(03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED

Запчасти Case IH 440CT (03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM

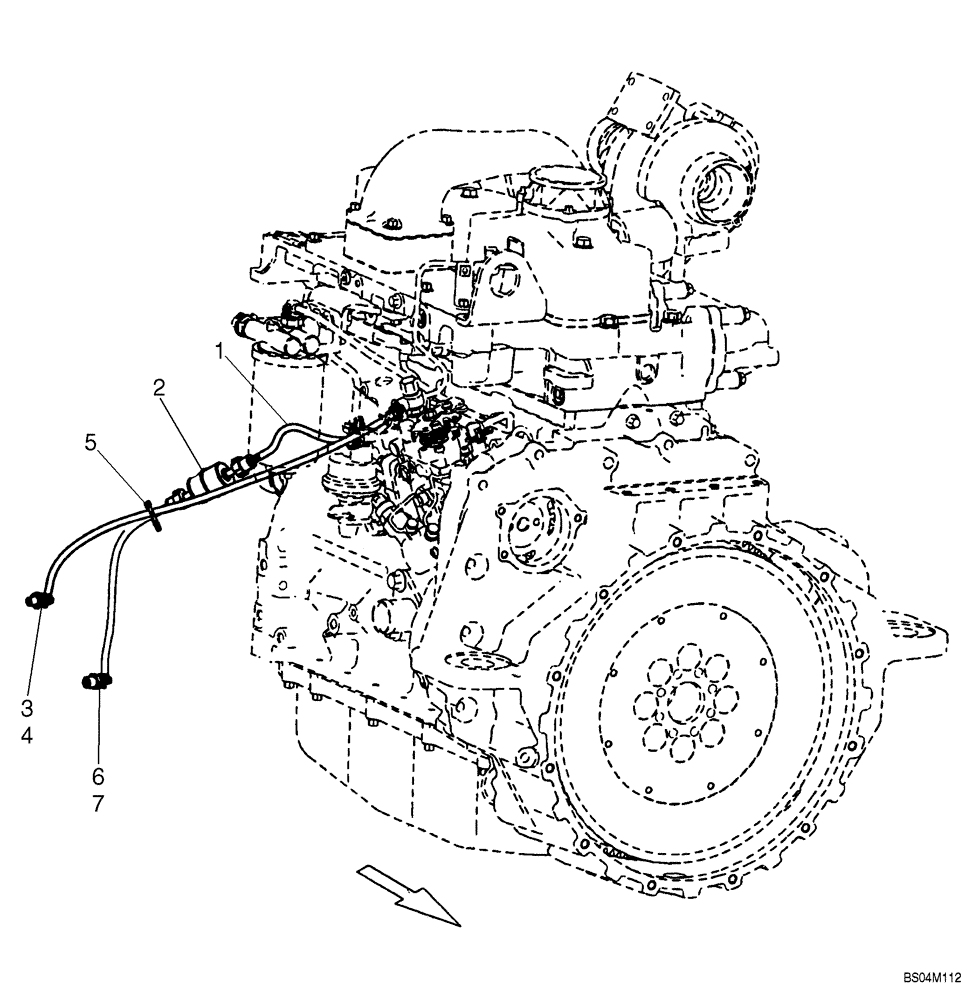

Схема запчастей Case IH 440CT - (03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM
7
1
3
2
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87018091

TUBE

1шт.

2

87548612

FUEL FILTER

Inline; Replaces 87019604

1шт.

3

87435843

FUEL HOSE,6.35 mm ID x 755.00 mm

1шт.

4

86601756

HYD CONNECTOR

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

6

87436610

ADAPTER

Fuel Line With Flow Stop

1шт.

7

87435842

TUBE,6.35 mm ID x 320.00 mm

1шт.

Выбрано товаров: 7
