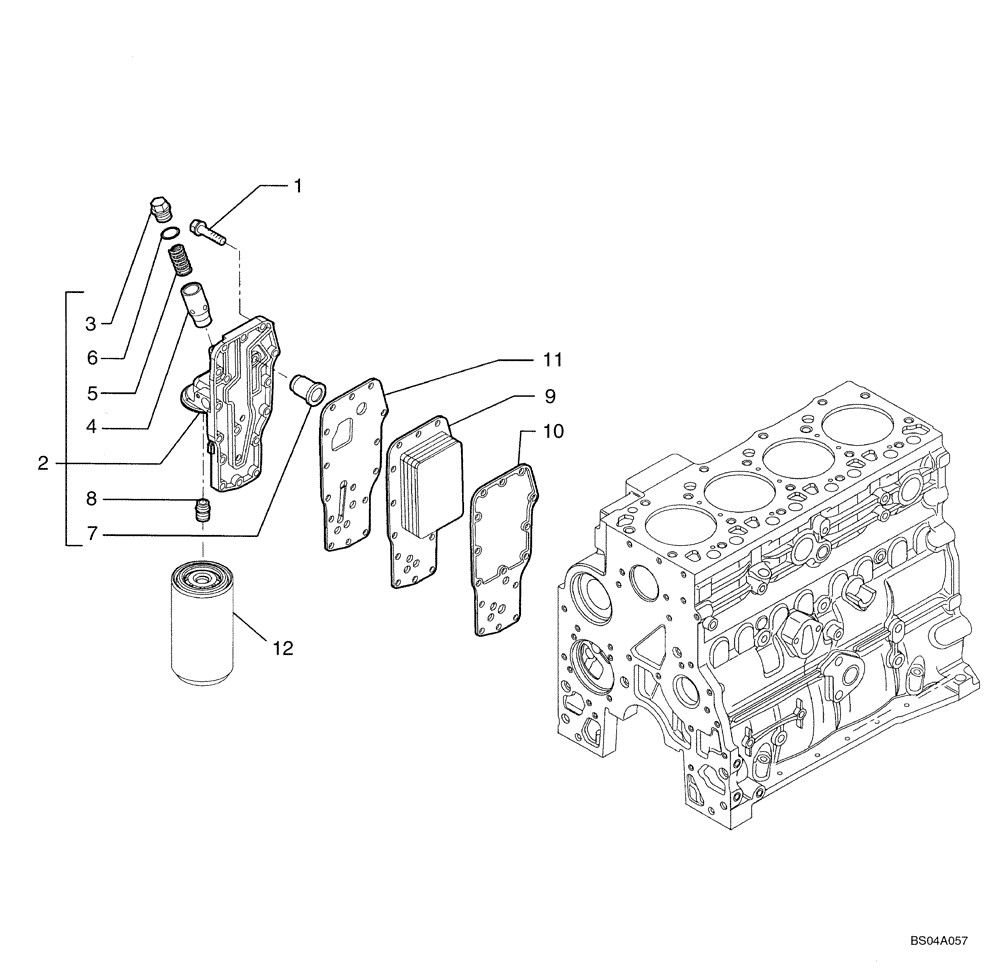

Запчасти Case IH 440CT (02-30) - OIL FILTER AND COOLER (02) - ENGINE

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.

2

4892774

FILTER HEAD

Head, Incl. Ref 3 - 8

1шт.

3

4895043

PLUG

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

Plunger, Pressure Regulator

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

4899035

O-RING,2.62mm Thk x 18.39mm ID

1шт.

7

J936365

VALVE PRESSURE RELIE

Pressure Relief

1шт.

8

4899643

FILTER HEAD

1шт.

9

4896406

HEAT EXCHANGER

Cooler Core

1шт.

10

2830559

GASKET,0.5mm Thk

Core

1шт.

11

4896409

GASKET,1.55mm Thk

Head

1шт.

12

REF

INSTRUCTION

FILTER, ENGINE OIL; See Figure 02-29

1шт.
