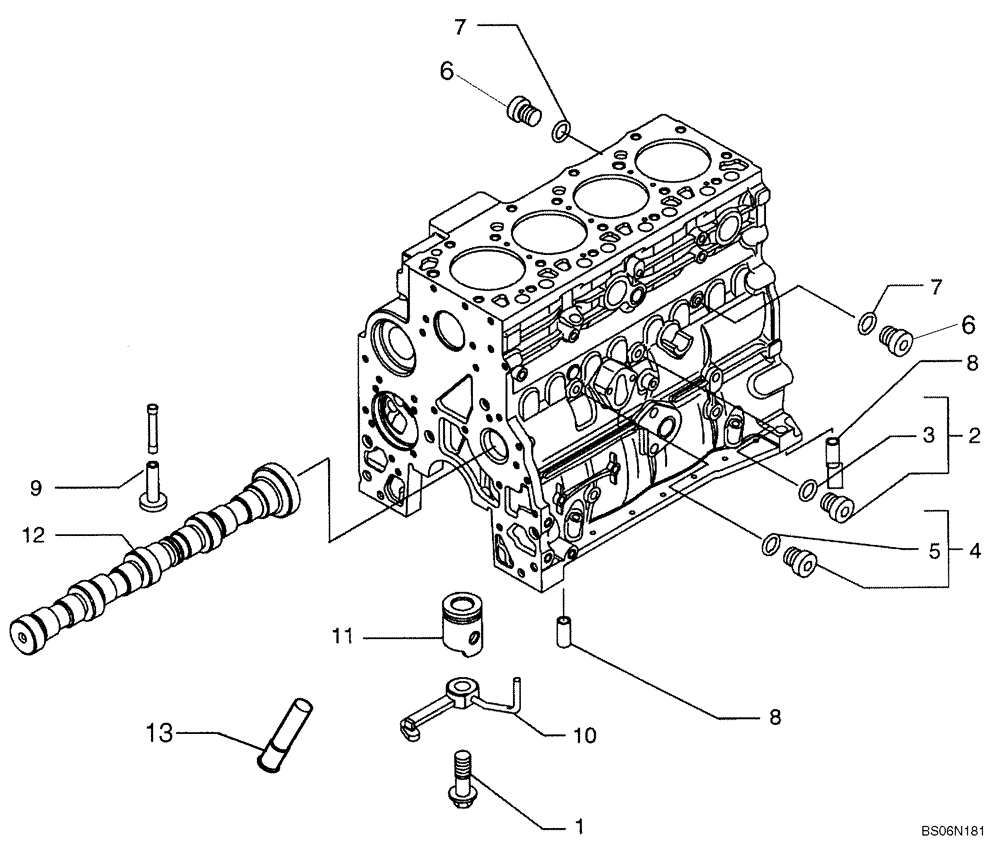

1
4894218
SCREW,Special, M8 x 20
4шт.
2
4895605
HEX SOCKET PLUG,M14 x 1.5
Incl. Ref 3
1шт.
3
4899115
O-RING,2.2mm Thk x 11.3mm ID
1шт.
4
4899009
PLUG,M10 x1
Incl. Ref 5
1шт.
5
4899072
O-RING,1.6mm Thk x 8.1mm ID
1шт.
4895392
HEX SOCKET PLUG,M18 x 1.5
Incl. Ref 6, 7
2шт.
6
4895394
HEX SOCKET PLUG,M18 x 1.5
2шт.
7
4895393
O-RING,2.2mm Thk x 15.3mm ID
1шт.
8
4895049
DOWEL,M16.05 x 10
2шт.
9
J931623
TAPPET
8шт.
10
2852202
NOZZLE, PISTON COOLI
J Style; If Used; Incl. Ref 1
4шт.
11
REF
INSTRUCTION
PISTON; See Figure 02-23
1шт.
12
REF
INSTRUCTION
CAMSHAFT; See Figure 02-26
1шт.
13
4896865
LUBE OIL NOZZLE
LUBE OIL JET NOZZLE Saddle Mounted Piston Cooling Nozzle, Straight With Orifice; If Used
4шт.
