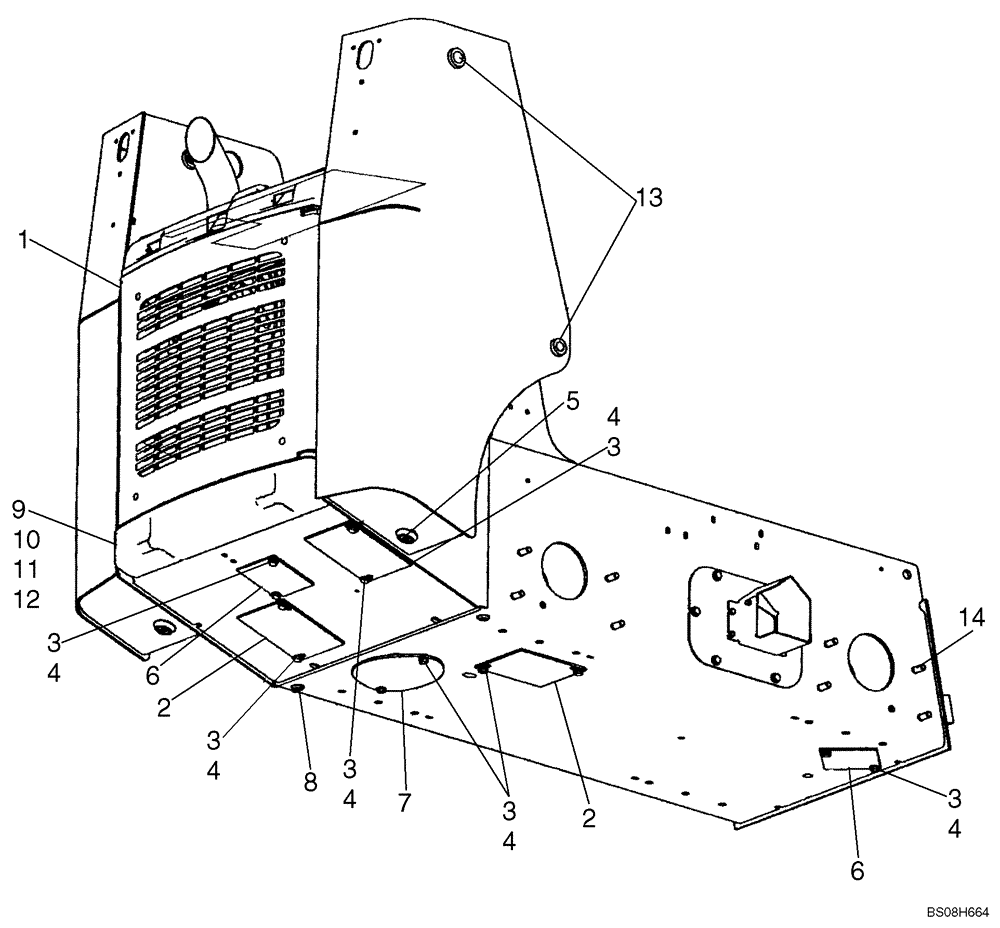

Запчасти Case IH 440CT (09-11A) - CHASSIS (440CT) (09) - CHASSIS

1

REF

INSTRUCTION

Door Assy; See Figure 09-17

1шт.

2

87458642

PLATE

Plumbing Access

3шт.

3

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

12шт.

4

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

14шт.

5

87432221

PLUG

1, Magnetic

2шт.

6

H436914

LARGE PLATE

PLATE, LARGE

2шт.

7

365817A1

COVER

1шт.

8

236622

PLUG,3/8" - 18 NPT

3/8

2шт.

9

87445534

BOLT

M20 x 70

2шт.

10

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

2шт.

9

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

Replaces 87445534

2шт.

11

86536985

NUT,M20 x 2.5, Cl 10

2шт.

12

87453961

BUMPER

Counterweight

1шт.

13

429630A2

CAP COVER,43mm OD

43 mm Lexan, See Figure 09-44A

4шт.

14

254799A1

STUD

M16x45; Studs For Axle Mounting

20шт.
