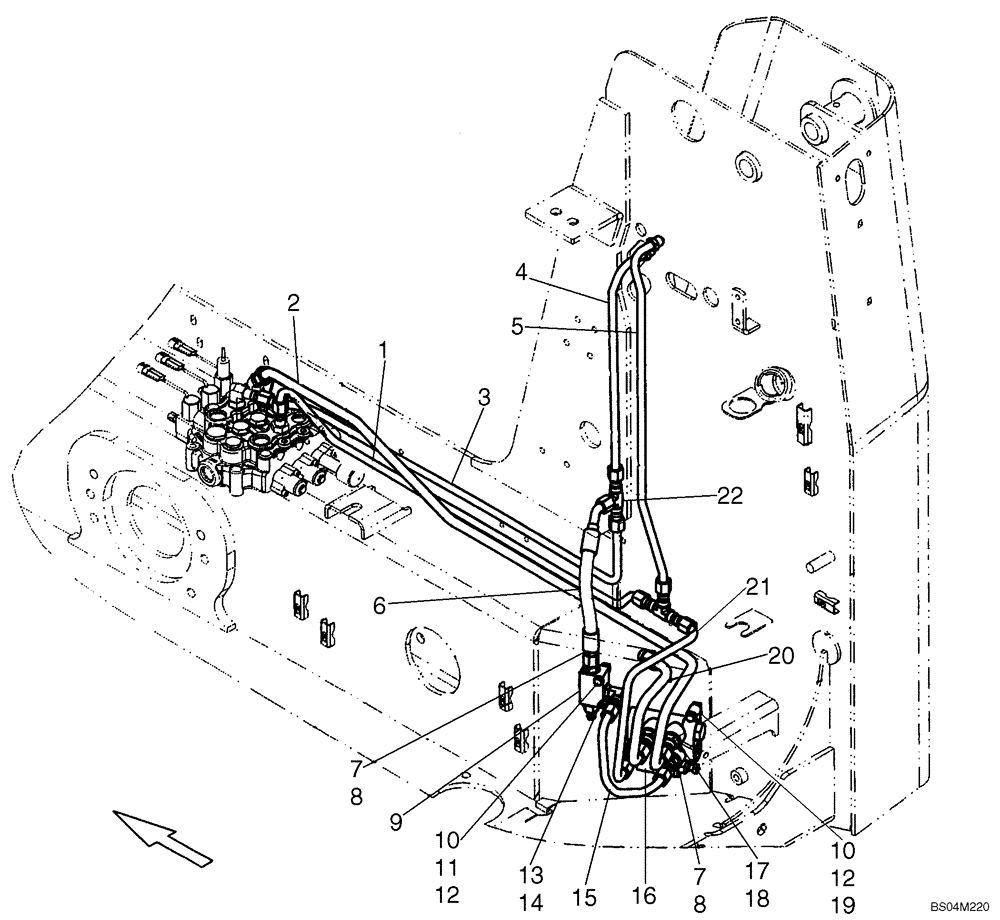

Запчасти Case IH 440CT (08-04) - HYDRAULICS - SELF-LEVELING (08) - HYDRAULICS

1

87446000

HYD TUBE,12.7 mm OD

Tip (Dump), 1/2 Tube

1шт.

2

87446001

HYD TUBE,15.88 mm OD x 897, 641.2 mm L

Lift (Lower), 5/8 Tube

1шт.

3

87436668

HYD TUBE,12.7 mm OD

Tip (Curl), 1/2 Tube

1шт.

4

87436539

HYD TUBE,12.7 mm OD

Tip (Curl), 1/2 Tube

1шт.

5

87421452

HYD TUBE,12.7 mm OD x 674.7, 87 mm L

Tip (Dump), 1/2 Tube

1шт.

6

87458978

HOSE,12.7mm ID x 305mm L

Bucket Rod

1шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl. 8

3шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

294650A1

VALVE

Relief; Component Parts Not Serviced Separately

1шт.

10

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

3шт.

11

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

12

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

3шт.

13

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 14

2шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

87421454

HYD TUBE,12.7 mm OD x 132, 101.7 mm L

Self Level To Relief

1шт.

16

87447793

VALVE

Includes 87535230 Seal Kit

1шт.

16

87535230

ZERO DETANT KIT

VALVE KIT Seal, Kit; Includes (6) O-Rings, (1) Backup Ring, Plus Seal Kit For Relief Valve; Components Not Serviced Separately

1шт.

17

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl. 18

1шт.

18

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

20

87412217

TUBE,15.88 mm OD x 132.5, 120.8 mm L

Valve Out

1шт.

21

87421448

HYD TUBE,12.7 mm OD x 216.1, 197.1 mm L

Valve, Bucket Base

1шт.

22

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.
