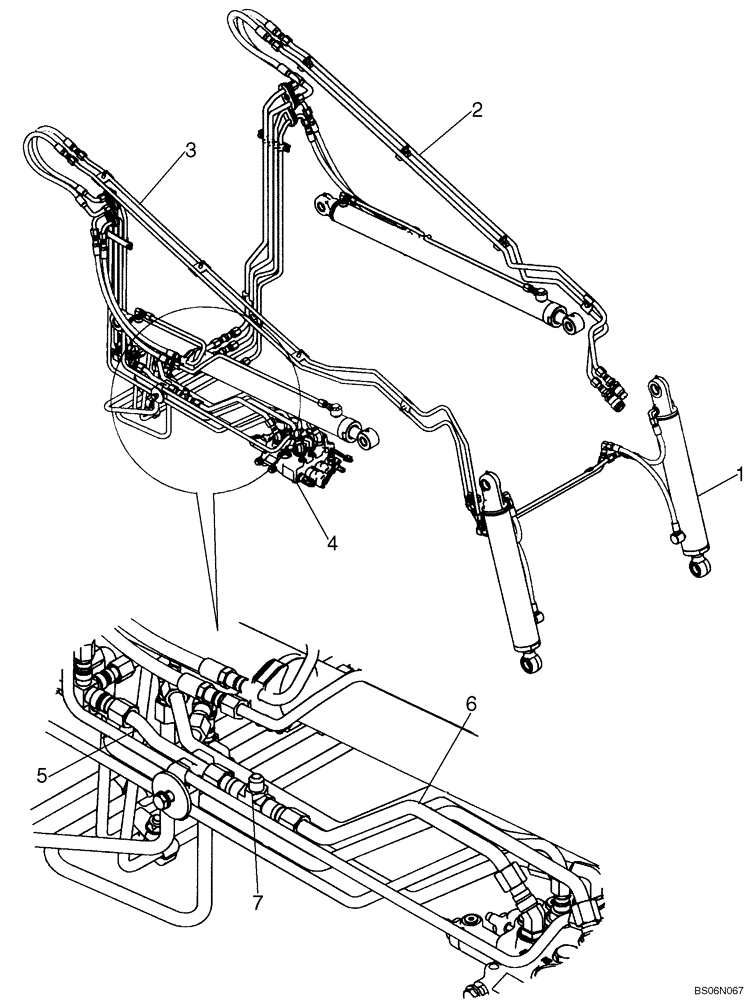

Запчасти Case IH 440CT (08-02) - HYDRAULICS - LOADER (MODELS WITH PILOT CONTROL) (08) - HYDRAULICS

1

87438193

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 370mm Stroke

See Fig. 08-12

2шт.

87438193R

REMAN-HYD CYLINDER

440CT BSN N7M483467 (3/06-12/07)

2шт.

87438193C

Return Number

CORE-HYD CYLINDER

1шт.

2

REF

INSTRUCTION

See Fig. 08-03 For Auxiliary Hydraulics

1шт.

3

REF

INSTRUCTION

See Fig. 08-01A For Tilt Hydraulics

1шт.

4

87546974

HYDRAULIC VALVE

Standard Pilot; See Figures 08-21A - 08-24, 08-27, 08-28, 08-30, 08-32 - 08-35

1шт.

5

87564000

HYD TUBE,15.875 mm OD x 219.7 mm L

Dump Valve Drain, 220mm (8 21/32 in.) Length; Replaces 87629970

1шт.

5

87629970

HYD TUBE

Dump Valve Drain, 212mm (8 11/32 in.) Length

1шт.

6

87563998

HYD TUBE,15.875 mm OD

Dump Valve Drain

1шт.

7

87644290

HYD CONNECTOR

Tee, Union 5/8 X 5/8 X 1/2 37Fl; Replaces 87573372

1шт.

7

87573372

TEE

Tee, Union 5/8 x 5/8 x 1/2

1шт.
