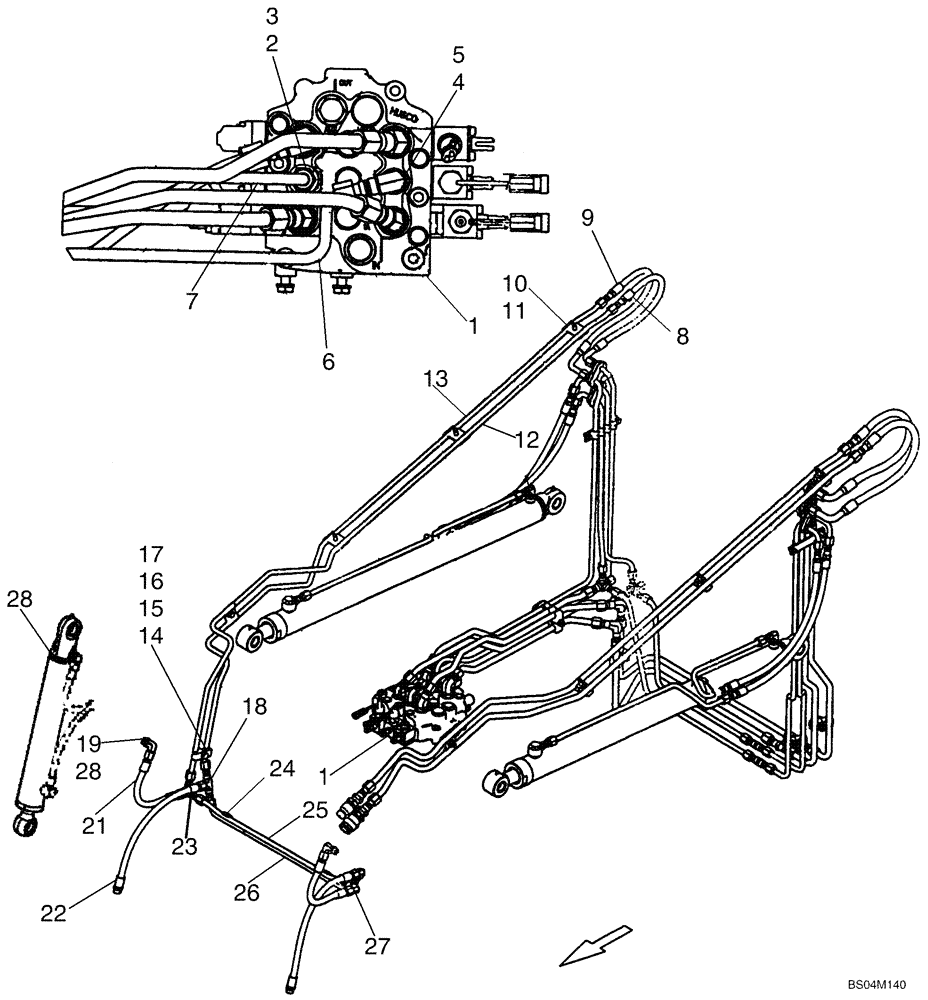

Запчасти Case IH 440CT (08-01A) - HYDRAULICS - TILT (08) - HYDRAULICS

1

87583285

VALVE

Control Valve; See Figure 08-21; Replaces 87527172

1шт.

1

87527172

VALVE

Replaces 87446760; Component Parts Not Yet Available; If Used

1шт.

1

87635384R

440 SKID STEER, NA BSN N8M474469 (2/05-), 440CT COMPACT TRACK LOADER - BSN N7M483467 (3/06-12/07), Both TILT , Reman for New PN 87527172

REMAN-HYD VALVE

1шт.

1

87635384C

Return Number

CORE-VALVE HYD

1шт.

1

87583285

VALVE

Manual Control Valve; Incl. Figure 08-21 - 08-31

1шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl. 3

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl. 5

1шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87423368

HYD TUBE,12.7 mm OD x 799.6, 578.2 mm L

1/2 Tube, Curl

1шт.

7

87445747

HYD TUBE,.50" OD

1/2 Tube, Dump

1шт.

8

406242A1

HOSE ASSY.,9.53mm ID x 580mm L

580 mm (22.83 in)

1шт.

9

406088A1

HOSE ASSY.,9.53mm ID x 600mm L

600 mm (23.62 in)

1шт.

10

86501706

CLAMP

Double

4шт.

11

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

Replaces 281-54914 (Hex Washer Head, 3/8 x 7/8)

4шт.

12

406334A1

TUBE

1/2 Tube, Dump; No Longer Used, Order 87531091

1шт.

12

87531091

HYD TUBE

1/2 Tube, Dump

1шт.

13

406336A1

TUBE

1/2 Tube, Curl

1шт.

14

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

15

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10 -1.5

1шт.

16

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

17

D120679

CLAMP,Tube, 1/2"

1/2 in

1шт.

18

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

19

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 20

2шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

373240A5

HOSE ASSY.

Dump

2шт.

22

373241A3

HOSE ASSY.,9.53mm ID x 460mm L

Curl

2шт.

21

87387193

HOSE ASSY.,9.53mm ID x 355mm L

355 mm, 14 in; Dump; Replaces 373240A5

2шт.

23

D124661

ELBOW

Side Outlet

1шт.

24

H434900

CLAMP

2шт.

25

373223A3

TUBE,610, 31 mm Length

Dump

1шт.

26

373225A3

TUBE,584, 50 mm Length

Curl

1шт.

27

216791

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

28

87438193

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 370mm Stroke

Tilt; See Figure 08-12

2шт.

87438193R

REMAN-HYD CYLINDER

440 BSN N8M474469 (2/05-), 440CT BSN N7M483467 (3/06-12/07)

2шт.

87438193C

Return Number

CORE-HYD CYLINDER

1шт.
