Запчасти Case IH 440CT (06-28) - FINAL DRIVE (440CT) (06) - POWER TRAIN

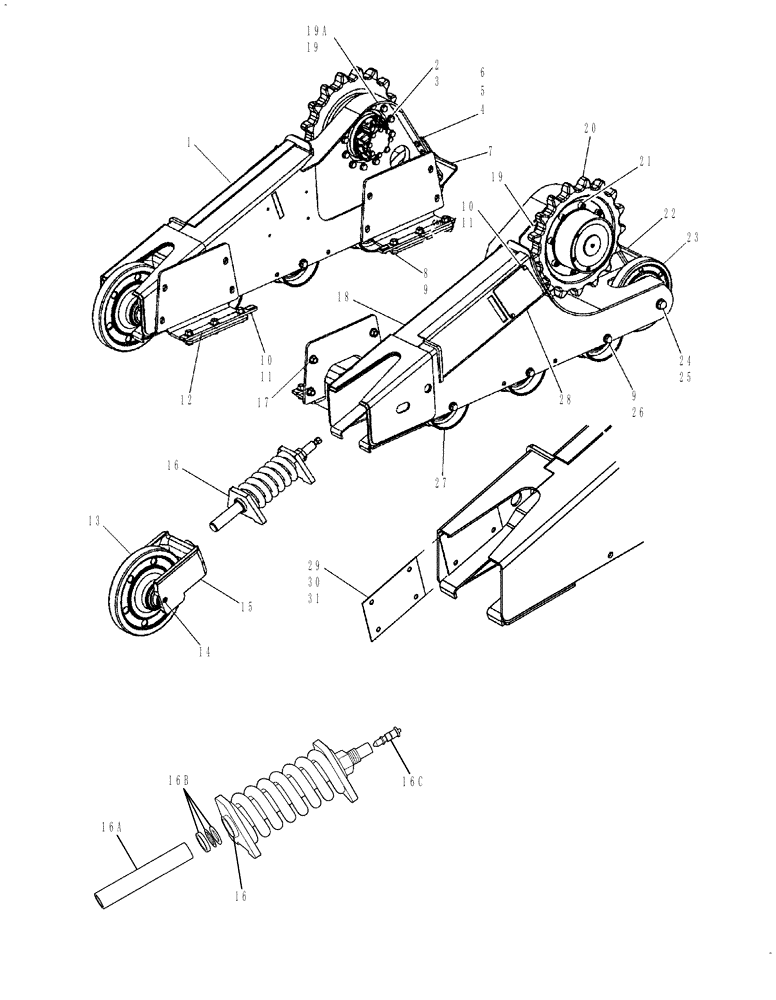

Схема запчастей Case IH 440CT - (06-28) - FINAL DRIVE (440CT) (06) - POWER TRAIN
3
8
16
12
5
16b
20
29
17
9
26
15
9
19
2
11
23
19
31
30
13
18
11
10
16
25
14
28
7
19a
6
16a
24
4
16c
1
22
27
10
21

Артикул

Название

Примечание

Количество

87563155

KIT

Roller And Idler; Includes Ref. 9, 13, 14, 23 - 26, 27 And Instructions

1шт.

1

87582846

FRAME

Track Frame RH; Replaces 87525673, 87459512; If Used

1шт.

1

87669349

FRAME

Track Frame RH; (Used with Bonfiglioli or Rexroth Drive Motors)

1шт.

2

87316174

BOLT,Hex, M14 x 50mm, Cl 10.9

Hex, M14 x 50

24шт.

3

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

24шт.

4

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

(Use with Rexroth Drive Motor)

8шт.

5

337475

NUT,M12, Cl 10

(Use with Rexroth Drive Motor)

8шт.

6

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

(Use with Rexroth Drive Motor)

8шт.

7

87459518

SCRAPER

Scraper Plate, RH (Use with Rexroth Drive Motor with Ref. 4, 5, & 6)

1шт.

8

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

12шт.

9

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

24шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

11

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

8шт.

12

87364613

BAR

Bar W/Undercarriage Mount

4шт.

13

87480418

FRONT IDLER,350mm OD x 194mm W

350 mm, Front; Replaces 87462176, 87535298

2шт.

13

47378990R

REMAN-WHEEL IDLER

350 mm, Front

2шт.

13

47378990C

CORE-WHEEL IDLER

Return Part Number

2шт.

14

14301821

HEX SOC SCREW,M10 x 16mm, Cl 8.8, Full Thd

4шт.

15

87462287

YOKE

Front Idler

2шт.

16

87602985

TENSIONER

Spring, Tension; Replaces 87458724

2шт.

16a

87602988

ROD

Piston Rod For Track Tensioner, Ref. 16

1шт.

16b

87602987

SERVICE KIT

Seal Kit For Track Tensioner, Ref. 16; Incl. Scraper, Spacer, And O-Ring

1шт.

16c

87356572

VALVE

Grease Valve For Tension Spring Ref 16

1шт.

84213764

CAP

Cap, Grease Valve For Tension Spring 87602985

1шт.

17

86512498

FLANGE NUT,M16 x 2, Cl 10

16шт.

18

87582844

FRAME

Track Frame LH; Replaces 87525672, 87459511; If Used

1шт.

18

87669347

FRAME

Track Frame LH; If Used (Used with Bonfiglioli or Rexroth Drive Motors)

1шт.

19

87363008

SPACER

Motor Spacer

2шт.

20

87460888

SPROCKET

17 Tooth - 86 Pitch

2шт.

21

87303345

HEX SOC SCREW,M16 x 2 x 40mm, Cl 10.9, Full Thd

16шт.

22

87459517

SCRAPER

Scraper Plate, LH (Use with Rexroth Drive Motor with Ref. 4, 5, & 6)

1шт.

23

87480413

IDLER,290mm OD x 220mm W

Replaces 87447230; 87535299

2шт.

24

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

25

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

4шт.

26

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

12шт.

27

87535297

TRACK ROLLER

Replaces 87447228; If Used

6шт.

27

87480419

TRACK ROLLER

If Used; P/n includes Roller Shell, Shaft, Brackets, Plugs, O-rings, Sealing Rings, Bushings- All NSS

6шт.

28

87354210

COVER

Plate, Zerk Cover

2шт.

29

87650011

SERVICE KIT

Yoke Shim Kit; Incl. 30, 31 And Instructions

1шт.

30

87650010

PLATE

16 Gage Shim

2шт.

31

87650009

PLATE

12 Gage Shim

2шт.
