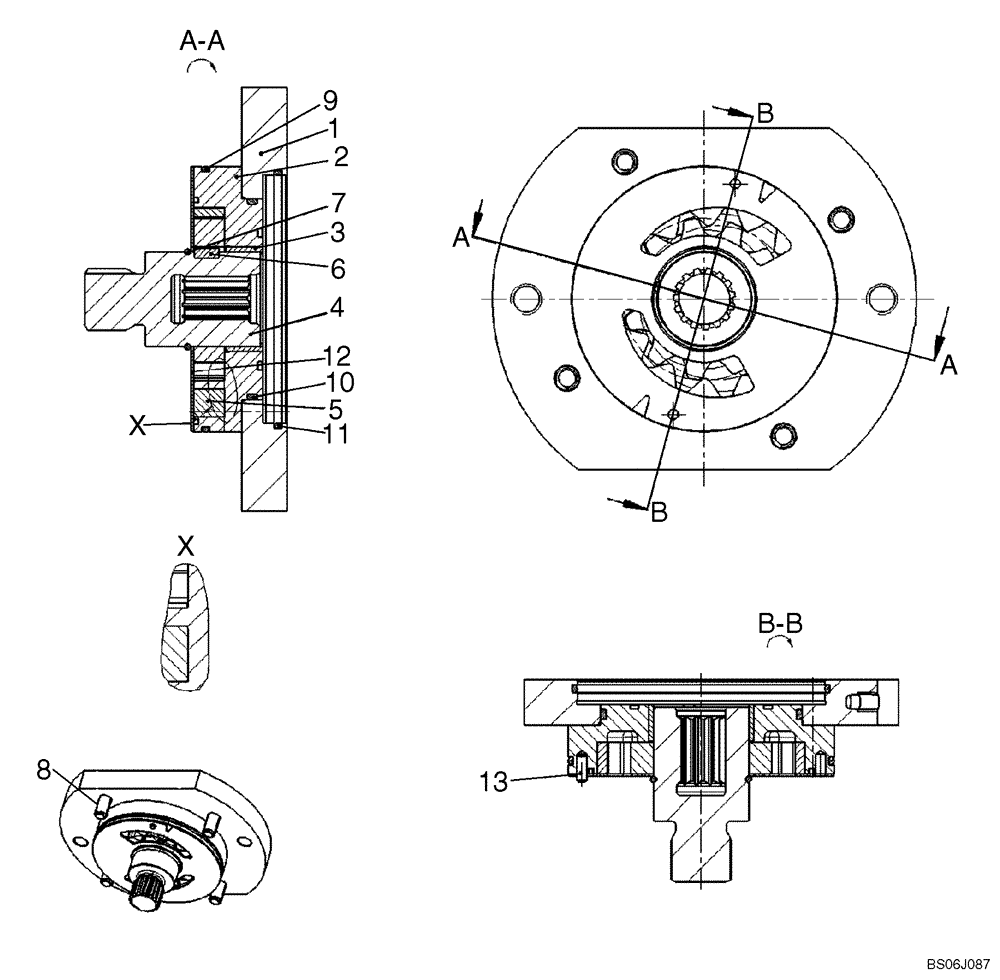

Запчасти Case IH 440CT (06-12C) - PUMP, TANDEM - INTERNAL GEAR PUMP (87546977) (06) - POWER TRAIN

87546977

PUMP,46 CC

Rexroth A22; If Used; Incl. 06-12 - 06-12G

1шт.

87546977R

Remanufactured Hydraulic Pump

REMAN-HYD PUMP

1шт.

87546977C

Return Number

CORE-HYDRAULIC PUMP

1шт.

87553608

ASSEMBLY

Internal Gear Pump; Incl. 1 - 13

1шт.

1

87597287

FLANGE

Intermediate Flange

1шт.

2

87597288

HOUSING

IZP Housing

1шт.

3

87553610

BEARING

Bearing Bushing

1шт.

4

87597289

COUPLING

Through Drive Coupling

1шт.

5

87597290

WHEEL SET

Wheel Set

1шт.

6

87597291

KEY

Shaft Key

1шт.

7

87597292

SNAP RING

Snap Ring

1шт.

8

87597293

HEX SOC SCREW

Socket Head Screw

4шт.

9

87597294

O-RING

O-ring

1шт.

10

87597295

O-RING

O-ring

1шт.

11

87553616

O-RING

O-ring

1шт.

12

87597296

PLATE

Wear Plate

1шт.

13

87597297

PIN

Cylinder Pin

1шт.
