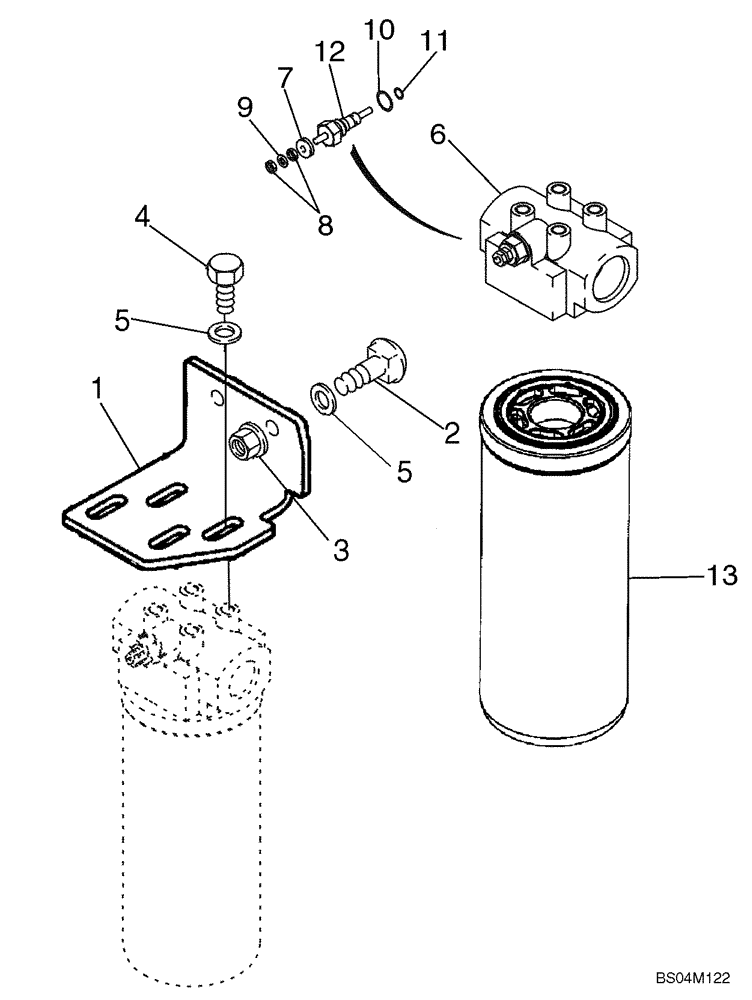

Запчасти Case IH 440CT (06-08) - FILTER ASSY - MOUNTING (06) - POWER TRAIN

1

87020901

BRACKET, SUPPORTING

Hydrostatic Filter

1шт.

2

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

3

86512554

NUT,M10 x 1.5, Cl 10

2шт.

4

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

87430661

FILTER

Hydrostatic Filter; Return; Incl. 6 - 13

1шт.

6

87439984

FILTER HEAD

Hydrostatic Filter; Incl. N13268

1шт.

N13268

PRESSURE SWITCH

Hydrostatic Filter; Incl. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

Washer; Red, White

1шт.

8

129-667

NUT,#10-32, LH

2шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

9672548

O-RING,-011, 70 Duro, .301" ID x .070" Thk

1шт.

12

NSS

NOT SOLD SEPARAT

Body

1шт.

13

87010593

ELEMENT

Hydrostatic Filter

1шт.
