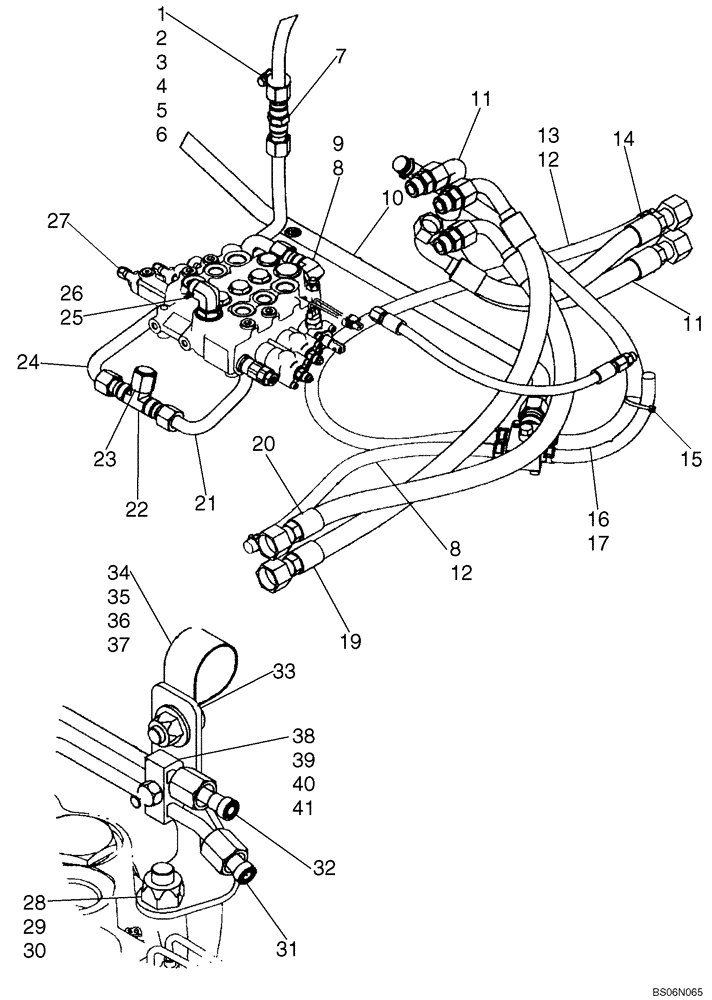

Запчасти Case IH 440CT (06-06C) - HYDROSTATICS - HOSES (440CT WITH PILOT CONTROL) (06) - POWER TRAIN

1

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

2

87030567

SQUARE NUT

3шт.

3

87042897

SPACER

1шт.

4

87301359

CLAMP,28.6mm, 10.3mm Bolt Hole, P Type

1шт.

5

87445136

HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L

1шт.

6

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

7

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

8

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 9

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

87364616

HYD TUBE,22.92 mm ID x 25.40 mm OD x 868.6, 368 mm L

Case Drain

1шт.

11

87547065

HOSE,19.05mm ID x 609mm L

609 mm, 24.00 in. Length

1шт.

12

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

6шт.

13

87364625

HOSE

Case Drain, 1000 mm, 39.37 in. Length

1шт.

14

87547064

HOSE,19.05mm ID x 488mm L

Motor To Pump Loop, If Used; Routed As Shown

1шт.

14

87547067

HOSE,19.05mm ID x 930mm L

Motor To Pump Loop, If Used; 930 mm, 36.61 in. Length; Not Routed As Shown

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

16

87563997

HOSE,15.88 mm ID x 810.00 mm

Pump Drain

1шт.

17

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

18

87364622

HOSE

Case Drain, 715 mm, 28.15 in. Length

1шт.

19

87547067

HOSE,19.05mm ID x 930mm L

Motor To Pump Loop, 930 mm, 36.61 in. Length

1шт.

20

87547066

HOSE,19.05mm ID x 370mm L

Motor To Pump Loop, 970 mm, 38.20 in. Length

1шт.

21

87446248

HYD TUBE,19.05 mm OD x 344.1, 215.2 mm L

Valve To Filter

1шт.

22

15694

TEE,1 1/16"-12 37 Degree

1шт.

23

219606

CAP,1-1/16" - 12 JIC

1шт.

24

87445138

HYD TUBE,19.05 mm OD

Valve To Filter

1шт.

25

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 26

1шт.

26

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

87575684

HYD CONNECTOR

Flareless

2шт.

28

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

29

86512554

NUT,M10 x 1.5, Cl 10

3шт.

30

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

7шт.

31

87563968

HYD TUBE,6.35 mm OD

1шт.

Ref 27 is NOT Included

1шт.

32

87563969

HYD TUBE,6.35 mm OD

1шт.

Ref 27 is NOT Included

1шт.

33

87678506

BRACKET

Hose Support; Replaces 87564009

1шт.

34

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

35

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

36

9628098

NUT,M8 x 1.25, Cl 10

1шт.

37

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

38

608089

CLAMP

1шт.

39

87030561

NUT,M6 x 1, Cl 8

1шт.

40

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

7шт.

41

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.
