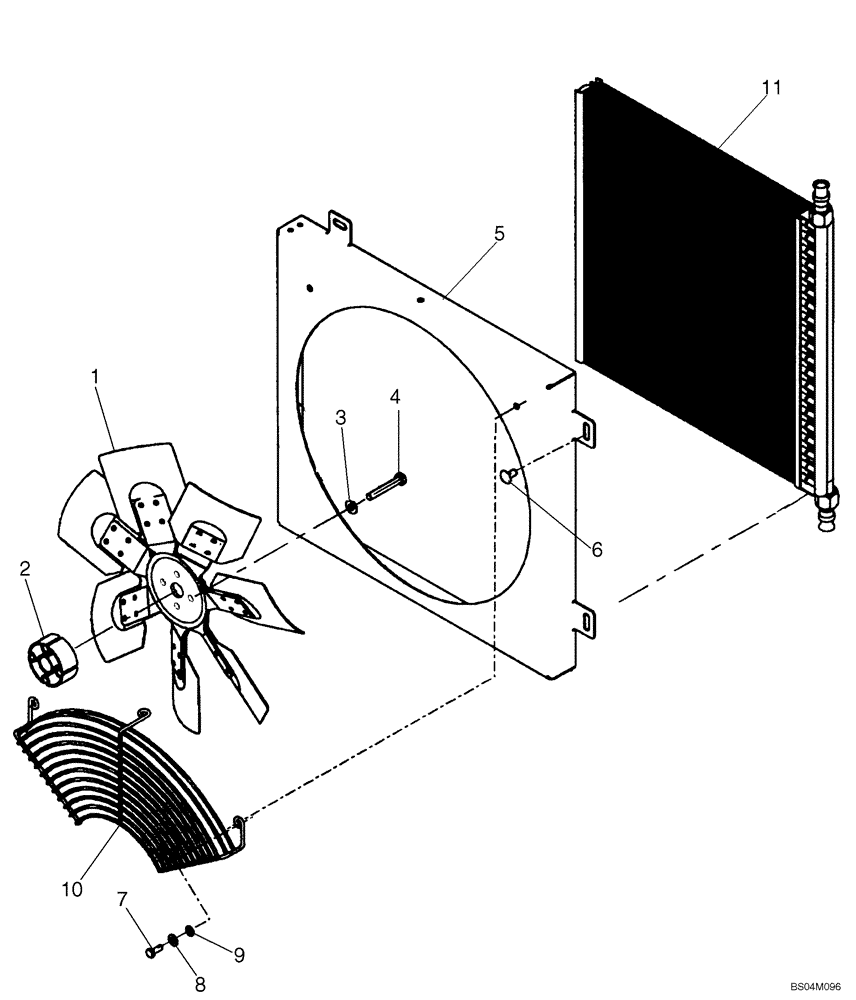

Запчасти Case IH 440CT (02-02) - FAN MOUNTING, 480MM (02) - ENGINE

1

87025470

FAN

480 mm (18 29/32 in.) Dia.; If Used

1шт.

1

87737293

FAN,7 Blades, 480mm OD

480 mm (18 29/32 in.) Dia.; If Used

1шт.

2

A189252

SPACER

Fan

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

4

120071

BOLT,Hex, M10 x 65, 8.8

4шт.

5

87046889

SHROUD ASSY.

1шт.

6

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

If Used

4шт.

6

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

If Used

4шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

10

87046887

GUARD

Fan; Not Slotted For Models Without Air Conditioning; Models With Air, See Figure 09-39

1шт.

11

REF

INSTRUCTION

See Figure 06-01, Oil Cooler

1шт.
