(03-04) - INJECTION EQUIPMENT - INJECTOR (87546691)

Запчасти Case IH 420CT (03-04) - INJECTION EQUIPMENT - INJECTOR (87546691) (03) - FUEL SYSTEM

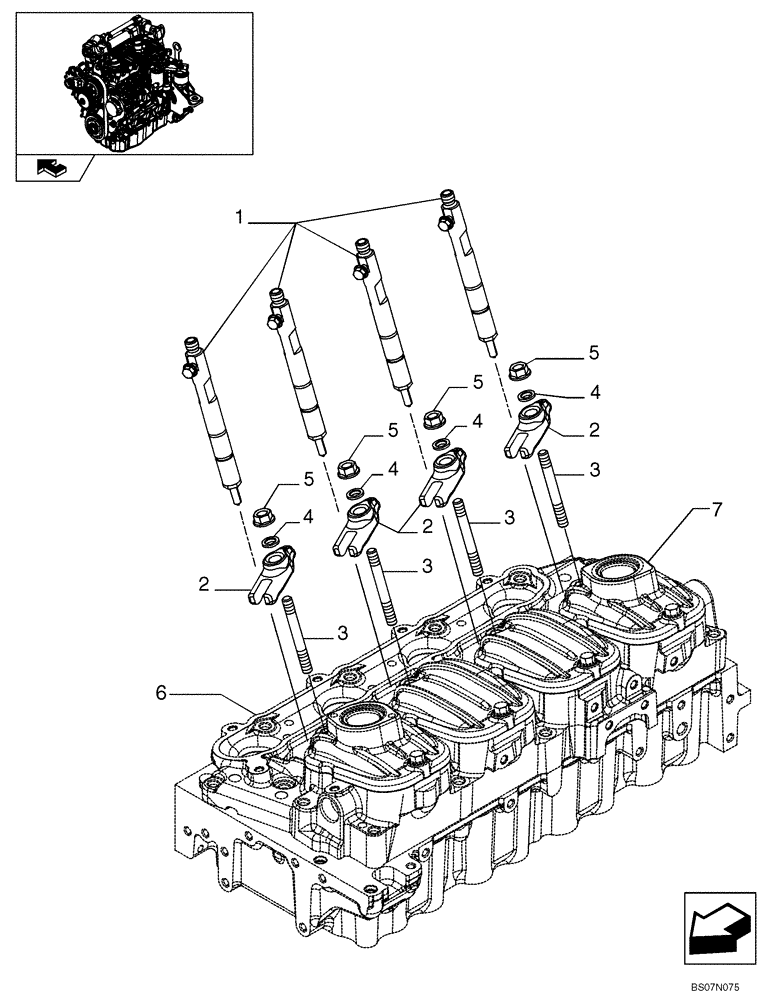

Схема запчастей Case IH 420CT - (03-04) - INJECTION EQUIPMENT - INJECTOR (87546691) (03) - FUEL SYSTEM
5
4
6
3
2
4
3
4
1
2
5
3
5
2
7
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504275234

FUEL SYSTEM INJECTOR

Incl. Sealing Gasket 9929742, 9982964 Bolt

4шт.

504275234R

REMAN-INJECT NOZZLE

420 Tier 3, N7M466710 (1/08), 420CT Series 3 ASN N7M455401

1шт.

504275234C

CORE-NOZZLE, INJECT

Return Number

1шт.

9929742

SEAL

1.5 mm Washer

1шт.

2

504174745

BRACKET

4шт.

3

504315404

STUD,M8 x 16 x 60mm

M8X16X60

4шт.

4

500353601

WASHER

4шт.

5

17044735

NUT,Hex, M8

M8

4шт.

6

REF

INSTRUCTION

See Figure 02-16, Cylinder Head And Related Parts

1шт.

7

REF

INSTRUCTION

See Figure 02-17, Cylinder Head Covers

1шт.
