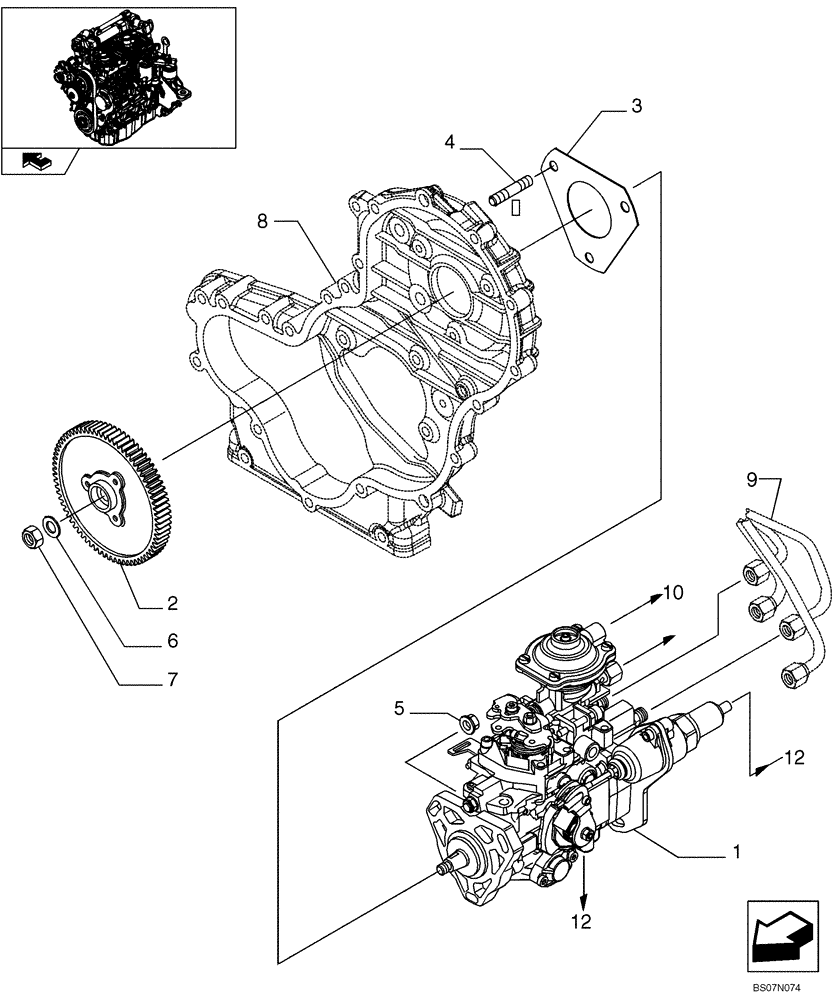

Запчасти Case IH 420CT (03-03) - INJECTION PUMP (87546691) (03) - FUEL SYSTEM

1

504374947

FUEL INJECTION PUMP

1шт.

504374947R

REMAN-INJECTION PUMP

420 TIER 3 N7M466710 (1/08-), 420CT SERIES 3 ASN N7M455401 (1/08-3/11)

1шт.

504374947C

CORE-INJECTION PUMP

Return Number

1шт.

504374947C

CORE-INJECTION PUMP

Return Number, FUEL INJECTION PUMP - for N.A. Only

1шт.

84269570C

Return Number, FUEL INJECTION PUMP - for N.A. Only

CORE-INJECTION PUMP

1шт.

2

504240405

GEAR

1шт.

3

2852885

GASKET,1.2mm Thk

1шт.

4

2852294

STUD,M8 x 1.25 x 30

3шт.

5

500368408

NUT,Hex, M8 x 1.25

M8X1,25

3шт.

6

17095404

WASHER

1шт.

7

16980331

NUT,M14 x 1.5

M14X1,5

1шт.

8

REF

INSTRUCTION

See Figure 02-41, Engine Block Front Cover

1шт.

9

REF

INSTRUCTION

See Figure 03-06A, Injection Equipment Piping

1шт.

10

REF

INSTRUCTION

See Figure 03-05A, Injection Equipment Piping

1шт.

11

REF

INSTRUCTION

See Figure 03-07A, Injection Equipment - Fuel, Return

1шт.

12

REF

INSTRUCTION

See Figure 04-03, Engine Electric Installation

1шт.

13

42533181

SHUT-OFF VALVE

Fuel Pump, Not Shown

1шт.
