Запчасти Case IH 420CT (03-01) - CONTROLS - FOOT AND HAND THROTTLE (03) - FUEL SYSTEM

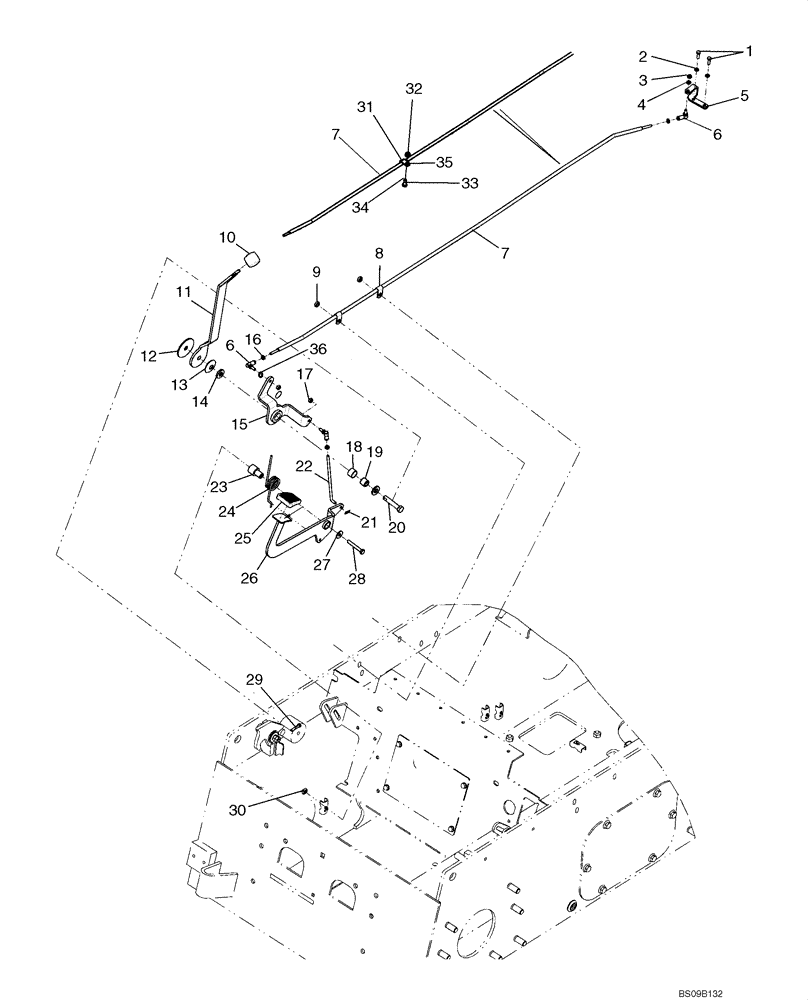

Схема запчастей Case IH 420CT - (03-01) - CONTROLS - FOOT AND HAND THROTTLE (03) - FUEL SYSTEM
29
2
27
26
10
15
14
7
4
16
25
31
6
13
33
11
30
6
34
35
19
20
21
1
9
18
36
12
8
5
7
23
17
32
24
3
22
28

Артикул

Название

Примечание

Количество

1

120100

BOLT,M6 x 20mm, Cl 8.8

If Used

2шт.

1

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

2

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

3

88098

JAM NUT,Jam, 1/4"-28, G2

1шт.

4

80682

LOCK WASHER,1/4"

1шт.

5

87643562

BRACKET

Throttle Rod Bracket

1шт.

6

H169920

BALL JOINT

3шт.

7

87655050

ROD

Throttle Rod

1шт.

8

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

If Used

2шт.

9

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

If Used

2шт.

10

A177436

KNOB

Control Lever Knob

1шт.

11

87712373

THROTTLE CONTROL

Throttle Handle

1шт.

12

1342374C1

DISC

Friction Disc

1шт.

13

R14771

WASHER

1шт.

14

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

15

87712376

THROTTLE CONTROL

Control, Throttle

1шт.

16

86976064

JAM NUT,Jam, 1/4"-28, G5

3шт.

17

86509309

NUT,1/4"-28, G5

2шт.

18

186905A1

BUSHING

1шт.

19

187035A2

SLEEVE

1шт.

20

87612749

BOLT,Hex, M12 x 60mm, Cl 10.9

1шт.

21

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

22

87650094

ROD

Rod, Foot Throttle

1шт.

23

87424095

SLEEVE

1шт.

24

87416539

TORSION SPRING

1шт.

25

323657A1

PAD

1шт.

26

87725977

PEDAL

Pedal, Foot Throttle; Replaces 87650090

1шт.

27

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

28

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

29

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

30

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

31

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

32

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

33

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

If Used

1шт.

33

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

34

87352559

SPACER,13.10mm ID x 15.90mm OD x 6.4mm L

Spacer Door Lock

1шт.

35

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

36

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 38
