Запчасти Case IH 420CT (02-31) - OIL PUMP PIPING (87546691) (02) - ENGINE

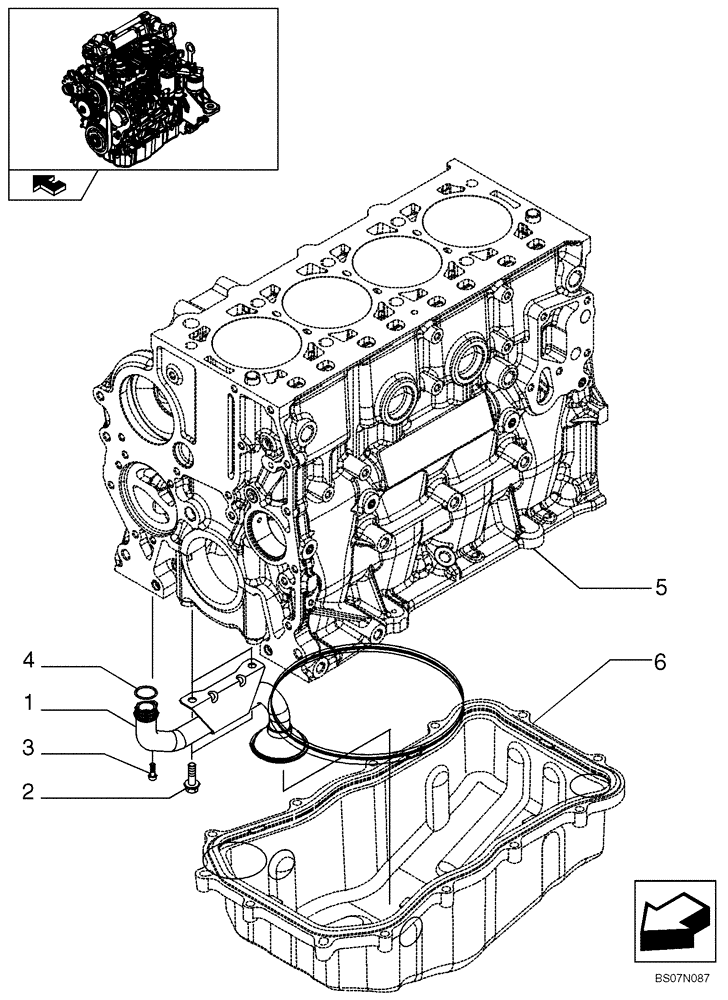

Схема запчастей Case IH 420CT - (02-31) - OIL PUMP PIPING (87546691) (02) - ENGINE
1
2
3
4
5
6

Артикул

Название

Примечание

Количество

1

504179050

FILTER STRAINER

1шт.

2

16586225

BOLT,M8 x 16mm

2шт.

3

16689024

SCREW,M16 x 12mm

1шт.

4

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

D. 23,4 mm SP=2,6 mm

1шт.

5

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.

6

REF

INSTRUCTION

See Figure 02-12, Oill Sump And Related Parts

1шт.

Выбрано товаров: 6
