Запчасти Case IH 420CT (09-14B[02]) - CHASSIS (420CT) ASN NAM414491 (09) - CHASSIS

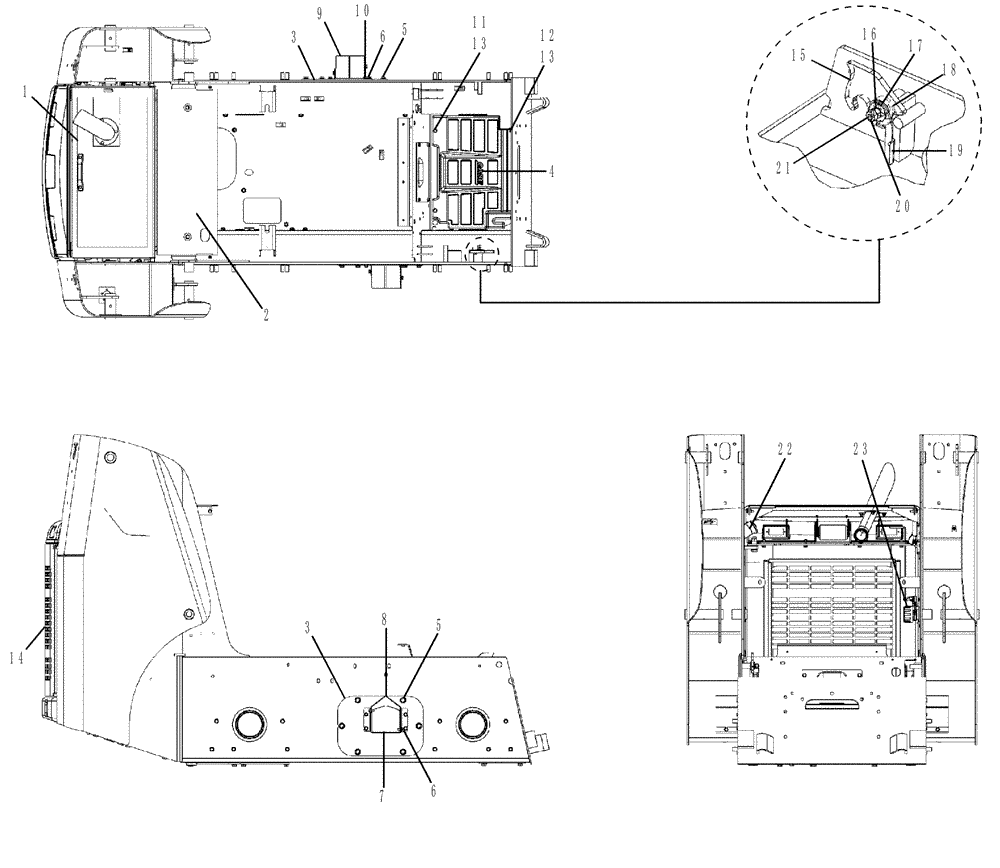

Схема запчастей Case IH 420CT - (09-14B[02]) - CHASSIS (420CT) ASN NAM414491 (09) - CHASSIS
22
6
1
12
6
13
19
13
23
16
15
8
9
20
5
4
3
14
21
7
5
11
10
17
2
3
18

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Rear Hood; See Figs. 9-20

1шт.

2

87743317

HEAT SHIELD

Panel, Heat Shield Extension

1шт.

3

87368768

COVER

Plate

2шт.

4

87705430

FLOOR MAT

Composite Floor Plate

1шт.

5

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

6

9840344

BOLT,Hex, 5/16" - 18 x 11/16"

4шт.

7

87368770

GUARD

1шт.

8

87368771

GUARD

Hose, Upper Right

1шт.

9

87368772

GUARD

Hose, Lower Left

1шт.

10

87368773

GUARD

Hose, Upper Left

1шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

12

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

1шт.

13

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

3шт.

14

REF

INSTRUCTION

Standard Rear Door; See Fig 09-22

1шт.

14

REF

INSTRUCTION

Louvered Rear Door, Europe; See Fig 09-23

1шт.

15

390516A3

LATCH

ROPS Latch Plate

1шт.

16

278332A1

SPRING WASHER

1шт.

17

294967A1

WASHER

1шт.

18

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

19

294911A2

HOOK

Latch Return Plate

1шт.

20

86500689

NUT,M10 x 1.5, Cl 10

2шт.

21

294943A1

STUD

Latch Mounting Stud

1шт.

22

H436887

CAP

Fuel Cap, Non Locking

1шт.

22

108925A1

FILLER CAP

Fuel Cap, Locking; Incl 2 Keys

1шт.

23

257448A1

CAP

Hydraulic Fill Cap

1шт.

Выбрано товаров: 25
