Запчасти Case IH 420CT (09-14B[01]) - CHASSIS (420CT) BSN NAM414490 (09) - CHASSIS

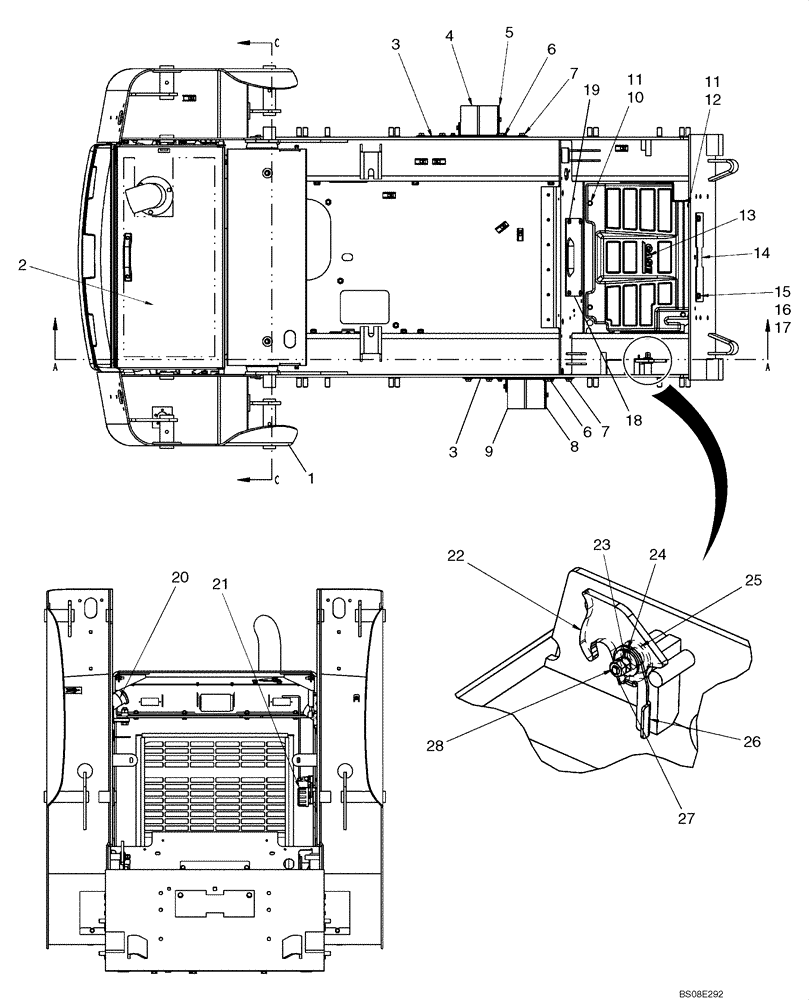

Схема запчастей Case IH 420CT - (09-14B[01]) - CHASSIS (420CT) BSN NAM414490 (09) - CHASSIS
26
21
20
22
10
24
6
15
5
25
1
18
28
3
16
6
23
13
4
27
14
2
11
8
17
19
11
3
7
12
7
9

Артикул

Название

Примечание

Количество

1

87617044

SERVICE KIT

Kit, Chassis; Incl Main Frame, Fuel Cap, Hydraulic Cap, Fuel Level Sender And Gasket

1шт.

2

REF

INSTRUCTION

Rear Hood; See Fig 09-20

1шт.

3

87368768

COVER

Cover, RH

2шт.

4

87368772

GUARD

Lower Left Hose Guard

1шт.

5

87368773

GUARD

Upper Left Hose Guard

1шт.

6

9840344

BOLT,Hex, 5/16" - 18 x 11/16"

12шт.

7

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

8

87368771

GUARD

Upper Right Hose Guard

1шт.

9

87368770

GUARD

1шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2-3шт.

11

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

3-4шт.

12

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

If Used

1шт.

12

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

1шт.

13

87705430

FLOOR MAT

Composite Floor Plate

1шт.

14

87461248

PLATE

Front Cover Plate

1шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

16

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

17

86512554

NUT,M10 x 1.5, Cl 10

2шт.

18

87430679

PLATE

1шт.

19

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

4шт.

20

H436887

CAP

Fuel Cap, Non Locking

1шт.

20

108925A1

FILLER CAP

Fuel Cap, Locking; Incl 2 Keys

1шт.

21

257448A1

CAP

Hydraulic Fill Cap

1шт.

22

390516A3

LATCH

ROPS Latch

1шт.

23

278332A1

SPRING WASHER

1шт.

24

294967A1

WASHER

Washer, Latch Mounting

1шт.

25

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

26

294911A2

HOOK

Latch Return Plate

1шт.

27

86500689

NUT,M10 x 1.5, Cl 10

2шт.

28

294943A1

STUD

Latch Mounting Stud

1шт.
