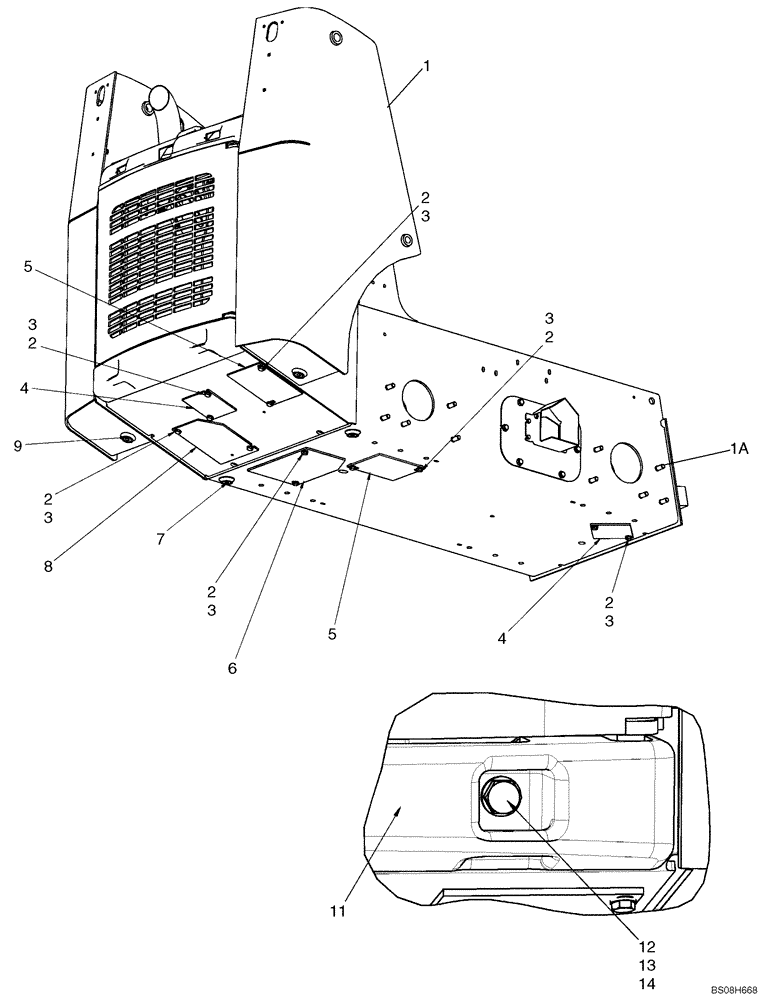

Запчасти Case IH 420CT (09-14A[01]) - CHASSIS (420CT) BSN NAM414490 (09) - CHASSIS

1

87617044

SERVICE KIT

Kit, Chassis; Incl Main Frame, Fuel Cap, Hydraulic Cap, Fuel Level Sender And Gasket

1шт.

1a

254799A1

STUD

M16x45; Studs For Axle Mounting

20шт.

2

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

12шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

4

H436914

LARGE PLATE

PLATE, LARGE

2шт.

5

87458642

PLATE

Plumbing Access Cover

2шт.

6

87648094

PLATE

Oil Drain Cover

1шт.

7

86625135

PLUG,1" - 11-1/2 NPT

2шт.

8

87666074

COVER PLATE

Plumbing Access Cover

1шт.

9

87432221

PLUG

2шт.

10

REF

INSTRUCTION

Standard Rear Door; See Fig 09-22

1шт.

10

REF

INSTRUCTION

Louvered Rear Door, Europe; See Fig 09-23

1шт.

11

87626717

COUNTERWEIGHT

1шт.

12

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

2шт.

13

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

2шт.

14

86536985

NUT,M20 x 2.5, Cl 10

2шт.
