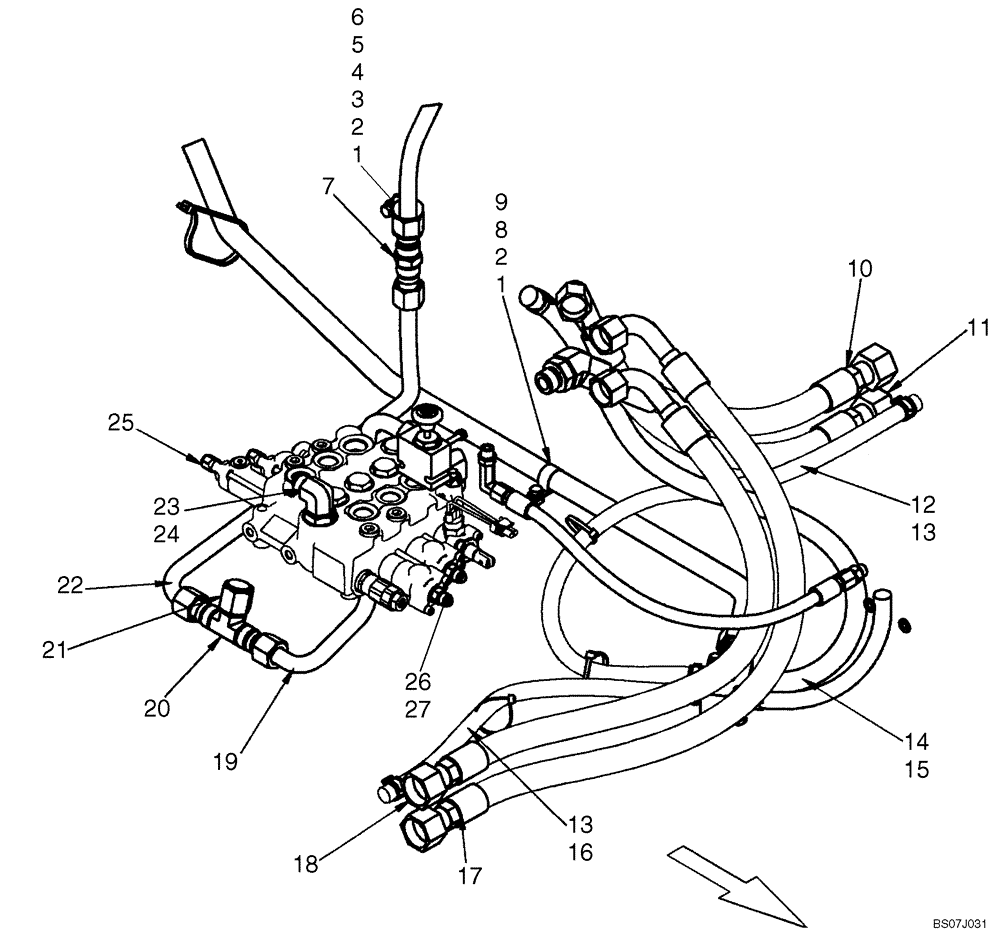

Запчасти Case IH 420CT (06-11) - HYDROSTATICS - PUMP TO DRIVE MOTORS (420CT WITH PILOT CONTROL) (06) - POWER TRAIN

1

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

2

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

4шт.

3

87042897

SPACER

1шт.

4

87301359

CLAMP,28.6mm, 10.3mm Bolt Hole, P Type

1шт.

5

87445136

HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L

1шт.

6

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

7

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

8

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

10

87583069

HYDRAULIC HOSE,19.05 mm ID x 385.00 mm, SAE J517, 100R13

If Used

1шт.

10

87547067

HOSE,19.05mm ID x 930mm L

930mm (36.61in)

1шт.

11

87583070

HOSE,19.05mm ID x 500mm L, SAE 100R13

500mm (19 11/16 in); If Used

1шт.

11

87547065

HOSE,19.05mm ID x 609mm L

609mm (23.98in)

1шт.

12

87369082

HOSE

Case Drain Hose, LH, 808mm (31 13/16 in)

1шт.

13

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

6шт.

14

87357018

HOSE ASSY.

790mm (31 1/8 in); If Used

1шт.

14

87563997

HOSE,15.88 mm ID x 810.00 mm

1шт.

15

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

16

87583073

HYDRAULIC HOSE,12.70 mm ID x 650.00 mm

1шт.

17

87583072

HOSE

1025mm (40 3/8 in.)

1шт.

18

87583071

HOSE

950mm (37 3/8 in.); If Used

1шт.

18

87547066

HOSE,19.05mm ID x 370mm L

970mm (38.19in)

1шт.

19

87446248

HYD TUBE,19.05 mm OD x 344.1, 215.2 mm L

Valve To Filter

1шт.

20

15694

TEE,1 1/16"-12 37 Degree

1шт.

21

219606

CAP,1-1/16" - 12 JIC

1шт.

22

87445138

HYD TUBE,19.05 mm OD

Valve To Filter

1шт.

23

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 24

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

87575684

HYD CONNECTOR

2шт.

26

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 27

2шт.

27

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.
