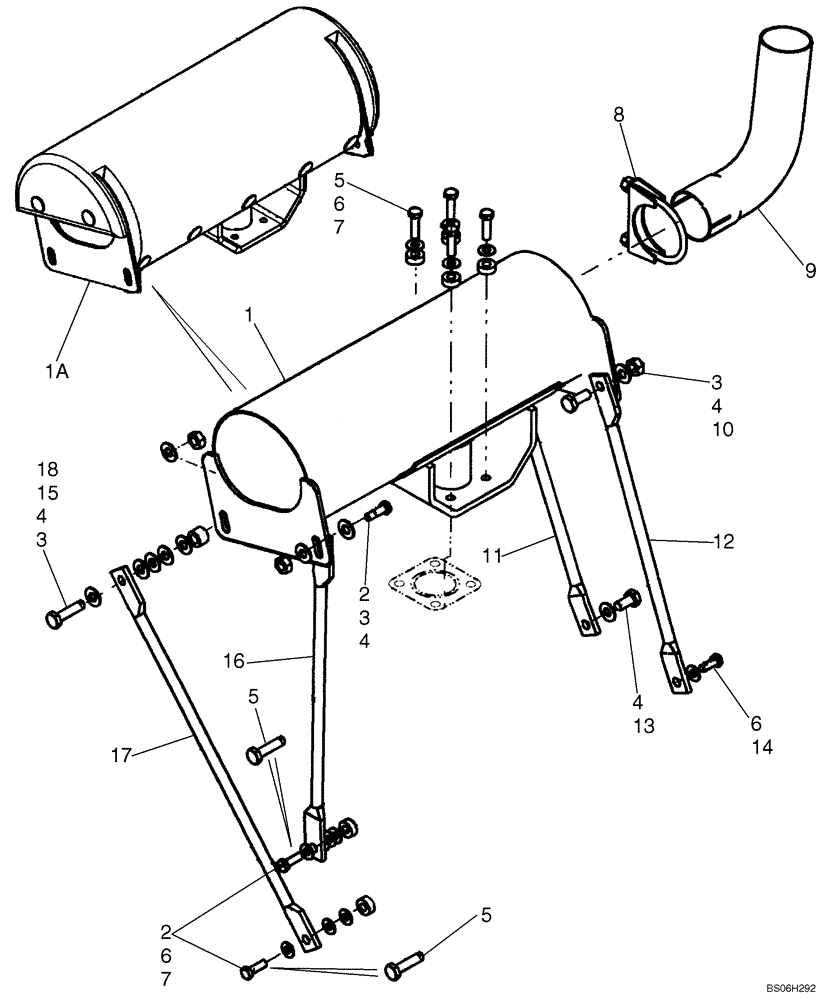

Запчасти Case IH 420CT (02-03A) - EXHAUST SYSTEM, IF USED (SEE REF 16, 17) (02) - ENGINE

1

87462107

MUFFLER

1шт.

1a

87356837

GUARD

Muffler And Wrap Assy; European Models, If Used; Incl. 87356487 Wrap, 87462107 Muffler; Not Illustrated Separately

1шт.

87356487

GUARD

Muffler Wrap

1шт.

1a

87588085

FOAM

Muffler Wrap; Noise Reduction; Europe, If Used; Use 9 Twist Ties 87393399 To Secure

1шт.

1b

87393399

SPRING

Twist Ties; 9 in; Not Illustrated Separately

9шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

3

100016

NUT,M10 x 1.5, Cl 8

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

5

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

6шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

7

86633393

SPACER

11/32 ID X 3/4 OD X 5/16 Thk; If Used

6шт.

7

87606607

SPACER,8.73mm ID x 20.05mm OD x 7.9mm L

If Used

6шт.

8

87461995

CLAMP,68mm ID, Muffler

Muffler

1шт.

9

87045237

EXHAUST SYSTEM PIPE,57.20 mm OD x 146, 170 mm L

Exhaust; If Used

1шт.

9

87592051

EXHAUST SYSTEM PIPE,2.25" OD

Exhaust; If Used

1шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

11

87046588

ROD

Muffler Support

1шт.

12

87046587

ROD

Muffler Support

1шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

15

87042897

SPACER

1шт.

16

87356846

MOUNTING ROD

Muffler Support; 393.3 mm; Center To Center of Holes; Replaces 8704658 (322.5 mm Center To Center of Holes), See Figure 02-03, Ref 8

1шт.

17

87356847

MOUNTING ROD

Muffler Support; 452 mm; Center To Center of Holes; Replaces 87046586 (388 mm Center To Center of Holes), See Figure 02-03, Ref 5

1шт.

18

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

If Used

1шт.

18

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

If Used

1шт.
