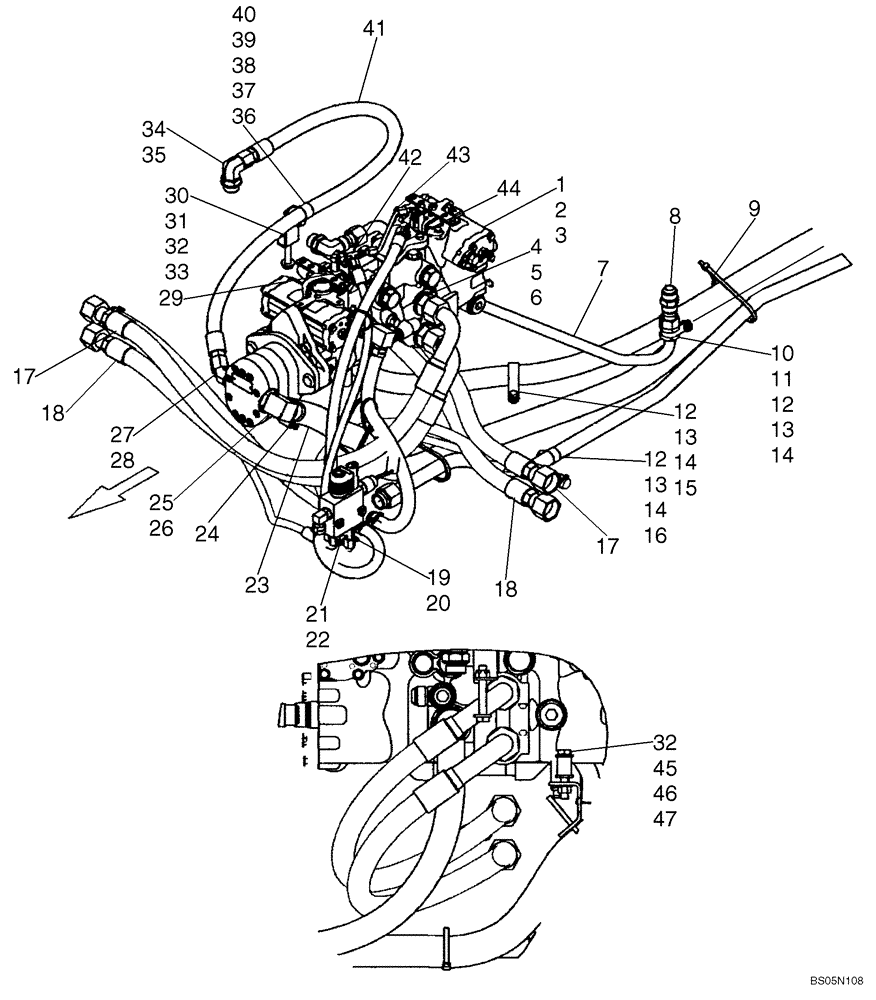

Запчасти Case IH 420CT (06-07C) - HYDROSTATICS - PUMP AND SUPPLY LINES (420CT) (06) - POWER TRAIN

87379204

PUMP

M46 Tandem Pump Sg Gear Pump; Order 1 - 3

1шт.

87379204R

REMAN-HYD PUMP

REMANUFACTURED HYDRAULIC PUMP - for N.A. Only

1шт.

87379204C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

87379205R

REMAN-HYD PUMP

REMANUFACTURED HYDRAULIC PUMP - for N.A. Only

1шт.

87379205C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

1

87381946

Tandem Pump; See Figure 06-10 - 06-15

PUMP

1шт.

2

87037043

PUMP,25.4 CC

Gear Pump; See Figure 06-09

1шт.

3

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

4

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl. 5, 6

4шт.

5

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

7

87445138

HYD TUBE,19.05 mm OD

Valve Out To Filter

1шт.

8

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

10

87445136

HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L

3/4

1шт.

11

87301359

CLAMP,28.6mm, 10.3mm Bolt Hole, P Type

Clamp; 28.6 mm 3/8 Bolt

1шт.

12

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

M8 x 16 x 1.6

3шт.

14

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8 x 1.25

2шт.

15

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

44.4 mm 388 Bolt

1шт.

16

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

(25.4 mm; M8 Bolt)

1шт.

17

87454486

HOSE ASSY.,19.05mm ID x 975mm L

Loop

2шт.

18

87454485

HOSE ASSY.,19.05mm ID x 925mm L

Loop

2шт.

19

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl. 20

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 22

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

87461416

HOSE

Suction

1шт.

24

87039085

HOSE CLAMP,32mm - 54mm

2 in

2шт.

25

86729372

FITTING,90 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

90 deg, 1.25 ID x 1-5/16-12; Incl. 26

1шт.

26

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

27

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 28

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

87441276

HOSE ASSY.

NOR

1шт.

30

87458997

BRACKET

Valve

1шт.

31

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

32

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

1шт.

33

86512554

NUT,M10 x 1.5, Cl 10

1шт.

34

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 35

1шт.

35

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

25.4 mm 3/8 Bolt

1шт.

37

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

38

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

39

86509310

NUT,3/8" - 24, Gr 5

2шт.

40

9628098

NUT,M8 x 1.25, Cl 10

1шт.

41

87021838

HOSE ASSY.

Supply

1шт.

42

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

43

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

44

87459910

HOSE ASSY.

Charge

1шт.

45

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

46

256690A1

SPACER

Hose Clamp

2шт.

47

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.
