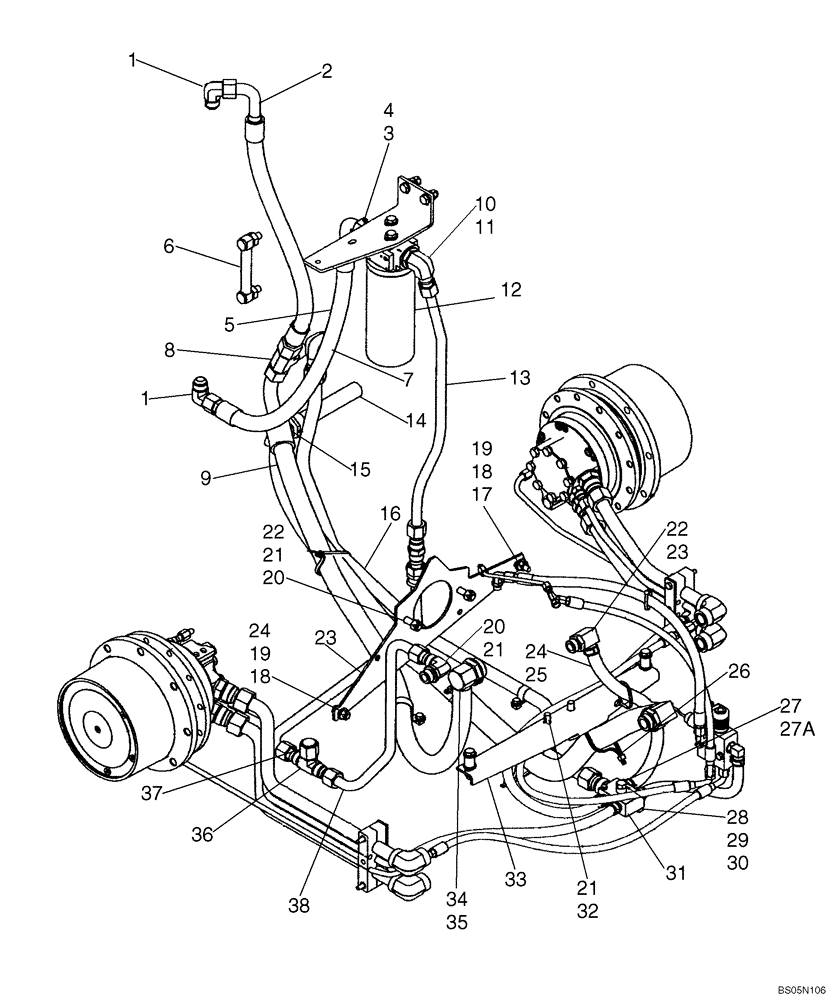

Запчасти Case IH 420CT (06-04A) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (420CT) (06) - POWER TRAIN

1

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

2

87453235

HOSE ASSY.

Oil Cooler

1шт.

3

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Use With Hose 87446945; Incl. 4

1шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

87446945

HOSE ASSY.

Oil Cooler; 700 mm (27.56 in); If Used

1шт.

5a

87641914

HOSE

Oil Cooler Hose; 800 mm (31.5 in); If Used

1шт.

6

87374752

GAUGE

Replaces 87424266

1шт.

7

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

8

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

9

87459983

HOSE

1шт.

10

570024

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl. 11

1-2шт.

11

305412

O-RING 1-11/64 ID x 7/64

2шт.

12

87430661

FILTER

Hydrostatic Filter; For Mounting, See Figure 06-06

1шт.

13

87445139

HYD TUBE,19.05 mm OD

Valve Out To Filter

1шт.

14

H151399

FILTER STRAINER

Suction Line

1шт.

15

87033823

FITTING,1/4" Hose x 1/8" NPTF, Fem, Barbed

Stem 45 Bead Hose; 1.25 ID x 1

1шт.

16

87459957

HYD TUBE,25.4 mm OD x 1052.4, 249.8 mm L

1шт.

17

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

18

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

19

86512554

NUT,M10 x 1.5, Cl 10

2шт.

20

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 21

1шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

Includes Ref. 23

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

87459985

HOSE,15.88 mm ID x 1553.00 mm

1шт.

25

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24.4 mm

2шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

27

76349

PLUG,9/16" - 18 ORB

3/8; Incl. 27A

1шт.

27a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

29

87404992

SQUARE NUT,M6 x 1.0, Cl 8

M6

2шт.

30

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

87437351

MANIFOLD

Return, Oil

1шт.

32

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

25.4 mm 3/8 in Bolt

1шт.

33

87459840

ANGLE

Front Pump Mounting

1шт.

33

87394920

ANGLE

Front Pump Mounting; Replaces 87459840

1шт.

34

87418259

FITTING

90 deg, 20 ORB X 16 Bead

1шт.

35

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

Worm Gear 1.00/1.875

1шт.

36

15694

TEE,1 1/16"-12 37 Degree

1шт.

37

219606

CAP,1-1/16" - 12 JIC

1шт.

38

87446248

HYD TUBE,19.05 mm OD x 344.1, 215.2 mm L

Out To Filter

1шт.
