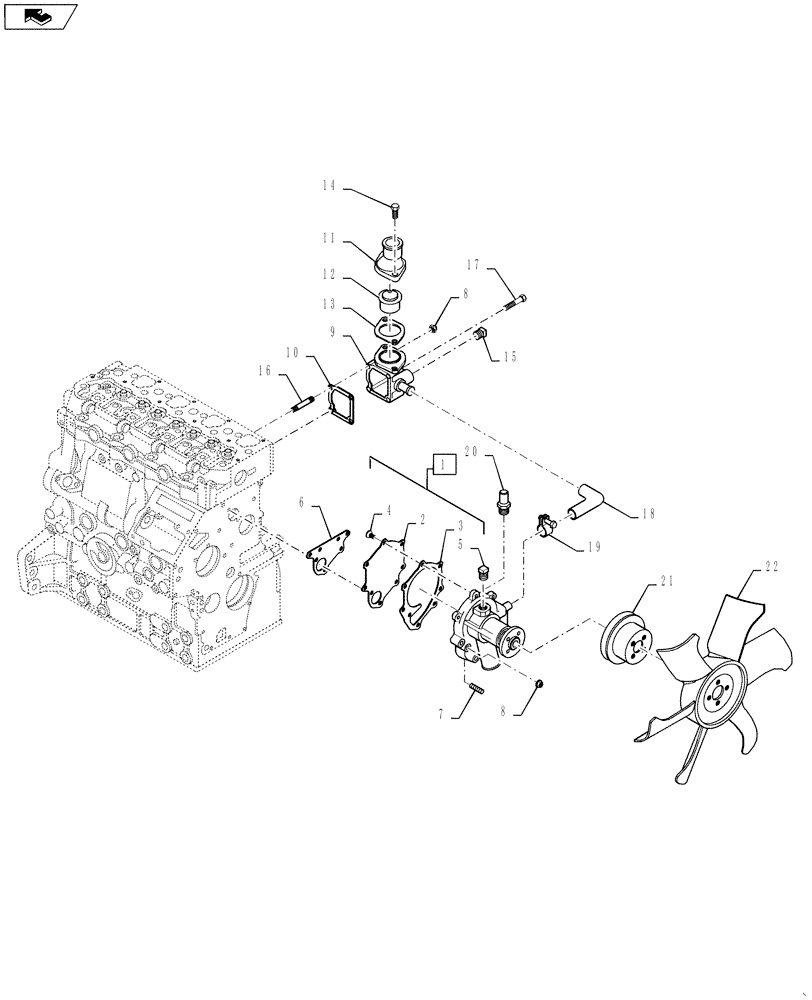

Запчасти Case IH 420CT (02-18) - WATER PUMP (02) - ENGINE

1

SBA145017730

WATER PUMP

Incl. Ref 2 - 5

1шт.

SBA145017730R

REMAN-WATER PUMP

420 BSN N7M466710 (2/05-), 420CT BSN N7M455401 (3/06-12/07)

1шт.

SBA145017730C

CORE-WATER PUMP

Return Number

1шт.

2

SBA145146320

PLATE

Set

1шт.

3

SBA145996680

GASKET

1шт.

4

SBA015300614

SCREW

5шт.

5

SBA064500030

PLUG,3/8"

4шт.

6

SBA145996670

GASKET

1шт.

7

SBA012110635

STUD

4шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

7шт.

9

SBA145216640

HOUSING

Thermostat

1шт.

10

SBA145996710

GASKET

1шт.

11

SBA145226340

COVER

Thermostat

1шт.

12

SBA145206220

THERMOSTAT,71 Degrees C (160 Degrees F)

1.875" OD x 2.2" H

1шт.

13

SBA145996051

GASKET

1шт.

14

SBA010800820

BOLT

2шт.

15

SBA064500030

PLUG,3/8"

3шт.

16

SBA012100655

STUD

2шт.

17

SBA011310655

BOLT,Hex, M6 x 55, Cl 8.8

2шт.

18

SBA145336051

HOSE

1шт.

19

SBA067100022

HOSE CLAMP

2шт.

20

SBA198487870

NIPPLE

1шт.

21

SBA145336620

PULLEY

1шт.

22

SBA145306740

FAN

Cooling

1шт.
