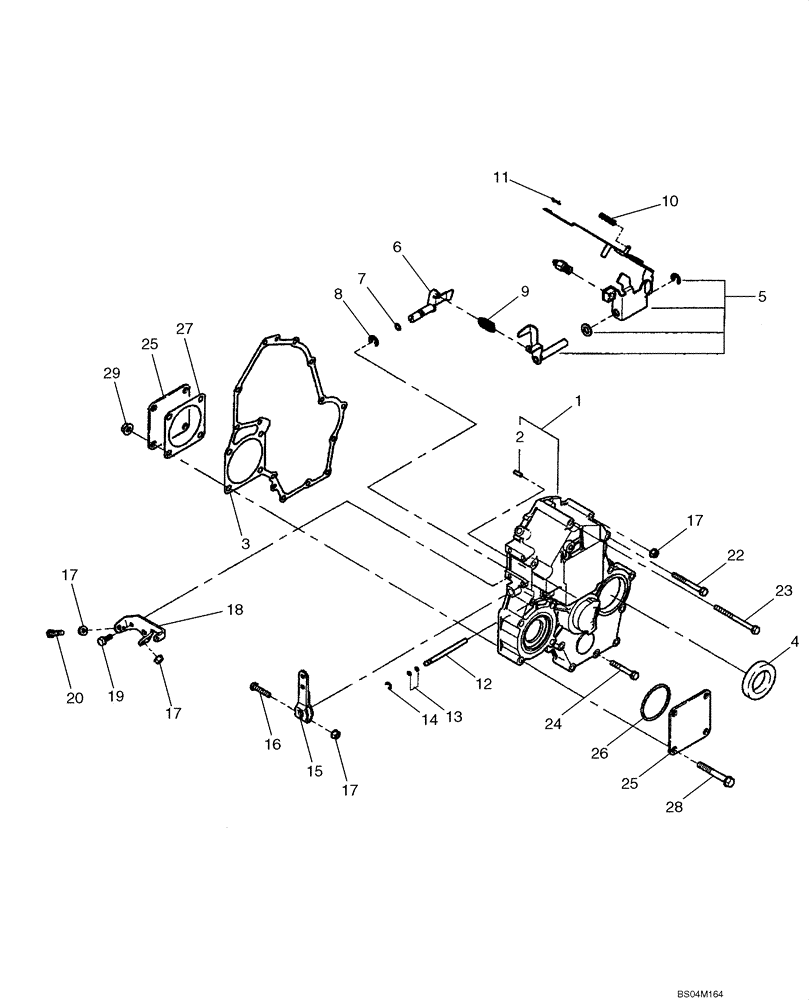

Запчасти Case IH 420CT (02-15) - TIMING GEAR CASE, GOVERNOR (02) - ENGINE

1

SBA165106480

CASE

Timing Gear, Incl. Ref 2

1шт.

2

SBA030300414

PIN

Spring

1шт.

3

SBA165996550

GASKET

1шт.

4

SBA198636160

SEAL,M35 x 55 x 11

Oil

1шт.

5

SBA125046510

LEVER

1шт.

6

SBA125156170

ARM

1шт.

7

SBA052109110

O-RING

1шт.

8

SBA036800008

SNAP RING

2шт.

9

SBA198217380

SPRING

Main

1шт.

10

SBA198217560

SPRING

1шт.

11

SBA031100004

SPRING

Snap

1шт.

12

SBA125116141

ROD

1шт.

13

SBA052109108

O-RING

2шт.

14

SBA036800005

SNAP RING

1шт.

15

SBA125416300

LEVER

Speed

1шт.

16

SBA010110630

BOLT

1шт.

17

SBA02310006

NUT

3шт.

18

SBA125976120

BRACKET

1шт.

19

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

20

SBA010109264

BOLT

2шт.

22

SBA011310660

BOLT

5шт.

23

SBA011310680

BOLT

2шт.

24

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

6шт.

25

SBA165206010

COVER

2шт.

26

SBA052300600

O-RING,G60

1шт.

27

SBA165996110

GASKET

1шт.

28

SBA010310865

BOLT

4шт.

29

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.
