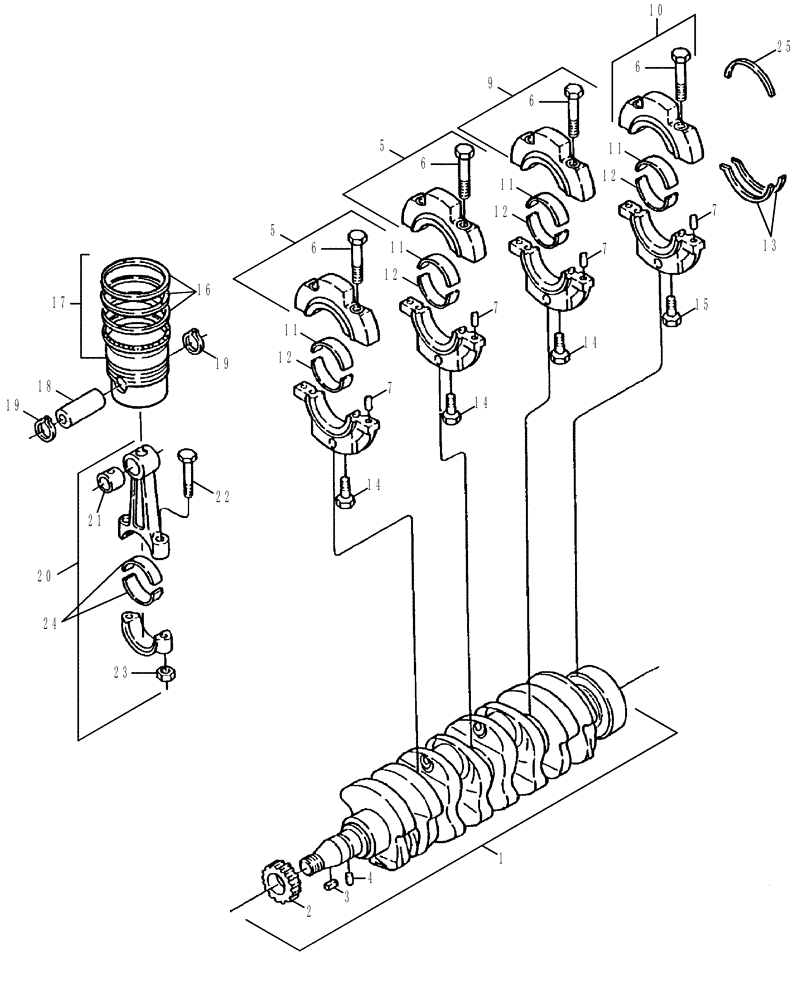

Запчасти Case IH 420CT (02-12) - CRANKSHAFT & PISTONS (02) - ENGINE

1

SBA115256750

CRANKSHAFT

1шт.

1

SBA115256751R

Includes Rod and Main Bearings

REMAN-CRANKSHAFT

1шт.

1

SBA115256751C

Return Number

CORE-CRANKSHAFT

1шт.

2

SBA115276200

GEAR

Crankshaft

1шт.

3

SBA034100508

KEY

1шт.

4

SBA030509020

PIN

Dowel

1шт.

5

SBA110156360

HOLDER

Bearing, Incl. Ref 6, 7

1шт.

6

SBA010109406

BOLT

8шт.

7

SBA030500612

DOWEL

8шт.

8

SBA110156370

BEARING CAP

Bearing, Incl. Ref 6, 7

1шт.

9

SBA110156380

BEARING CAP

Bearing, Incl. Ref 6, 7

1шт.

10

SBA110156390

BEARING CAP

Bearing

1шт.

11

SBA198517231

BEARING

Upper, Std.

4шт.

11

SBA198517236

BEARING LINER,.010" U/S, Upper

(0.25mm)

4шт.

11

SBA198517239

BEARING LINER,.020" U/S, Upper

(0.50mm)

4шт.

12

SBA198517241

BEARING

Lower, Std.

4шт.

12

SBA198517246

BEARING LINER,.010" U/S, Lower

(0.25mm)

4шт.

12

SBA198517249

BEARING LINER,.020" U/S, Lower

(0.50mm)

4шт.

13

SBA199266200

THRUST WASHER

2шт.

14

SBA011511070

BOLT,M10 x 70

3шт.

15

SBA010700860

BOLT

2шт.

16

SBA115104020

PISTON RINGS KIT

4шт.

16

SBA115104021

PISTON RINGS KIT

Kit, Piston Rings; Replaces SBA115104020

4шт.

17

SBA115017580

PISTON ASSY

4шт.

17

SBA115017581

PISTON & RINGS KIT

Piston Assy; Replaces SBA115017581

4шт.

18

SBA115326220

PISTON PIN,33mm OD

4шт.

19

SBA036500028

SNAP RING

8шт.

20

SBA115026330

CONNECTING ROD

4шт.

SBA115026330R

REMAN-CONNECTING ROD

420 BSN N7M466710 (2/05), 420CT BSN N7M455401 (3/06)

4шт.

SBA115026330C

CORE-ROD CONNECTING

Return Number

1шт.

21

SBA198517260

BUSHING

4шт.

22

SBA115176140

BOLT

Connecting Rod

8шт.

23

SBA020109120

NUT

8шт.

24

SBA198517251

BEARING

8шт.

25

SBA199266210

THRUST WASHER

1шт.
