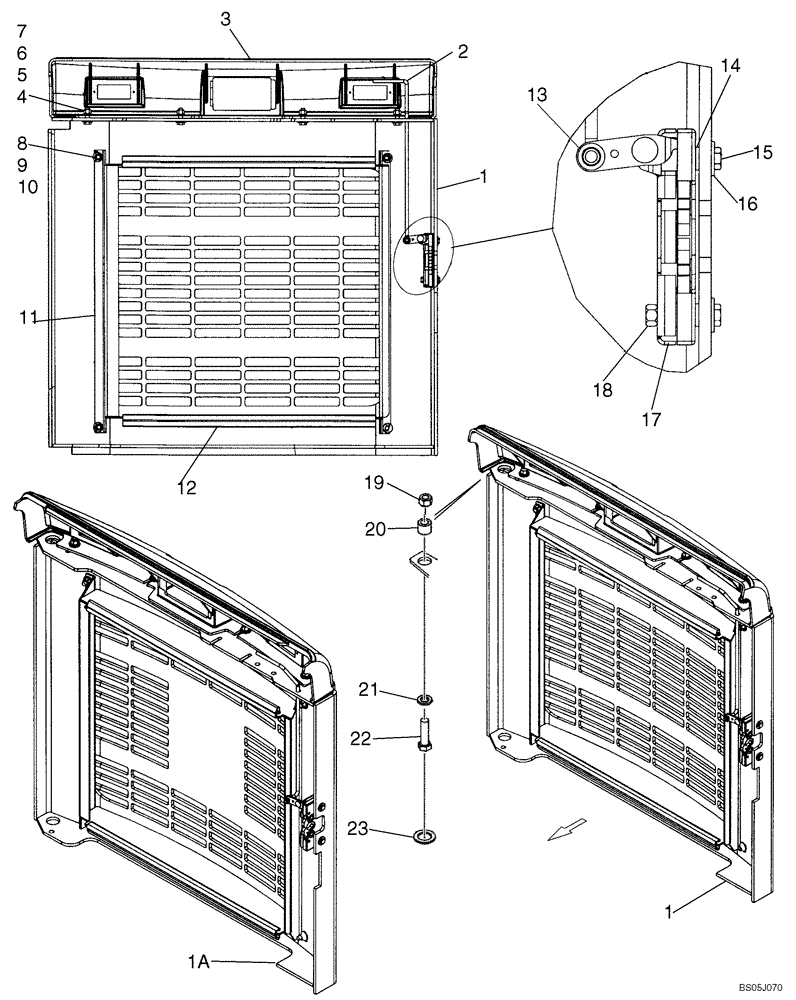

Запчасти Case IH 420CT (09-17) - DOOR, REAR (09) - CHASSIS

1

87459205

DOOR

Rear; Perforated Center

1шт.

1a

87353693

DOOR

Rear Door; Europe; If Used; Solid Center

1шт.

2

87440124

ROD

Latch Pull

1шт.

3

87436507

LIGHT FAIRING

Rear Door; If Used

1шт.

3

87461604

LIGHT FAIRING

Rear Door; If Used

1шт.

4

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

5

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

Ext Tooth, M8

4шт.

6

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

M8 x 21.5 x 2.5, HT

8шт.

7

412250

NUT,M8 x 1.25, Cl 8

4шт.

8

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

Replaces 86507486 (M8 x 20)

4шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

10

832-41408

NUT,M8 x 1.25, Cl 10

M8

4шт.

11

87045211

FRAME ASSY

Rear Door Enclosure

1шт.

12

87021305

RUBBER SEAL,526mm L

2шт.

13

380751A1

NUT

1шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

16

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

17

87437076

LATCH

1шт.

18

87030561

NUT,M6 x 1, Cl 8

M6 x 1, Cl 8

2шт.

19

832-41416

NUT,M16 x 2, Cl 10

1шт.

20

248461A1

BUSHING,16.5mm ID x 24mm OD x 22mm L

Door Hinge

1шт.

21

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

M16 x 30.5 x 4, HT

1шт.

22

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

1шт.

23

248988A1

THRUST WASHER

Rear Door Thrust

1шт.
