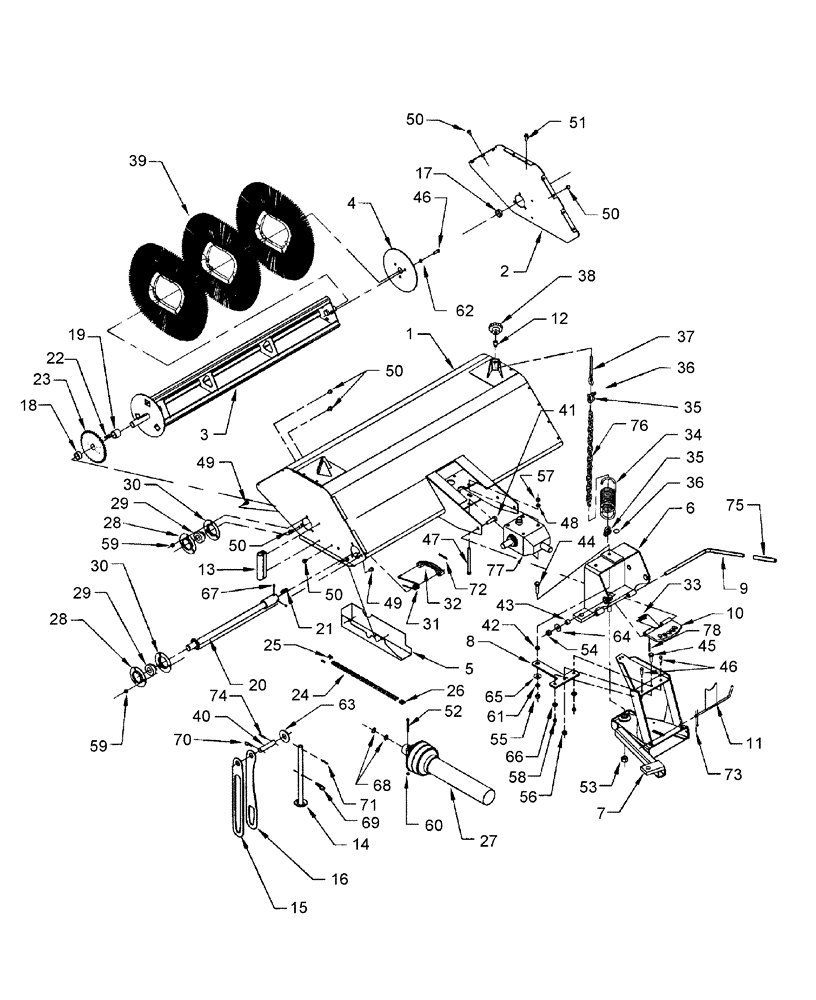

Запчасти Case IH BRX147 (100) - BRX147, BR147 47" ROTARY BROOM

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

CSE666842

PLATE

RH

1шт.

2

CSE667841

PLATE

RH

1шт.

USED ON & ABOVE SN RAD013522

1шт.

3

BER666640

SUPPORT

Brush

1шт.

3

BER669113

SUPPORT

Brush

1шт.

Used On & ASN RAD013538

1шт.

4

BER665650

PLATE

Retaining

1шт.

4

BER669133

RETAINING PLATE

Retaining

1шт.

Used On & ASN RAD013538

1шт.

5

BER666845

GUARD

Chain

1шт.

6

CSE666852

BRACKET, PIVOT

PIVOT BRACKET Pivot

1шт.

7

CSE666855

HITCH

Female

1шт.

8

BER661009

COUPLING

Upper

1шт.

9

BER663640

HANDLE GRIP

1шт.

10

BER659641

ADJUSTING PLATE

1шт.

11

BER658952

SUPPORT

Driveline

1шт.

11

CSE666979

SUPPORT

Driveline

1шт.

USED ON & ABOVE SN RAD013522

1шт.

12

BER666844

TUBE

Wear

2шт.

13

CSE659784

BRACKET

Parking Stand

2шт.

14

BER666907

STAND

Parking

2шт.

15

BER666910

STOP

Straight

1шт.

16

BER666911

STOP

1шт.

17

BER666906

RING

11/32"

1шт.

18

BER666905

RING

17/32"

1шт.

19

BER666904

RING

1 -1/16"

1шт.

20

BER666631

DRIVE SHAFT

1шт.

21

86628576

KEY

1/4" x 1/4" x 1 -1/4"

1шт.

22

87477

KEY

1/4" x 1/4" x 1"

1шт.

23

BER657405

DRIVING SPROCKET

40B36

1шт.

24

BER661558

CHAIN

#40, Includes: Ref. 25 & 26

1шт.

24

BER3300011

CHAIN

#40, Includes: Ref. 25

1шт.

USED ON & ABOVE SN RAD013522

1шт.

25

BER656153

LINK CHAIN

Connecting, #40

1шт.

26

BER654841

LINK

Half #40

1шт.

27

BER4700028

DRIVE

Female half

1шт.

28

BER4300031

FLANGE

w/ grease fitting

3шт.

29

BER4300038

BEARING

1" dia. w/ screw

3шт.

30

BER4300030

FLANGE

3шт.

31

BER3800016

TORSION SPRING

1шт.

32

BER665960

TENSIONER

Chain

1шт.

33

BER657989

ROLL PIN

Torsion

1шт.

34

BER660220

SPRING

Tension

2шт.

35

BERA10368

SHACKLE

1/4" x 7/16"

4шт.

36

BER1900009

PIN, SPLIT (COTTER)

PIN, COTTER Cotter, 1" x 1/16"

4шт.

37

BER663074

BOLT

Eye, 5/16" x 6", w/ Nut

2шт.

38

BER657309

KNOB

5/16"

2шт.

39

BERBR0001

BRUSH, COMMUTATOR

BRUSH 100% Polypropylene, 18"

1шт.

39

BERBR0002

BRUSH, COMMUTATOR

BRUSH 50% Polypropylene / 50% Steel, 18" (10 Metal & 11 Plastic Brushes)

1шт.

39

BERBR0003

BRUSH, COMMUTATOR

BRUSH 100% Steel, 18"

1шт.

40

BER4600019

PIN, SPLIT (COTTER)

PIN, COTTER Stopper

2шт.

41

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -3/4", GR5

2шт.

42

BER658528

BUSHING

Upper

1шт.

43

BER658532

BUSHING

Pivot

2шт.

44

PL

PROCURE LOCALLY

Bolt, Hex, 7/16" x 1 -3/4", GR5

1шт.

45

PL

PROCURE LOCALLY

Bolt, Hex, 7/16" x 1 -1/4", GR5

1шт.

46

PL

PROCURE LOCALLY

Bolt, Hex, 5/16" x 1-1/4", GR5

3шт.

46

PL

PROCURE LOCALLY

Hex Bolt, 5/16" x 1" Long, GR5

3шт.

Used On & ASN RAD013538

1шт.

47

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 5", GR5

4шт.

48

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

4шт.

49

BER0300002

CARRIAGE BOLT

5/16" x 3/4", GR5

9шт.

50

BER0200065

BOLT

Flange, 5/16" x 1/2", GR2

13шт.

51

PL

PROCURE LOCALLY

Bolt, Flange, 5/16" x 1", GR2

2шт.

0200091

1шт.

52

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 2 -1/2", GR5

1шт.

53

BER1100007

NUT

Stover, 5/8"

1шт.

54

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1/2"

2шт.

55

PL

PROCURE LOCALLY

Nut, Hex, 7/16"

1шт.

56

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 7/16"

1шт.

57

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

4шт.

58

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 5/16"

2шт.

59

BER0900036

NUT

Flange, 5/16"

9шт.

60

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1/4"

1шт.

61

PL

PROCURE LOCALLY

Washer, Lock, 7/16"

1шт.

62

PL

PROCURE LOCALLY

Washer, Lock, 5/16"

2шт.

63

PL

PROCURE LOCALLY

Washer, Flat, 13/16"

4шт.

64

PL

PROCURE LOCALLY

Washer, Flat, 9/16"

2шт.

65

PL

PROCURE LOCALLY

Washer, Flat, 1/2"

1шт.

66

PL

PROCURE LOCALLY

Washer, Flat, 3/8"

2шт.

67

PL

PROCURE LOCALLY

Screw, Set, 5/16" x 1/4"

2шт.

0500008

1шт.

68

BER655087

RING

Snap, External

2шт.

69

BER1800002

PIN

Hair, 5/32" x 3 -5/32"

2шт.

70

BER1800004

COTTER PIN

1/8" x 2 -9/16"

2шт.

71

BER1500007

PIN, SPLIT (COTTER)

PIN, COTTER 5/32" x 1 -1/4"

2шт.

72

BER1500019

PIN, SPLIT (COTTER)

PIN, COTTER 1/8" x 1 -3/4"

1шт.

73

BER1500001

PIN, SPLIT (COTTER)

PIN, COTTER 3/32" x 3/4"

2шт.

74

BER1600008

PIN

Spring, 3/16" x 1 -1/2"

2шт.

75

BER656797

HANDLE GRIP

1шт.

76

BER666881

CHAIN (AG)

25 -1/2"

2шт.

77

BER4500022

GEARBOX ASSY

1шт.

78

BER1600006

PIN

3/16" x 1 -1/2"

1шт.
