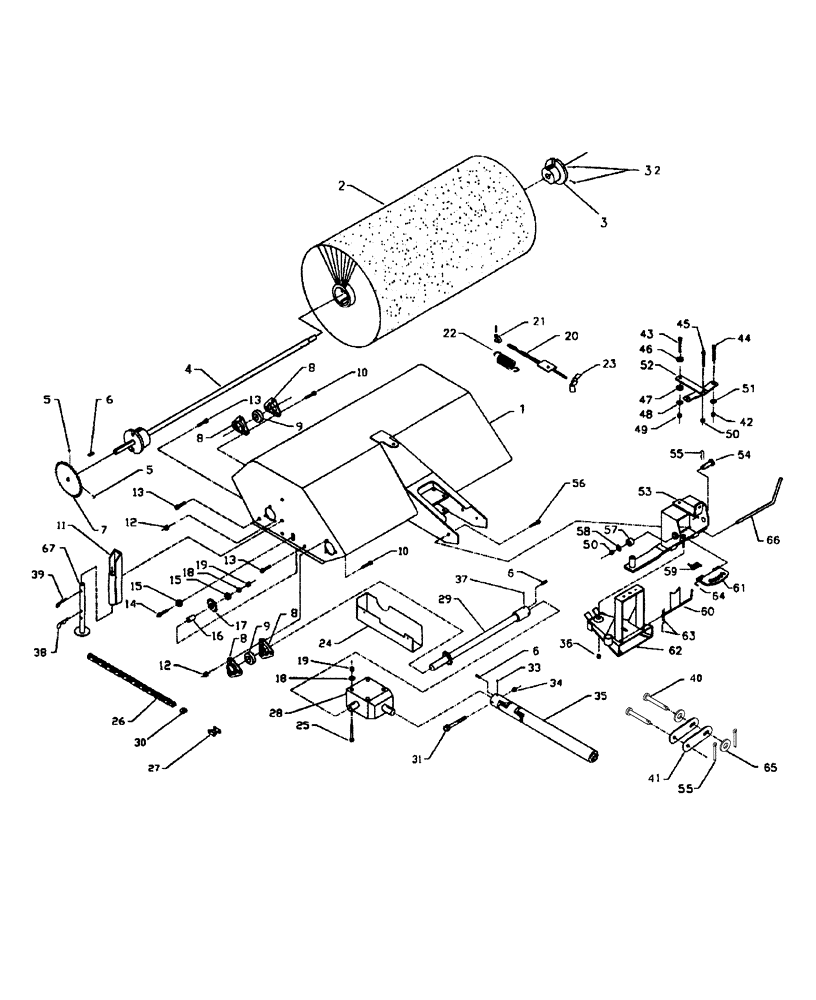

Запчасти Case IH BR172 (300) - BRX172 ROTARY BROOM (00) - COMPLETE MACHINE

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

BER9416

BRUSH

100% Nylon

1шт.

2

BER9418

BRUSH

50% Steel/ 50% Nylon

1шт.

3

BER663674

PLUG

Brush Support

1шт.

4

BER662114

SHAFT

Brush Drive

1шт.

5

PL

PROCURE LOCALLY

Setscrew, 5/16" x 3/4"

2шт.

0500013

1шт.

6

86628576

KEY

1/4" x 1/4" x 1 -1/4"

3шт.

7

BER655425

DRIVING SPROCKET

50B40 - 1 1/4" Hole

1шт.

8

BER657893

FLANGE

Bearing

6шт.

9

BER654710

BEARING

w/ Setscrew

3шт.

10

BER0300007

BOLT

Carriage, 3/8" x 3/4" GR5

9шт.

11

CSE659819

SUPPORT

Parking Stand

1шт.

12

BER0900035

NUT

Serrated Flange, 3/8"

9шт.

13

BER0200065

BOLT

Serrated Flange, 5/16" x 1/2" GR5

8шт.

14

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 2 -1/2" GR5

1шт.

15

PL

PROCURE LOCALLY

Washer, Flat, 3/8" I.D.

2шт.

16

BER663719

SPACER

Idler

1шт.

17

BER663709

SPROCKET

Idler

1шт.

18

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

5шт.

19

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

5шт.

20

BER661688

CHAIN

Spring Tension

1шт.

21

BER663963

CLEVIS

3шт.

22

BER660220

SPRING

Down Pressure Adjustment

1шт.

23

BER659828

HANDLE

Ground Adjustment

1шт.

24

BER661587

GUARD

Chain

1шт.

25

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 5 -1/2" GR5

4шт.

26

BER661666

CHAIN

#50 x 72 Links, Includes: Ref. 30

1шт.

27

BER654840

HALF-LINK

#50

1шт.

28

BER661575

GEARBOX

1шт.

29

BER662113

SHAFT

Drive

1шт.

30

BER655837

LINK CHAIN

Connecting, #50

1шт.

31

PL

PROCURE LOCALLY

Bolt, Hex, 5/16" x 2 -1/2"

1шт.

32

PL

PROCURE LOCALLY

Setscrew, 5/16" x 1/2"

2шт.

0500011

1шт.

33

PL

PROCURE LOCALLY

Setscrew, 3/8" x 1/2"

1шт.

34

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 5/16"

1шт.

35

BER660242

REAR PTO ASSY

Female Half

1шт.

36

PL

PROCURE LOCALLY

Nut, Stover, 3/4"

1шт.

37

PL

PROCURE LOCALLY

Setscrew, 5/16" x 5/16"

1шт.

38

BER1800002

PIN

4mm x 80mm

2шт.

39

PL

PROCURE LOCALLY

Pin, Cotter, 5/32" x 1 -1/4"

2шт.

40

BER665151

PIN

3/4" x 3"

2шт.

41

BER666656

TRAVEL LIMITER

2шт.

42

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 3/8"

1шт.

43

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 2"

1шт.

44

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1 -1/2"

2шт.

45

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/2"

1шт.

46

BER659824

BUSHING

Upper

1шт.

47

PL

PROCURE LOCALLY

Washer, Flat, 9/16" I.D.

1шт.

48

PL

PROCURE LOCALLY

Washer, Lock, 1/2"

1шт.

49

PL

PROCURE LOCALLY

Nut, Hex, 1/2"

1шт.

50

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1/2"

3шт.

51

PL

PROCURE LOCALLY

Washer, Flat, 7/16" I.D.

2шт.

52

BER660986

COUPLING

Upper

1шт.

53

CSE659821

BRACKET

Pivot

1шт.

54

BER659825

PIN

Stopper, 5/8" x 2 -7/8"

1шт.

55

BER1800004

COTTER PIN

1/8" x 2 -9/16"

3шт.

56

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -3/4"

2шт.

57

BER658532

BUSHING

Pivot

2шт.

58

PL

PROCURE LOCALLY

Washer, Flat, 9/16" I.D.

2шт.

59

BER657989

ROLL PIN

Spring, Torsion 9/16" I.D.

1шт.

60

BER660227

SUPPORT

Driveline

1шт.

61

BER659651

HANDLE

1шт.

62

CSE660985

HITCH

Female

1шт.

63

PL

PROCURE LOCALLY

Pin, Cotter, 1/8" x 3/4"

2шт.

64

PL

PROCURE LOCALLY

Pin, Spring, 3/16" x 1"

1шт.

65

PL

PROCURE LOCALLY

Washer, Flat, 13/16" I.D.

2шт.

66

BER659641

ADJUSTING PLATE

1шт.

67

BER659820

STAND

Parking Stand

2шт.
